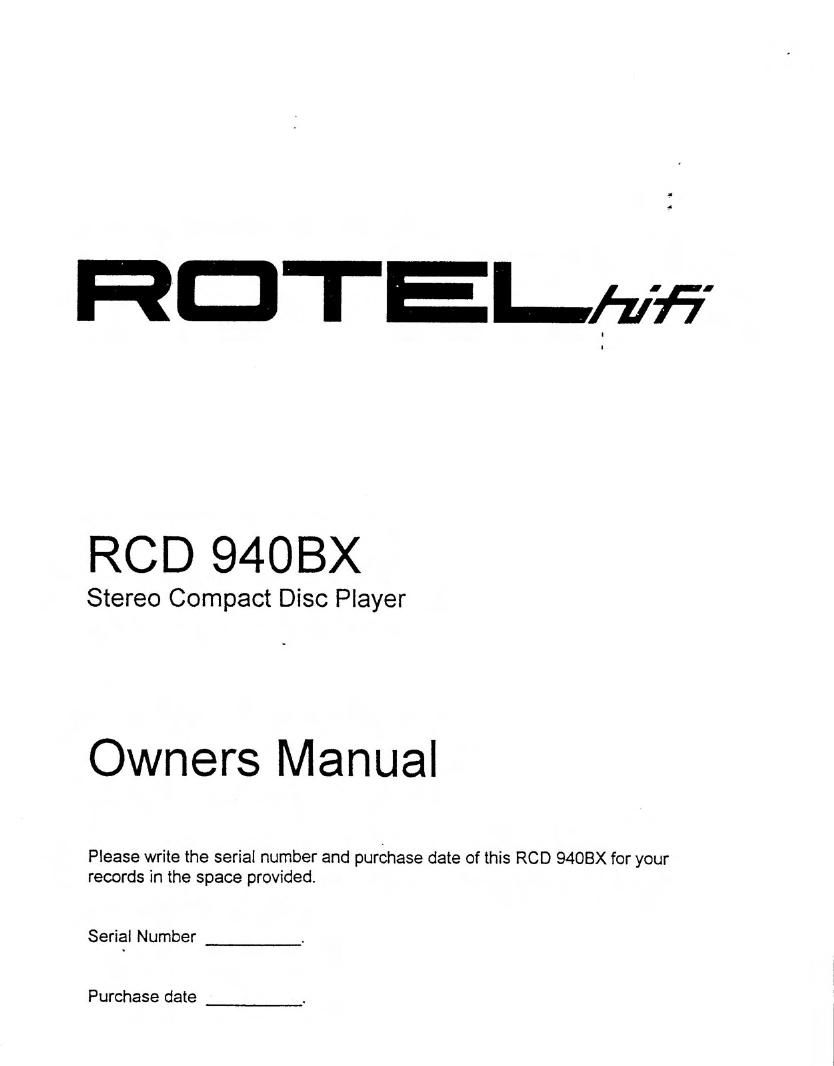

RDTEI-fi/fi'

RCD 94OBX

Stereo Compact Disc Player

Owners Manual

Please write the serial number and purchase date of this RCD 94OBX for your
records in the space provided.

Serial Number

Purchase date

Page 2

RDTI. STEREO CWPACT DtSC PLAYER Roe-sway:

m d i511; our: can: our n:

@ O a nut: ownsumuc :IBBLQEEE ~ m _.
E:

var/u: luv- ml nus" um-

mm W m mm A

Please refer to this drawing of the Front Panel when reading the section about Controls and the Display
on the RCD 94OBX.

CONTROLS ON THIS CD PLAYER

The POWER button will turn the CD player ON and OFF. Push it in and the RCD 94OBX will
turn ON. The POWER INDICATOR and the DISPLAY will illuminate at the same time. If you
push the Power button again the power will go OFF and the Power Indicator and the Display
will extinguish.

The OPEN/CLOSE, PLAY, STOP. PAUSE AND TRACK buttons are underneath the Display.
The PROGRAM, CLEAR, REPEAT, TIME, and SEARCH buttons are to the right of the
Display. We have attempted to make the most used controls be the easiest to find.

The Display panel includes the REMOTE SENSOR for receiving the Infra Red signals from the
REMOTE CONTROL HANDSET. Please be certain not to block this as the Remote Control
Handset will not function if this is covered or blocked.

The Display on the RCD 94OBX will normally show a " D " when there is no disc in the
machine.

The Open/Close button will Open the Drawer after you have pushed it. A second push of the
button will Close the Drawer. Pressing the PLAY button while the drawer is open will cause the
drawer to close and will start Play. Display Panel show " > " during play mode. You may pre

select a track number before pressing Play and the CD player will begin play with the selected
track number.

The STOP button will stop all functions and the Display Panel will show track " ,' when a disc
IS in the drawer. (Press Time button will appear the Total Time Playing of the disc.)

Pressing the PAUSE button will make the CD player stay in the same place on the CD and the

CD will still spin. No sound will be heard until you press the Pause button again. " u " illuminate
on the display during PAUSE mode.

The .TRAC'K buttons (l<<, >>I) will advance to the next Track (>>I) or will go back to the
prevrous Track (l<<) on the disc. If you are in the middle of a song and you press the l<< Track
button once. the player will begin the same song again. If you press it twice, quickly. it will play
the prevrous song on the disc. If you are in Pause and you press the l<< Track button once it
WI" proceed to the previous track and wait for you to release the Pause function. Pressing the
>>I Track button will cause the CD player to skip to the next track on the disc.

The PROGRAM button will be used when you Program songs on the disc for play in a specific
order or to record. To begin a Program, load a disc into the drawer and press the Close button.
