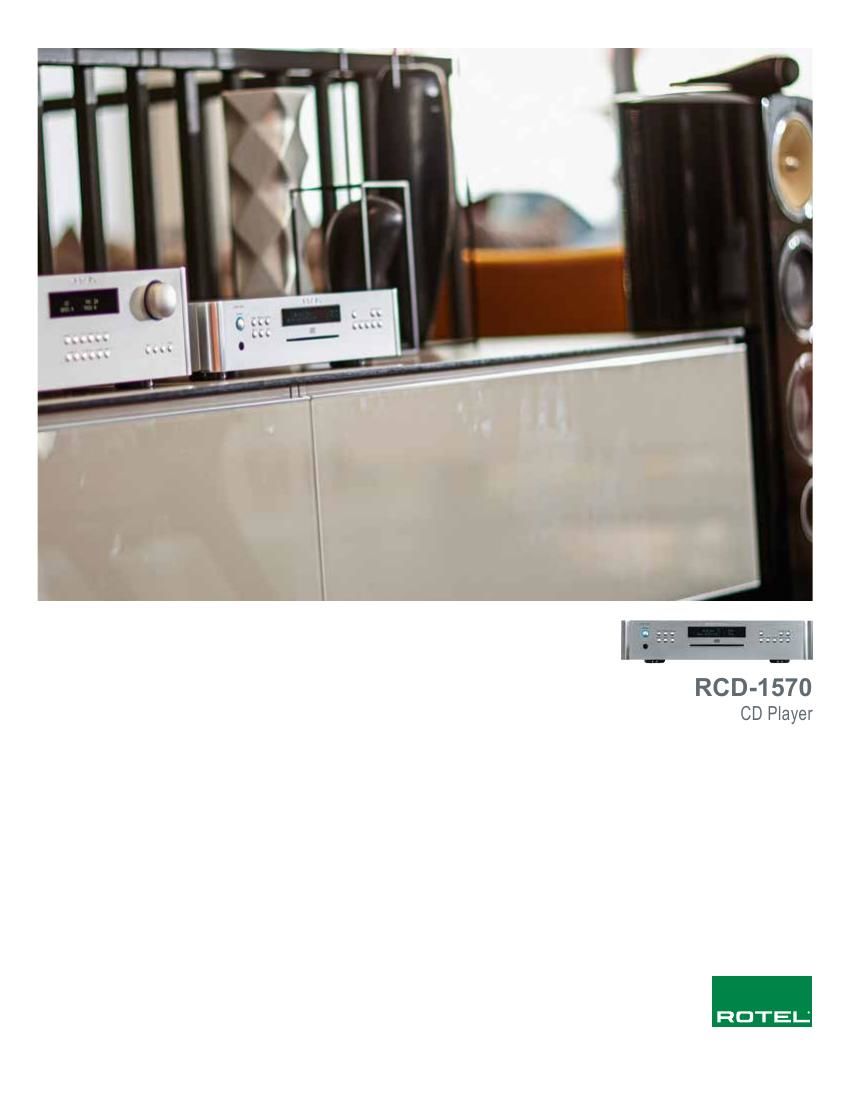

Rotel RCD 1570 Brochure

Page 1

SPECIFICATIONS RCD-1570 CD Player Rotel of America 54 Concord St. N. Reading, MA 01864 USA T +1 978 664 3820 F +1 978 664 4109 www.rotel.com Total Harmonic Distortion + Noise Frequency Response Channel Balance Channel Separation Signal to Noise Ratio Dynamic Range Digital to Analog Converters Speed Accuracy, Wow & Flutter 0.0045% @ 1kHz 20Hz-20kHz (±0.5 dB) ± 0.5 dB > 98 dB @ 1kHz > 100 dB > 96 dB Wolfson Quartz Crystal Precision Those who havent heard Rotels RCD-1570 might believe that theres nothing new in CD players. Those who have heard it tell an entirely different story. Since 1982, when the CD was introduced, Rotel has been refining technology and evolving circuitry to bring you extraordinary sound. The RCD-1570, the outstanding CD player in Rotels 15 series, focuses careful refinements to reveal even the most subtle nuances buried in a CDs pit spiral. One of the RCD-1570s most important features is the Wolfson WM8740 digital filter/stereo digital-to-analog converter. Originally developed for high resolution sources, it is the product of extensive research and real world testing and processes digital signals up to 24-bits in length at sampling rates from 8 kHz to 192 kHz. While word lengths and sampling speed may seem excessive for CDs delivering data at far lower rates, this high speed facility adds reserve capability to ensure proper reproduction under all circumstances. As the most crucial link between a CDs digital data and the analog world in which we listen, this converter boasts significant attributes in addition to its superb high resolution capabilities. Another advance is the RCD-1570s slot-loading disc transport. In addition to mechanical simplicity and improved reliability, this design isolates the CD itself from potentially destructive vibration modes that may affect musical definition. And from a purely aesthetic viewpoint, it adds elegance by simplifying the front panels appearance. The post-converter analog circuitry benefits from Rotels decades-long experiences in crafting the finest sounding pathway from the D/As internal output to single and balanced rear panel connectors that bridge the gap between the RCD-1570 and down-stream components. All circuit components – resistors, capacitors, inductors – are chosen only after their positive contribution to sound quality were quantified and verified qualitatively by extensive listening sessions. All of these circuits draw on a power supply based on an oversized custom Rotel-designed and precision- manufactured toroidal power transformer that, in turn, feeds precise rectifiers, tight-tolerance voltage regulators, and advanced Slit-Foil low-ESR storage capacitors, all globally-sourced to ensure musically accurate operation under even the most demanding conditions. XLR connectors provide balanced outputs, long recognized for their superior noise-rejecting characteristics while high quality RCA connectors provide an easy pathway to the myriad of components with single-ended inputs. This is all part of Rotels long-proven Balanced Design Concept. Its yet another way of assuring you that the RCD-1570 evidences a level of attention that will make it part of your reference-level music system for years to come. 2.0 volts / 100 ohms 4.0 volts / 200 ohms 0.5 volt, Peak to Peak 75 ohms AC 120V, 60Hz AC 230V, 50Hz 15 watts 17 x 4 x 12 5/8 in 431 x 99 x 320mm 2U / 3 1/2 in / 88.1mm 6.7kg, 14.74 lb Analog Output Level / Impedance (0dBFs) Unbalanced (RCA) Balanced (XLR) Digital Output Level (coax) Digital Output Impedance Power Requirements USA Version European Version Power Consumption Dimensions (W x H x D) Front Panel Height (for rack mount) Weight (net)
