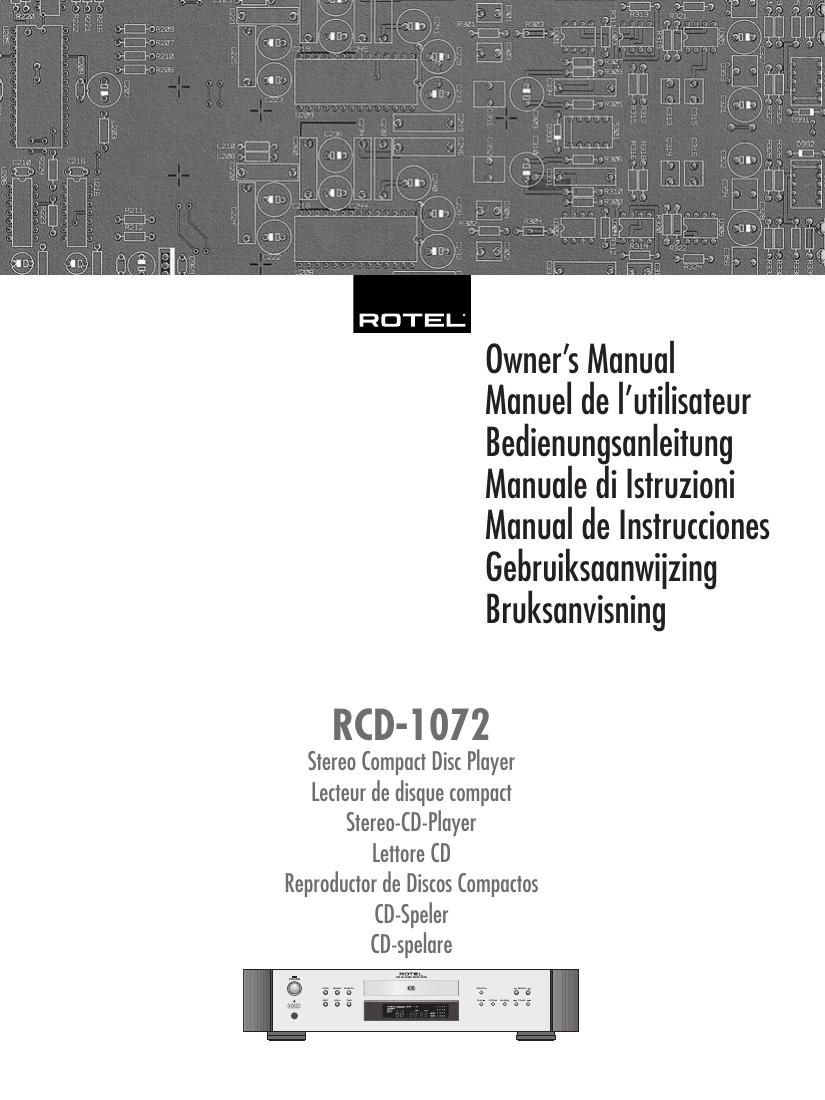

Rotel RCD 1072 OM
This is the 46 pages manual for Rotel RCD 1072 OM.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Rotel RCD 1072 OM (Ocr-read)
Page 1
2 RCD-1072 Stereo Compact Disc Player Important Safety Instructions WARNING: There are no user serviceable parts inside. Refer all servicing to qualified service personnel. WARNING: To reduce the risk of fire or electric shock, do not expose the unit to moisture or water. Do not allow foreign objects to get into the enclosure. If the unit is exposed to moisture, or a foreign object gets into the enclosure, im - mediately disconnect the power cord from the wall. Take the unit to a qualified service person for inspection and necessary repairs. Read all the instructions before connecting or operating the component. Keep this manual so you can refer to these safety instructions. Heed all warnings and safety information in these instructions and on the product itself. Follow all operating instructions. Clean the enclosure only with a dry cloth or a vacuum cleaner. You must allow 10 cm or 4 inches of unobstructed clearance around the unit. Do not place the unit on a bed, sofa, rug, or similar surface that could block the ventilation slots. If the component is placed in a bookcase or cabinet, there must be ventilation of the cabinet to allow proper cooling. Keep the component away from radiators, heat registers, stoves, or any other appliance that produces heat. The unit must be connected to a power supply only of the type and voltage specified on the rear panel of the unit. Connect the component to the power outlet only with the supplied power supply cable or an exact equivalent. Do not modify the supplied cable in any way. Do not attempt to defeat grounding and/or polarization provi - sions. Do not use extension cords. Do not route the power cord where it will be crushed, pinched, bent at severe angles, exposed to heat, or damaged in any way. Pay particular attention to the power cord at the plug and where it exits the back of the unit. The power cord should be unplugged from the wall outlet if the unit is to be left unused for a long period of time. Immediately stop using the component and have it inspected and/or serviced by a qualified service agency if: - The power supply cord or plug has been damaged. - Objects have fallen or liquid has been spilled into the unit. - The unit has been exposed to rain. - The unit shows signs of improper operation - The unit has been dropped or damaged in any way Place the unit on a fixed, level surface strong enough to support its weight. Do not place it on a moveable cart that could tip over. IMPORTANT FOR LASER PRODUCTS 1. CLASS 1 LASER PRODUCT 2. DANGER: Visible laser radiation when open and interlock failed or bypassed. Avoid direct exposure to beam. 3. CAUTION: Do not open the top cover. There are no user serviceable parts inside the player; leave all servicing to qualified service person - nel. WARNING! To reduce the risk of electrical shock, fires, etc.: 1. Do not remove screws, covers or cabinet. 2. Do not expose the unit to rain or moisture. 3. Do not touch the power cord or plug with wet hands.
Page 2
3 English Figure 1: Controls and Connections Commandes et branchements Bedienelemente und Anschlüsse Controlli e collegamenti Controles y Conexiones Bedieningsorganen en aansluitingen Funktioner och anslutningar Figure 2: RR-D95 Remote Control Télécommande RR-D95 Fernbedienung RR-D95 Telecomando RR-D95 Mando a Distancia RR-D95 De RR-D95 afstandsbediening RR-D95 Fjärrkontroll TRACK PLAY STOP PA USE SEARCH POWER OPN/CL S REVIEW RANDOM SCAN REPT TIME PROG CD P L AYER RCD-1 0 7 2 1 4 5 6 10 11 12 13 14 15 16 17 18 2 3 7 8 9 19 20 23 22 21 RR-D95OPN/CLS TIME CLEAR PROG REV REPEAT RANDOM SCAN >10 1 2 3 4 5 6 7 8 0 9 � � � � � � � � � � � � � �
