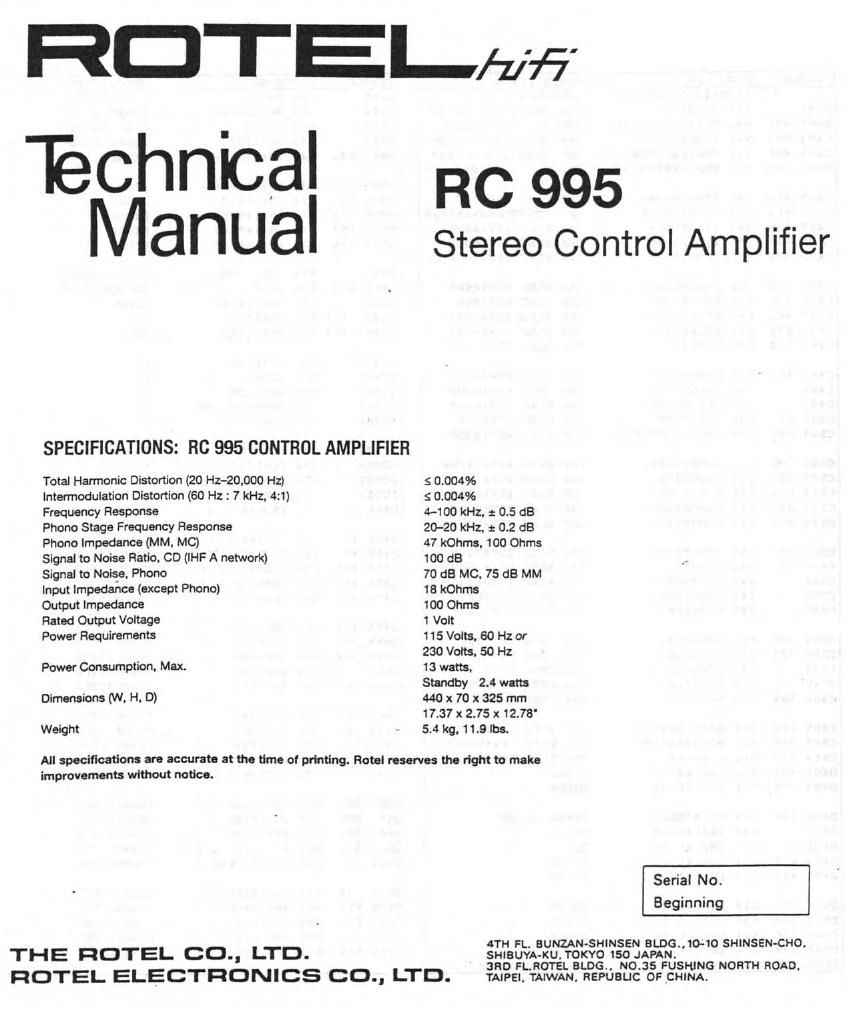

Page 1
HOTEL/39'
chnical no 995
Manual Stereo Control Amplifier
SPECIFICATIONS: RC 995 CONTROL AMPLIFIER
Total Harmonic Distortion (20 Hz-20.000 Hz) S 0.004%
Intemlodulation Distortion (60 Hz : 7 kHz. 4:1) S 0.004%
Frequency Response 4-100 kHz. 1 0.5 dB
Phono Stage Frequency Response 20-20 kHz. : 0.2 dB
Phono Impedance (MM. MC) 47 k0hms, 100 Ohms
Signal to Noise Ratio. CD (IHF A network) 100 dB
Signal to Noise. Phono 70 :18 MC. 75 dB MM
Input Impedance (except Phone) 18 1(0th
Output Impedance 100 Ohms
Rated Output Voltage 1 Volt
Power Requirements 1 15 Volts, 60 Hz or
230 Volts. 50 Hz
Power Consumption. Max. 13 watts.
Standby 2.4 watts
Dimensions (W. H. D) 440 x 70 x 325 mm
17.37 x 2.75 x 12.78'
Weight , 5.4 kg. 11.9 lbs.
All specifications are accurate at the time at printing. Hotel reserves the rlght to make
improvements without notice.
Serial No.
Beginning
47H FL. BUNZAN-SHINSEN BLDG..10-10 SHINSEN-CHO.
THE HOTEL CO., LTD. SHIBUYA-KU.TOKY0150 JAPAN.
3RD FLROTEL BLDG.. No.35 FUSHING NORTH ROAD.
HOTEL ELECTRONICS CD., LTD. TAIPEI, TAIWAN. nsrueuc OFICHINA.
