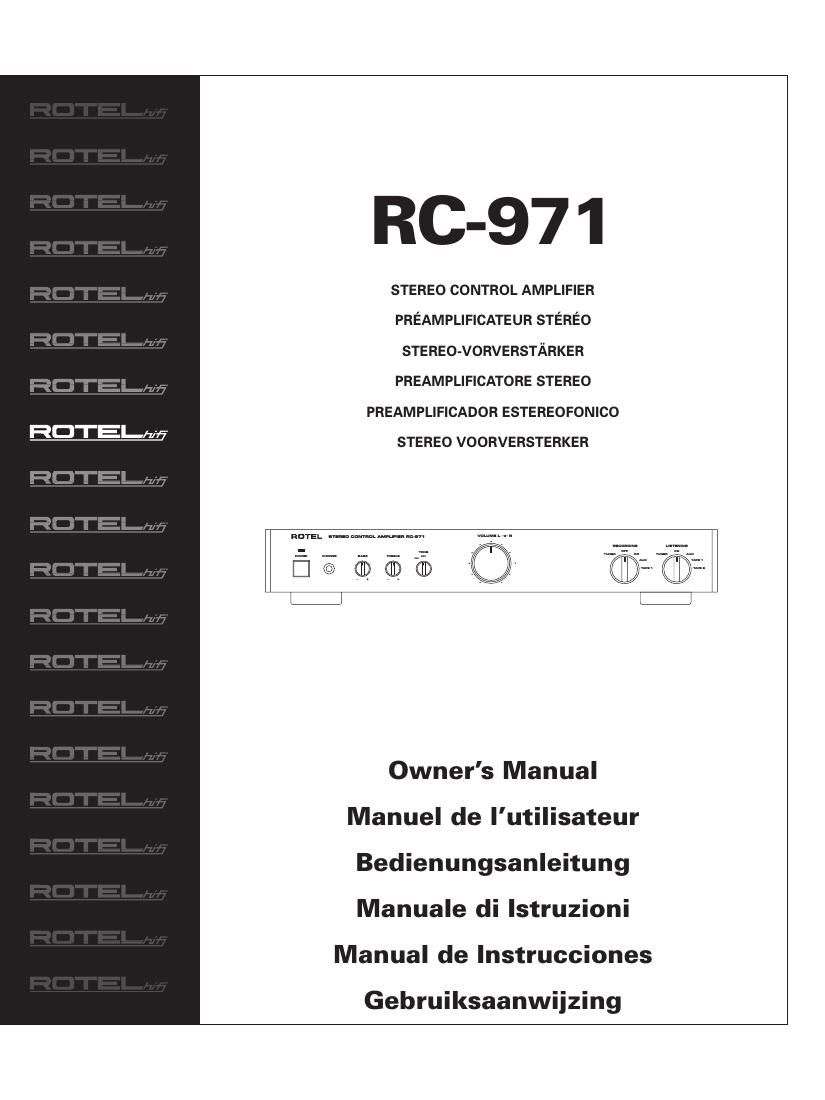

Rotel RC 971 OM
This is the 10 pages manual for Rotel RC 971 OM.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Rotel RC 971 OM (Ocr-read)
Page 1
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT. INSERT FULLY. APPLICABLE FOR USA, CANADA OR WHERE APPROVED FOR THE USAGE ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU AU FOND. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: There are no user serviceable parts inside. Refer all servicing to qualified service personnel. WARNING: To reduce the risk of fire or electrical shock, do not expose the unit to moisture or water. Do not allow foreign objects to get into the enclosure. If the unit is exposed to moisture, or a foreign object gets into the enclosure, immediately disconnect the power cord from the wall. Take the unit to a qualified service person for in- spection and necessary repairs. Read all the instructions before connecting or operating the unit. Keep this manual so you can refer to these safety instructions. Heed all warnings and safety information in these instructions and on the product itself. Follow all operating instructions. Clean the unit only with a dry cloth or a vacuum cleaner. Keep the ventilation inlets on the unit unobstructed. For example, do not place the unit on a bed, sofa, rug, or similar surface that could block the ventilation slots. If the unit is placed in a bookcase or cabinet, there must be sufficient clearance around the unit and ventilation of the cabinet to allow proper cooling. Keep the unit away from radiators, heat registers, stoves, or any other appliance that produces heat. The unit must be connected to a power supply only of the type and voltage specified on the rear panel of the unit. Connect the unit to the power outlet only with the supplied 2-pin polarized power supply cable or an exact equivalent. Do not modify the supplied cable in any way. Do not attempt to defeat grounding and/or polarization provisions. The cable should be connected to a 2-pin polarized wall outlet, matching the wide blade of the plug to the wide slot of the receptacle. Do not use extension cords. Do not route the power cord where it will be crushed, pinched, bent at severe angles, exposed to heat, or damaged in any way. Pay particular attention to the power cord at the plug and where it exits the back of the unit. The power cord should be unplugged from the wall outlet if the unit is to be left unused for a long period of time. Immediately stop using the unit and have it inspected and/or serviced by a qualified service agency if: ¥ The power supply cord or plug has been damaged. ¥ Objects have fallen, or liquid has been spilled, into the unit. ¥ The unit has been exposed to rain. ¥ The unit shows signs of improper operation ¥ The unit has been dropped or damaged in any way Place the unit on a fixed, level surface strong enough to support its weight. Do not place the unit on a moveable cart that could tip over. This symbol is to alert the user to the presence of uninsulated dangerous voltages inside the product's enclosure that may constitute a risk of electric shock. This symbol is to alert the user to important operating and maintenance (service) instructions in this manual and literature accompanying the product.
Page 2
3 aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa Figure 1: Controls and Connections Commandes et branchements Bedienelemente und AnschlŸsse Controlli e Collegamenti Controles y Conexiones De bedieningsorganen en de ingangen voor de bronnen TAPE 1 IN OUT AUX CD TUNER TAPE 2 IN OUTOUTPUTS 12 LEFT RIGHTCONTROL AMPLIFIER MODEL NO. RC-971 POWER CONSUMPTION: 10W AC 3.3A 400W MAXSWITCHED LEFT RIGHT SERIAL NO. 9 13 10 11 12 VOLUME L R LISTENING TUNERCD AUX TAPE 1 TAPE 2 RECORDINGTUNEROFF CD AUX TAPE 1 STEREO CONTROL AMPLIFIER RC-971 POWER PHONES BASS TREBLE OFFTONEON 1 2 3 7 8 6 4 5 Figure 2: Output Connections Prises de sortie Anschlu§ einer Endstufe Collegamenti dÕuscita Conexiones de Salida De verbindingen met de eindversterker SERIAL NO. LEFT RIGHT SPEAKERS WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. CAUTIONRISK OF ELECTRIC SHOCK DO NOT OPEN AV I S : RISQUE DE CHOC ELECTRIQUEÐNE PAS OUVRIR SPEAKER IMPEDANCESTEREO 4 OHMS MINIMUM BRIDGED 8 OHMS MINIMUM POWER AMPLIFIER MODEL NO. RB-981POWER CONSUMPTION: 400W SERIAL NO. LEFT INPUT RIGHT INPUT ROTEL RB-981 TAPE 1 IN OUT AUX CD TUNER TAPE 2 IN OUTOUTPUTS 12 LEFT RIGHTCONTROL AMPLIFIER MODEL NO. RC-971 POWER CONSUMPTION: 10W AC 3.3A 400W MAXSWITCHED LEFT RIGHT ROTEL RC-971 STEREO CONTROL AMPLIFIER RC-971
