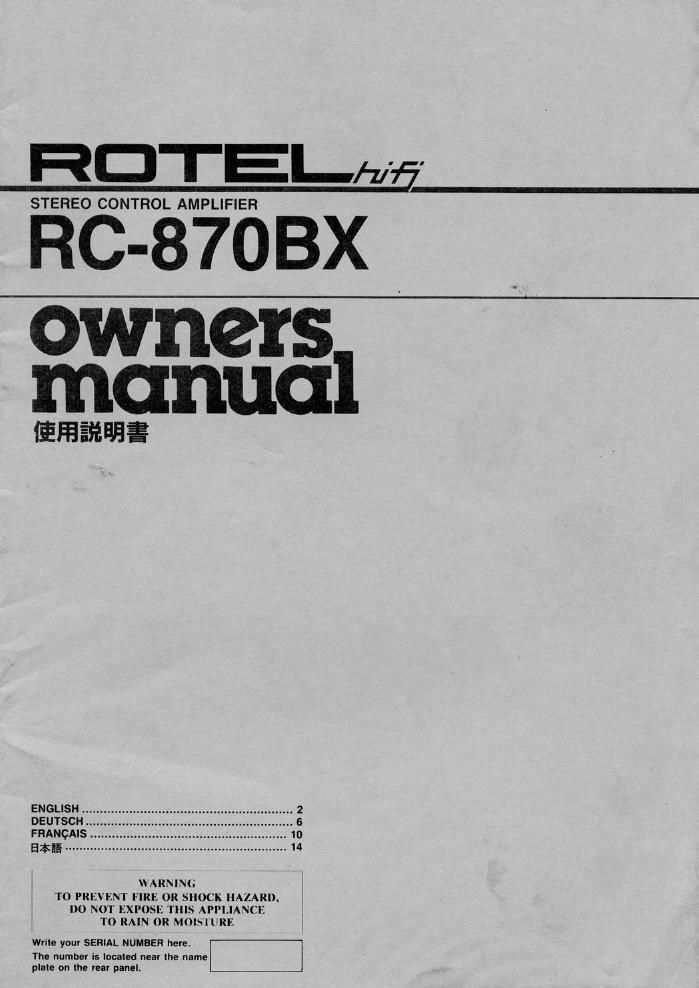

Rotel RC 870BX OM

Page 1

RDTEI-hjfi'

_
STEREO CONTROL AMPLIFIER

RC-87OBX

owners
manual

fifiéfiflflg

ENGLISH
DEUTSCH ..
FRANCAIS

3;; ...........

ARNING
TO PREVENT FIRE ()R SHOCK HAZARI)
DO NOT EXPOSE 'I'IIIS APPLIANCE
TO RAIN 0R MOINI lRII

wme your SERIAL NUMBER have.

The number is localed neav me name
plate on me rear panel.

Page 2

[NEIISH

STEREO CONTROL AMPLIFIER RC-87OBX

INTRODUCTION

We at Hotel want to thank you for purchasing our audio
product,

Hotel audio products are designed to use the latest electronic
technology. and they incorporate our long experience as a
specialist manufacturer of audio equipment. We are confident
that you will find satisfaction in the high quality sound and
top performance. and that you will find pleasure in the func-
tional beauty achieved through human»engineering concept.
Beiore starting operation, please read this instruction manual
thoroughly and acquaint yourself with the proper mode of
using the unit and all its connections.

We hope you will enjoy topnotch performance for many years
to come.

BEFORE ENJOYMENTIPOWER SUPPLY

Follow the instructions below for maximum safety:

1. Use a wall outlet for power supply

Be sure to connect the AC line cord to a household wall out-
let. Be certain that the outlet voltage matches the electrical
rating of the unit. found on the rear panel name plate.

2. Connecting and removing AC cord

Be sure to connect or disconnect the AC line cord only after
turning oft the power switch to prevent possible shock noise
or damage to the speakers.

3. Ventilate the unit well

Never block any ventilation holes at the top and bottom of the
unit. Be sure also to provide ample ventilation space around
the unit. Poor ventilation may result in damage due to exces-
sive heat.

4. Do not open the cabinet

In order to avoid electric shock or damage to the component,
never open the cabinet. If a foreign object falls inside the unit
by mistake. turn the power off. disconnect the wall plug, and
consult a qualified electrician or your dealer.

5. installation

Be sure to place the unit in a level and flat place where it is
free from humidity, vibration. high temperature and not ex-
posed to direct sunlight.

Be careful not to place the unit in a highly enclosed place such
as near a wall or on a bookshelf. A poor ventilation will cause
undesirable effects to the unit.

6. Moving the unit

When transporting, remove the AC cord from the wall outlet
and all other connected cords on the rear panel to prevent
wire breakage and short circuits.

7. If the unit gets wet

It the unit should get wet, immediately disconnect the AC cord,
and consult your dealer or a qualified electrician,

8. Cleaning and maintenance

Do not use chemicals such as benzine or thinners on the front
panel. Always use a soft, dry cloth to clean the unit.

9. Owners manual

Keep the owner's manual near the unit, and record the serial
number (found on the rear panel) on the cover.

Caution (applicable to the U.S.A., Canada, Hong Kong,
and Southeast Asia): On the rear panel of the RC-87OBX
are two sets of AC outlet through which power is supplied
to audio equipment (turntable. CD player. tuner, cassette
deck. etc.) you use in contunction with the RC-87OBX.
Each AC outlet is the switched type, turned on or off upon
switching on or off the power in the RC-B7OBX and has
rating of 400 watts maxrmum. Do not attempt to connect
equipment whose power consumption exceeds the rating
of these AC outlets. Never connect a power amplifier to
these AC outlets.
