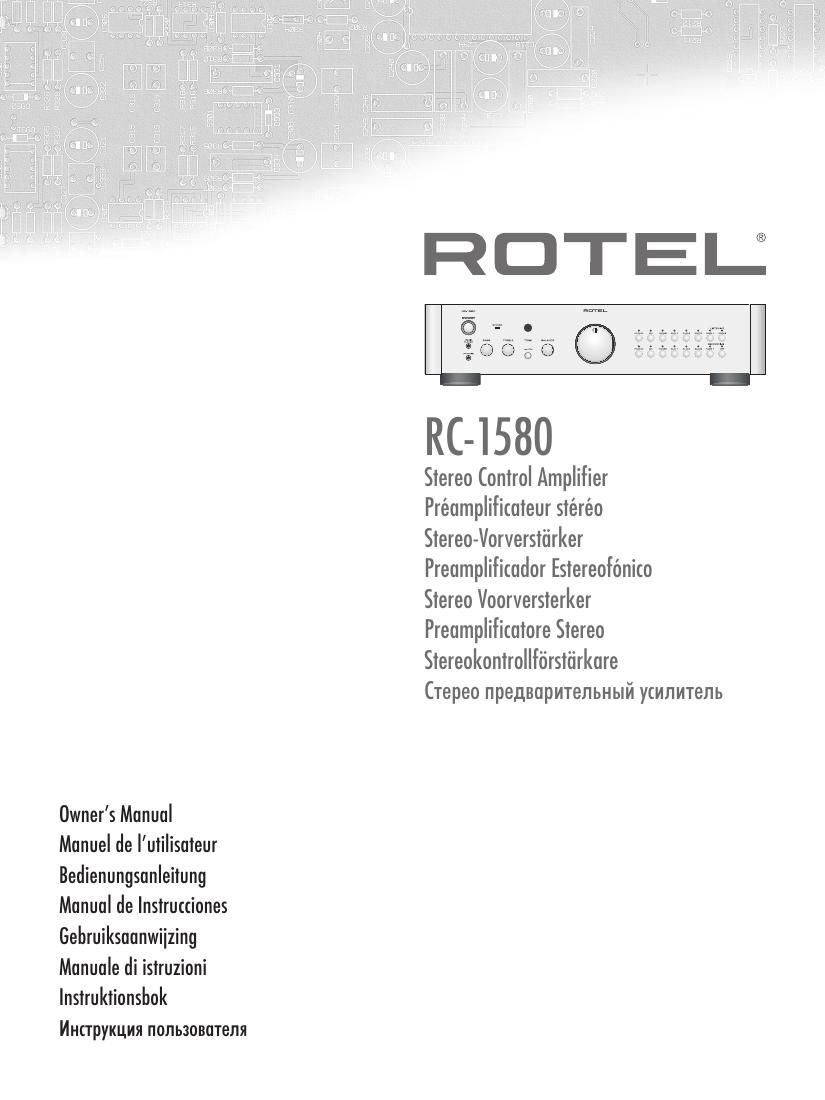

Rotel RC 1580 OM
This is the 64 pages manual for Rotel RC 1580 OM.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Rotel RC 1580 OM (Ocr-read)
Page 1
2 RC-1580 WARNING: There are no user serviceable parts inside. Refer all servicing to qualified service personnel. WARNING: To reduce the risk of fire or electric shock, do not expose the unit to moisture or water. Do not expose the unit to dripping or splashing. Do not place objects filled with liquids, such as vases, on the unit. Do not allow foreign objects to get into the enclosure. If the unit is exposed to moisture, or a foreign object gets into the enclosure, immediately disconnect the power cord from the wall. Take the unit to a qualified service person for inspection and necessary repairs. Read all the instructions before connecting or operating the component. Keep this manual so you can refer to these safety instructions. Heed all warnings and safety information in these instructions and on the product itself. Follow all operating instructions. Clean the enclosure only with a dry cloth or a vacuum cleaner. Do not use this unit near water. You must allow a minimum 10 cm or 4 inches of unobstructed clearance around the unit. Do not place the unit on a bed, sofa, rug, or similar surface that could block the ventilation openings. If the unit is placed in a bookcase or cabinet, there must be ventilation of the cabinet to allow proper cooling. Rotel products are designed to comply with international directives on the Restriction of Hazardous Substances (RoHS) in electrical and electronic equipment and the disposal of Waste Electrical and Electronic Equipment (WEEE). The crossed wheelie bin symbol indicates compliance and that the products must be appropriately recycled or processed in accordance with these directives. This symbol means that this unit is double insulated. An earth connection is not required. Important Safety Instructions Keep the component away from radiators, heat registers, stoves, or any other appliance that produces heat. WARNING: The rear panel power cord connector is the mains power disconnect device. The apparatus must be located in an open area that allows access to the cord connector. The unit must be connected to a power supply only of the type and voltage specified on the rear panel. (USA: 120 V/60Hz, EC: 230V/50Hz) Connect the component to the power outlet only with the supplied power supply cable or an exact equivalent. Do not modify the supplied cable. A polarized plug has two blades, with one wider than the other. A grounding plug has two blades plus a third grounding prong. These are provided for your safety. Do not defeat grounding and/or polarization safety provisions. If the supplied plug does not fit your outlet, please consult an electrician for replacement of the obsolete outlet. Do not use extension cords. The main plug of the power cordset is a disconnect device of the apparatus. In order to completely disconnect the apparatus from the supply mains, the main plug of the power cordset should be unplugged from the mains (AC) outlet. The stand-by LED indicator will not be lit up to show the power cord is unplugged. The disconnect device shall remain readily operable. Do not route the power cord where it will be crushed, pinched, bent, exposed to heat, or damaged in any way. Pay particular attention to the power cord at the plug and where the cord exits the back of the unit. The power cord should be unplugged from the wall outlet during a lightning storm or if the unit is to be left unused for a long period of time. Use only accessories specified by the manufacturer. Use only with a cart, stand, rack, bracket or shelf system recommended by Rotel. Use caution when moving the unit in a stand or rack to avoid injury from a tip-over. Immediately stop using the component and have it inspected and/or serviced by a qualified service agency if: - The power supply cord or plug has been damaged - Objects have fallen or liquid has been spilled into the unit - The unit has been exposed to rain - The unit shows signs of improper operation - The unit has been dropped or damaged in any way
Page 2
3 Figure 1: Controls and Connections Commandes et Branchements Bedienelemente und Anschlüsse Controles y Conexiones De bedieningsorganen en aansluitingen Controlli e connessioni Kontroller och anslutningar 鄇Ì˚ ÛÔ‡‚ÎÂÌËfl Ë ‡Á˙ÂÏ˚ D X Q H N O S T V P Figure 2: RR-AT97 Remote Control Télécommande RR-AT97 Fernbedienung RR-AT97 Mando a Distancia RR-AT97 De afstandsbediening RR-AT97 Telecomando RR-AT97 RR-AT97 fjärrkontroll èÛÎ¸Ú RR-AT97 10 +10 LISTENING RECORDING PHONO CD TUNER AUX 1 AUX 2 AUX 3 TAPE 1 OFF VOLUME TUNING PHONO CD TUNER AUX 1 AUX 2 AUX 3 TAPE 1 TAPE 2 ON OFF T/P MUTE 1 2 3 4 5 6 7 8 9 0 RANDOM RR-AT97 MEM MONO DIRECT BAND PTY TA TPDISPLAY X X X X X 10 +10 LISTENING RECORDING PHONO CD TUNER AUX 1 AUX 2 AUX 3 TAPE 1 OFF VOLUME TUNING PHONO CD TUNER AUX 1 AUX 2 AUX 3 TAPE 1 TAPE 2 ON OFF T/P MUTE 1 2 3 4 5 6 7 8 9 0 RANDOM RR-AT97 MEM MONO DIRECT BAND PTY TA TPDISPLAY X X X X X
