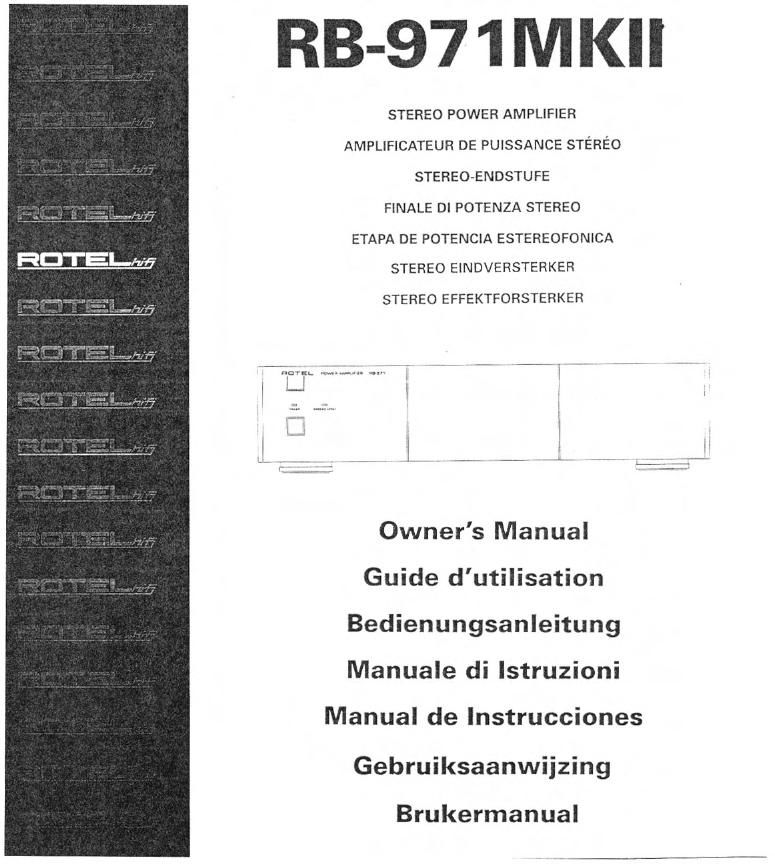

Page 1
RB-97 1 MKII
STEREO POWER AMPLIFIER
AMPLIFICATEUR DE PUISSANCE STEREO
STEREO-ENDSTUFE
FINALE DI POTENZA STEREO
ETAPA DE POTENCIA ESTEREOFONICA
STEREO ElNDVERSTERKER
STEREO EFFEKTFORSTERKER
Owner's Manual
Guide dutilisation
Bedienungsanleitung
Manuale di lstruzioni
Manual de lnstrucciones
Gebruiksaanwijzing
Brukermanual
Page 2
3
Contents (circled numbers refer to illustration)
About Hotel
Getting Started
A Few Precautions
Placement
AC Power and Control
AC Power input a
Power Switch 0 and Power Indicator 9
Input Signal Connection
Input Signal Connection 0
Speaker Connection
Speaker Selection
Speaker Wire Selection
Polarity and Phasing
Stereo Speaker Connection 6
Bridged Mono Operation
Bridged Mono Indicator Light 0
Resetting Jumpers
input Connection
Bridged Speaker Connection
Troubleshooting __
Front Panel Power indicator Is Not Lit
Fuse Replacement
No Sound
Specifications
ooaooooeowwwwmuwmuwwmma
to
as
About Hotel
A family whose passionate interest in music led them to manufao
ture high fidelity components of uncompromising quality founded
Hotel over 30 years ago. Through the years that passion has re-
mained undiminished and the family goal oproviding exceptional
value for audiophiles and music lovers, regardless of their budget
is shared by all Rotel employees.
The engineers work as a close team, listening to, and fine tuning
each new product until it reaches their exacting musical stan-
dards. They are free to choose components from around the
world in orderto make that product the bestthey can. You are
likely to find capacitors from the United Kingdom and Germany,
semi conductors from Japan or the United States, while toroidal
power transformers are manufactured in Hotels own factory
Hotel's reputation for excellence has been earned through hun-
dreds of good reviews and awards from the most respected re
viewers in the industry. who listen to music every day. Their
comments keep the company true to its goal - the pursuit of
equipment that is musical, reliable and affordable
All of us at Rotel thank you for buying this product and hope it will
bring you many hours of enjoyment
