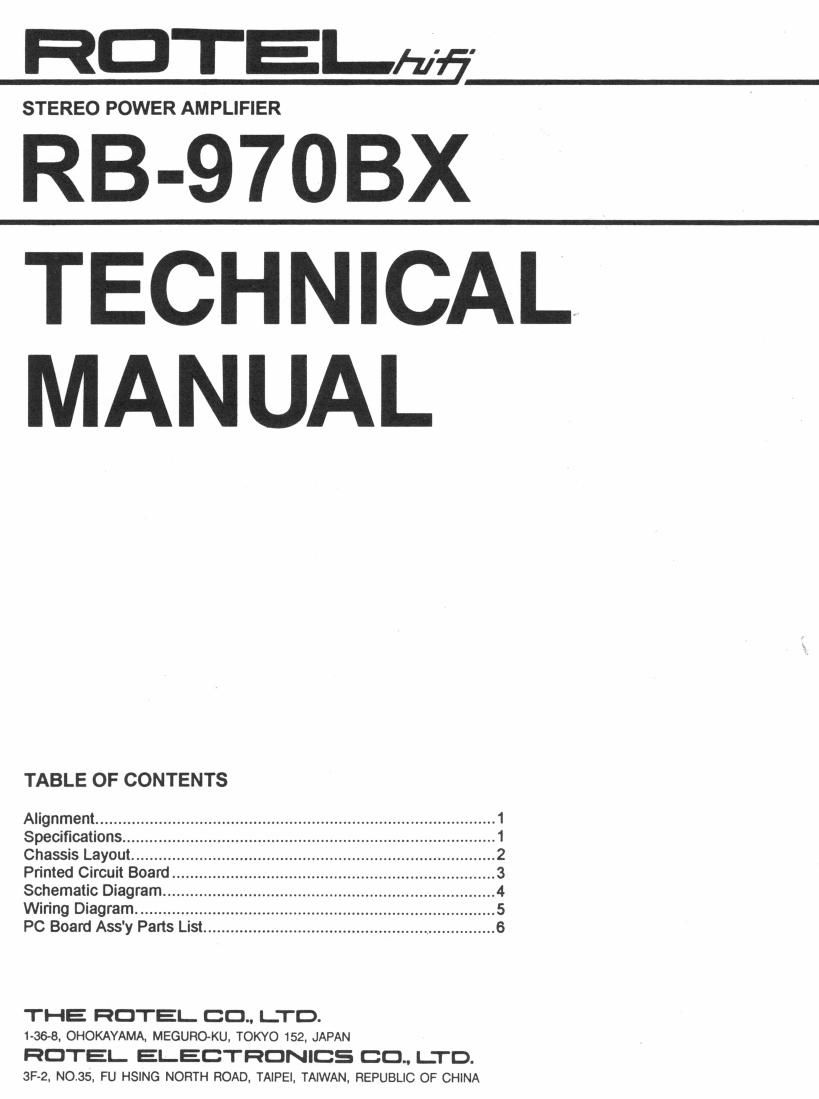

Page 1
RDTEI-hffi'
STEREO POWER AMPLIFIER
RB-97OBX
TECHNICAL
MANUAL
TABLE OF CONTENTS
Alignment .........................................................................................
Specifications .....
Chassis Layout ..........
Printed Circuit Board .....
Schematic Diagram...
Wiring Diagram ................ ..
PC Board Ass'y Parts List .................................................................
m'uu'ab'NI-A-a»
1-36-8, OHOKAYAMA, MEGURO-KU. TOKYO 152, JAPAN
RDTEI. ELECTRONICS (313.. LTD.
3F-2, No.35. FU HStNG NORTH ROAD, TAIPEI, TAIWAN, REPUBLIC OF CHINA
Page 2
Specifications
60 watts per channel, min. RMS both channels driven into 8
ohms from 20 to 20,000 Hz with no more than 0.03% total
harmonic distortion.
110 watts per channel (1 kHz, 4 ohms, 1% THD)
...30A (0.1 ohms, 10-usec, 1 pulse)
Continuous Power Output .....
DIN Output .....................................
Peak Current ..............
Power Output (BTL)....
180 watts (mono) min. RMS driven into 8 ohms from 20 to
20.000 Hz with no more than 0.03% total harmonic distortion.
Total Harmonic Distortion ............................ No more than 0.03% (continuous rated power output)
(20 to 20,000 Hz) No more than 0.03% (continuous 1/2 rated power output).
No more than 0.05% (1 watt per channel power output, 8 ohms).
Interrnodulation Distortion ............................ No more than 0.05% (continuous rated power output)
(60 Hz : 7 kHz= 4:1) No more than 0.05% (continuous 1/2 rated power output).
No more than 0.05% (1 watt per channel power output, 8 ohms).
Output (Speakers) ....................................... 8 ohms min (bridged mono mode); 4-16 ohms (stereo mode)
Damping Factor 280 (20 to 20,000 Hz, 8 ohms)
Input Sensitivity/Impedance ..... 1.0 V l 27 kohms
Ovenoad Level (T HD 0.5 %, 1 kHz) ...... 5 V
Frequency Response ................................... 15 to 100.000 Hz, +0 dB. -1.0 dB
Signal to Noise Ratio (IHF, A network) ......... 116 dB
GENERAL
Power Requirement ..................................... 120 V/60 Hz, 220-240 V/50 Hz (depending on destination)
Power Consumption 300 watts
Dimension (overall) ..................................... 440 (W) x 92 (H) x 334 (D) mm
17-3/8" x 3-5/8 x 13-3/16"
Weight (net) ................................................. 6.8 kg / 15.0 lbs
' Measured pursuant to the Federal Trade Commission's Trade Regulation Rule or, Power Claims for Amplifiers
(applicable to the USA only).
NOTE: Specifications and design are subject to possible modification without notice.
Power Amplifier Bias Adjustment
Instruments: DC milli-voltmeter
Notes: Prior to Bias Adjustment, run about 5 minutes with rated output
(8 ohm) and warm up Power Transistor and Heat Sink.
Set Volume Control to minimum.
Coupling
Step Adjust Adjust for
Plus Lead Minus Lead
1 TP1 TP3 VR601 DC milli-voltmeter
reads 8 mV
2 TPZ TP4 VR602
