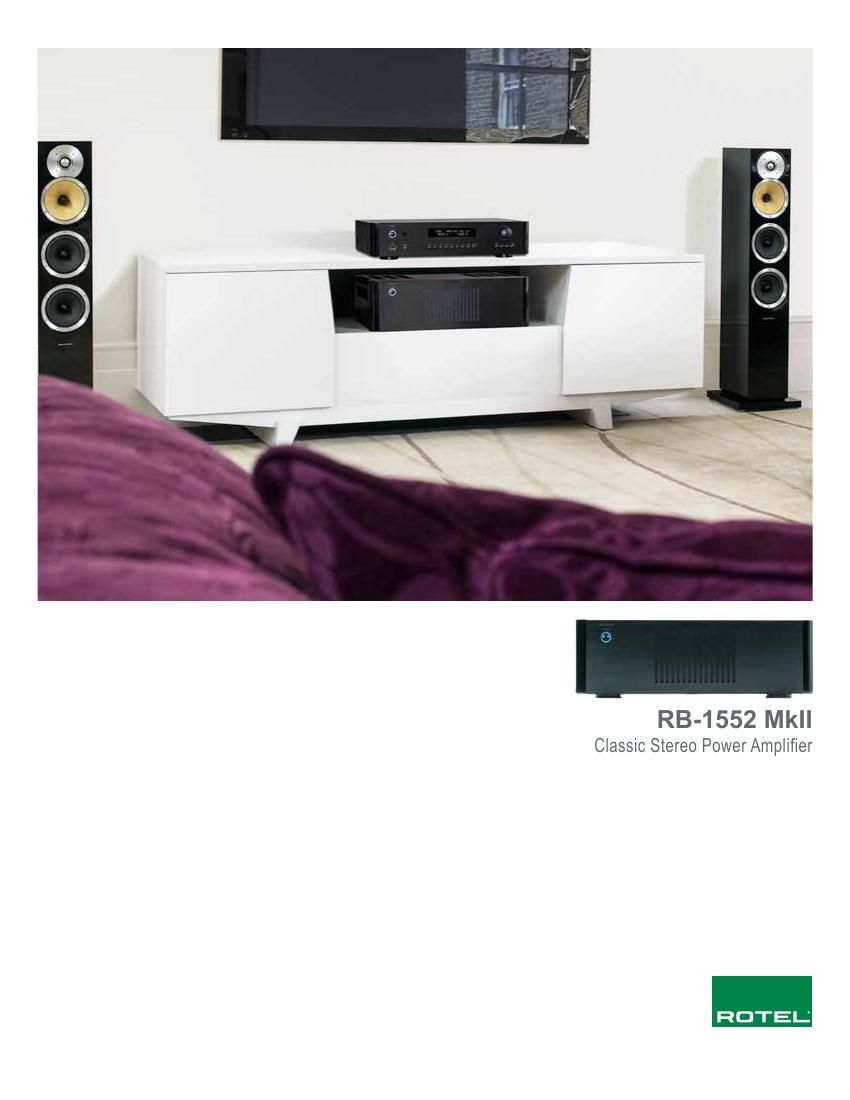

Rotel RB 1552 Mk2 Brochure

Page 1

SPECIFICATIONS RB-1552 MkII Classic Stereo Power Amplifier Rotel of America 54 Concord St. N. Reading, MA 01864 USA T +1 978 664 3820 F +1 978 664 4109 www.rotel.com Power Output all channels driven IM Distortion Damping Factor (8 ohms) Input Sens. / Impedance Unbalanced Balanced Frequency Response S/N Ratio (IHF A) Power Consumption Dimensions (W x H x D) mm Dimensions (W x H x D) in Front Panel Height Shipping Weight130 watts x 2ch (20Hz-20kHz, < 0.03% THD, 8 ohms) < 0.03% 450 12k ohms/1.5 volt 100k ohms/2.5 volt 10-100kHz (±0.5dB) 120 dB 400W 431 x 144 x 340mm 17 x 5.25 x 13.4 in 3 U (5.25) 31.6 lb The RB-1552MKII is a 130 watt per channel class A/B amplifier. It is engineered to be powerful and robust, yet able to extract every last nuance out of even the most complex musical score. Rotel engineering s fanatical attention to detail means the sum is greater than the parts, what we call our Balanced Design Concept*. Each aspect of design is carefully considered holistically to result in maximum audio performance; from the selection of an over-sized power supply featuring a highly efficient, low magnetic field toroidal transformer to multiple, high-current bipolar output transistors. Circuit topology is planned, implemented, evaluated, and adjusted to achieve optimum results. The RB-1552MKII features independent left and right power rectification stages and decoupling, and is essentially a mono block design. Further evidence of design over-spec is in the selection of premium slit-foil capacitors, which provide plenty of reserve energy for extremely dynamic audio passages and are able to quickly replenish themselves due to the nature of their unique design. Input options are balanced XLR or unbalanced RCA connectors. The RB-1552MKII stereo amplifier has been engineered to provide high-resolution audio performance, yet it is very af fordable, as has been the tradition with Rotel electronics for over 50 years. *For more information about Balanced Design Concept go to www.rotel.com
