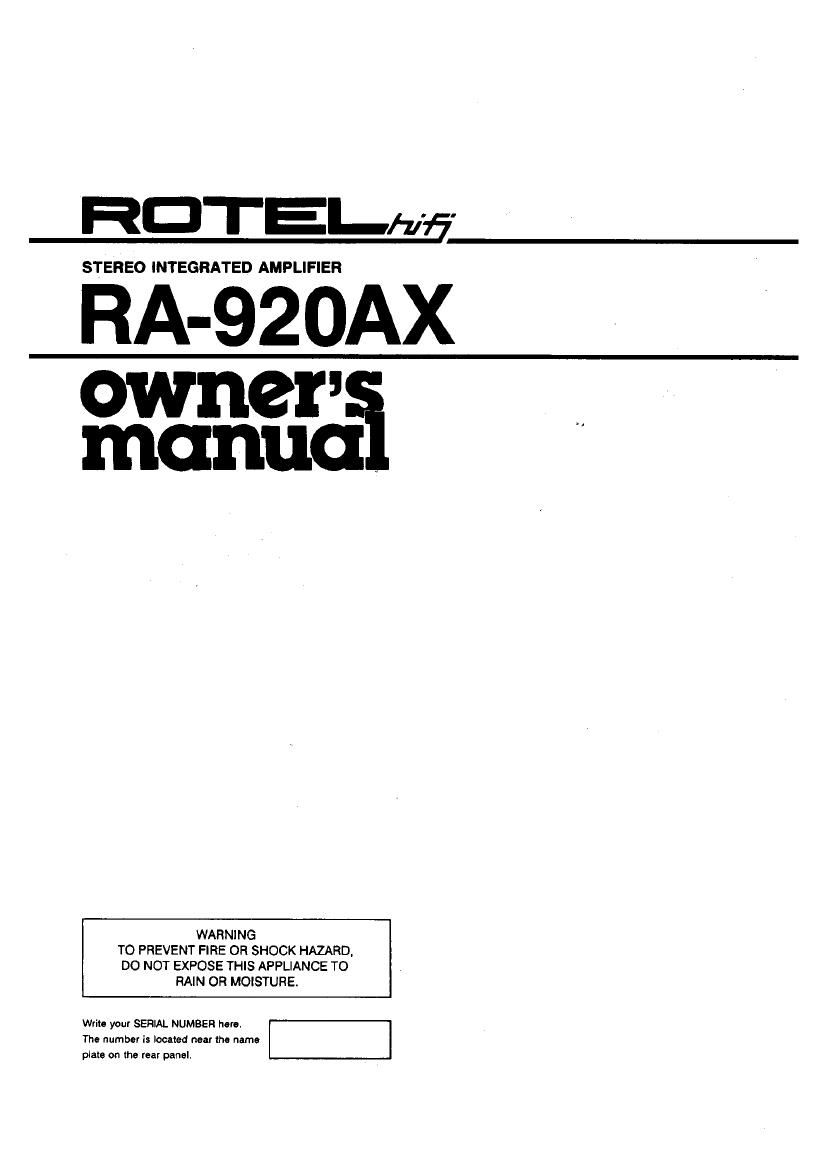

Rotel RA 920AX OM

Page 1

HOTEL/1,5;

STEREO INTEGRATED AMPLIFIER

RA-920AX

owner "
manna

WARNING
TO PREVENT FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE,

Write you! SERIAL NUMBER hora.
The number is located near the name
plate on the rear panel.

Page 2

SAFETY INSTRUCTION

1. Read Instructions- All the safety and operating in

structions should be read before the appliance is

operated.

2. Retain Instructions - The safety and operating instruc-

tions should be retained for future reference.

3. Heed Warnings-All warnings on the appliance and in

the operating instructions should be adhered to.

4. Follow lnstructions- All operating and use instruc-

tions should be followed.

5. Water and Moisture- The appliance should not be

used near water -- for example, neara bathtub, washbowl

kitchen sink, laundry tub, In a wet basement, or near a

swimming pool, and the like.

6. Carts and Stands-the ap- PORTABLE CART

pliance should be used only with a WARNING

cart or stand that is recommended

by the manufacturer.

6A. An appliance and cart com-

bination should be moved with

care. Quick stops, excessive force.

and uneven surfaces may cause SJtzeA
-the appliance and cart combina-

tion to overturn.

7. Wall or Ceilling Mounting- The appliance should be

mounted to a wall or ceilling only as recommended by the

manufacturer.

8. Ventilation-The appliance should be situated so that

its location or position does not Interfere with Its proper

ventilation.For example, the appliance should not be

situated on a bed, sofa, rug. or similar surface that may

block the ventilation openings; or placed In a built-in instal-

lation such as a bookcase or cabinet that may impede the

flow of air through the ventilation openings

9. Heat- The appliance should besitmted away from heat

sources such as radiators, hat registers, stoves, or other

appliances (including amplifiers) that produce heat.

10. Power Sources- The appliance shodd be connected

toa power supply only of the type described in the operat-

ing instructions or as marked on the appliance.

11. Grounding or Polarization- The precautions that

should be taken so that the grounding or polarization

means of an appliance is not defeated.

12. Power-Cord Protection- Power-supply cords should

be routed so that they are not likely to be walked on or

pinched by items placed upon or against them, paying

particular attention to cords at plugs, convenience recep-

tacles and the point where they exit from the appliance.

13. Cleaning - The appliance should be cleaned only as

recommended by the manufacturer.

14. Nonuse Perioda- The power cord of the appliance

should be unplugged from the ouflet when Iett unused for

along period of time.

15. Object and Uquid Entry- Care shodd be taken so

that obiects do not fall and liquids are not spilled into the

enclosure through openings.

16. Damage Requiring Service- The appliance should

be serviced by qualified factory authorized service person-

nel when:

A. The power-supply cord or the plug has been damaged;

or

B. Oblects have fallen, or liquid has been spilled Into the

appliance; or

C. The appliance has been exposed to rain; or

D. The appliance does not appear to operate normally or
exhibits a marked change' In performance; or

E. The appliance has been dropped or the enclosure
damaged.

17. Servicing- Theusershould not attempttoservlcethe
appliance beyond that described' In the operating instruc-
tions. All other servicing should be referred to qualified
factory authorized service personnel.

WARNING. To reduce the risk of fire or electric
shock. do not expose this appliance to rain or
moisture

& RISK Ilf (LECTIIE SHIEK '
I10 MT 0?!!! a

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO
NOT REMOVE COVER (OR BACK). N0 USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING T0 QUALIFIED SERVICE
PERSONNEL.

a Explanation of Graphical Symbol:
The lightning flash with arrowhead sym-
bol,within an equilateral triangle,is In-
tended to alert the user to the presence
of uninsulated "dangerous voltage"
within the products enclosure that may
be of sufficient magnitude to constitute a
risk of electric shock to persons.

The exclamation point within an equi-
lateral triangle is intended toalert the user
to the presence of important operating
and maintenance(servlcing) instructions
In the literature accompanying the ap-
pllance.

EXCLUSIVE NOTE FOR UK.

If your unit comes with a 2-core mains lead without a
plug, neither core is to be connected to the earth
terminal of a three pin plug. make certain that they are
connected, according to the following instruction, to
the proper terminals. Check that the terminals are
screwed down firmly and no loose strands of wire are
present.

IMPORTANT: The wires in this mains lead are coloured
in accordance with the following code:

BLUE: NEUTRAL

BROWN: UVE

As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured
markings identifying the terminals in your plug
proceed as follows:

The wire which Is coloured BLUE must be connected
to the terminal which is marked with the letter N or
coloured BLUE or BLACK. The wire which is coloured
BROWN must be connected to the terminal which is
marked with the letter L or coloured BROWN or RED.
