Rotel RA 214 Service Manual
This is the 10 pages manual for Rotel RA 214 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Rotel RA 214 Service Manual (Ocr-read)
Page 1
Quality Untompromned

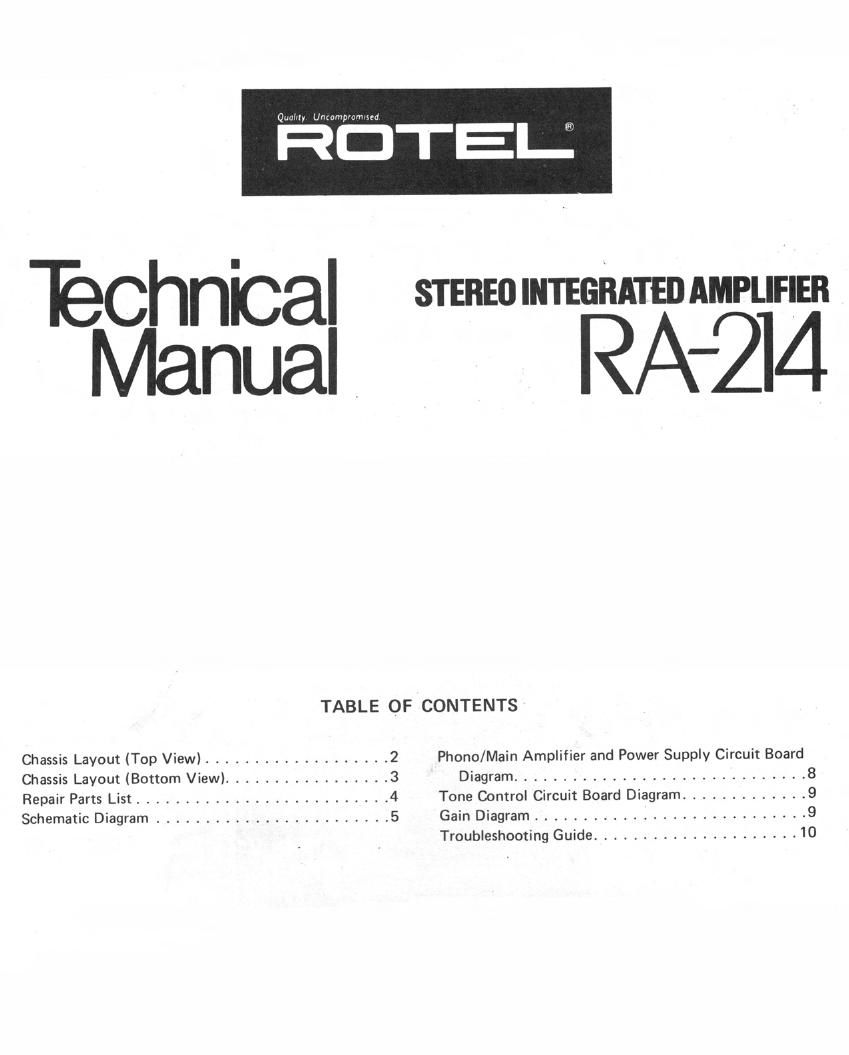

TGChnicaI sTEIIEo INTEGRATED AMPLIFIER
Manual, RA-ZM
TABLE OF CONTENTS
Chassis Layout (Top View) ................... 2 Phone/Main Amplifier and Power Supply Circuit Board
Chassis Layout (Bottom View) ................. 3 Diagram .............................. 8
Repair Parts List .......................... 4 Tone Control Circuit Board Diagram ............. 9
Schematic Diagram ........................ 5 Gain Diagram ............................ 9
Troubleshooting Guide ..................... 10
Page 2
Chassis Layout (Top View)
eeeemee we
1. D901, Rectifier Diode 12. T001, Power Transformer
2. 0902, Rectifier Diode 13. Voltage Selector
3. lC401, Phono Amp. IC (L-ch) 14. SpeakerA Terminal
4. IC402, Phono Amp. lC (R-ch) 15. Speaker~B Terminal
5. F903, AC Circuit Protection 16. |C601, Power Amp. IC (L-ch)
6. PL001, Indicator Lamp 17. F901, AC Fuse
7. C002, Smoothing Capacitor 18. F902, AC Circuit Protection
8. 0001, Smoothing Capacitor 19. lC602, Power Amp. IC (Fl-ch)
9. S4, Speaker-B Switch 20. Aux Jack
10. $5, Speaker-A Switch 21. Tuner Jack
11. S6, Power Supply 22. Phono Jack
