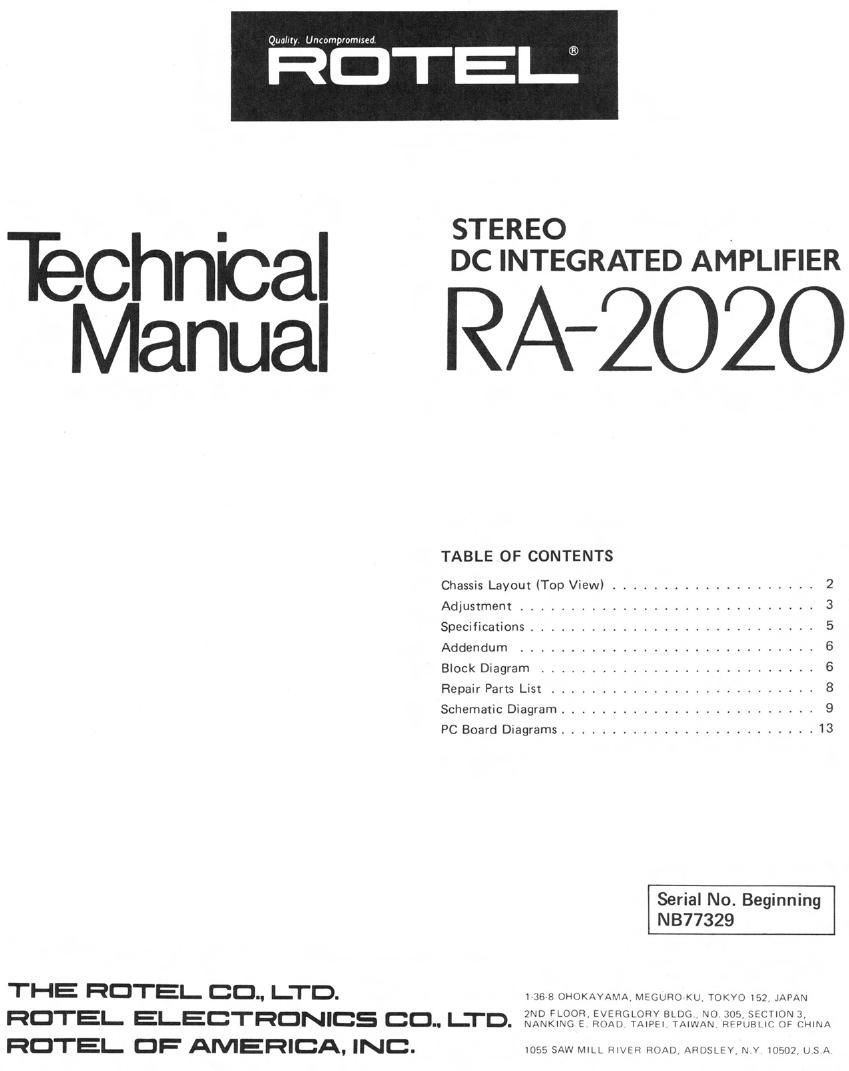

Rotel RA 2020 Service Manual
This is the 14 pages manual for Rotel RA 2020 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Rotel RA 2020 Service Manual (Ocr-read)
Page 2
Chassis Layout (Top View)
@63996363638
@6999666666
9 I .»
. . . . \\ I
/ ,7 . , , a /L \k U '
6D @éé/TQ/ I
o
1. VR405, L-CH OVERLOAD PROTECTION LEVEL ADJ 24. POWER SUPPLY PC BOARD (3-137)
2. FUNCTION AND PHONO EQUALIZER AMP PC BOARD (TC-145) 25. AC OUTLET
3. FUNCTION SELECTOR 26. D708, RECTIFIER
4. RECORDING SELECTOR 27, RY701, SPEAKER RELAY
5, VOLUME CONTROL 28. SPEAKER TERMINALS
6. TONE CONTROL AMP PC BOARD (TC-147) 29. VOLTAGE SELECTOR (not used on chassis for EuropeI
7. SUPERSONIC SWITCH 30. C002, SMOOTHING CAPACITOR FOR -B
8. SUBSONIC SWITCH 31. PRE/MAIN JACKS
9. TONE DEFEAT SWITCH 32. C001, SMOOTHING CAPACITOR FOR +3
10. TREBLE CONTROL 33. TAPE MONITOR-1, 2 JACKS
11. BASS CONTROL 34, AUX, TUNER JACKS
12. PEAK LEVEL INDICATOR PC BOARD (X-275I 35. PHONO-1, -2 JACKS
13. POWER SWITCH 36. VR402, R-CH MC HEAD»AMP DISTORTION ADJ
14. SPEAKER B SWITCH 37. MC HEAD«AMP PC BOARD (X-283I
15. SPEAKER A SWITCH 38. VR401, L-CH MC HEAD»AMP DISTORTION ADJ
16. SPEAKER SWITCH PC BOARD (X-301I 39. POWER AMP, L~CH
17. LEVEL INDICATOR SENSITIVITY SWITCH 40, POWER AMP, R-CH
18. VRGOI, L-CH LEVEL INDICATOR CAL 41. DRIVER PC BOARD IAF»113I
19. LEVEL INDICATOR OFF SWITCH 42. VR406, R-CH OVERLOAD PROTECTION LEVEL ADJ
20. VR602, R-CH LEVEL INDICATOR CAL 43. VR404, R-CH IDLING CURRENT ADJ
21. PEAK LEVEL INDICATOR DRIVER PC BOARD IX-298I 44, VFI402, RCH DC BALANCE ADJ
22. FUSE PC BOARD (X-296I 45, VR401, L-CH DC BALANCE ADJ
23. T001, POWER TRANSFORMER 46. VR403, L-CH IDLING CURRENT ADJ
