ROLAND XV 88
This is the 36 pages manual for ROLAND XV 88.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from ROLAND XV 88 (Ocr-read)

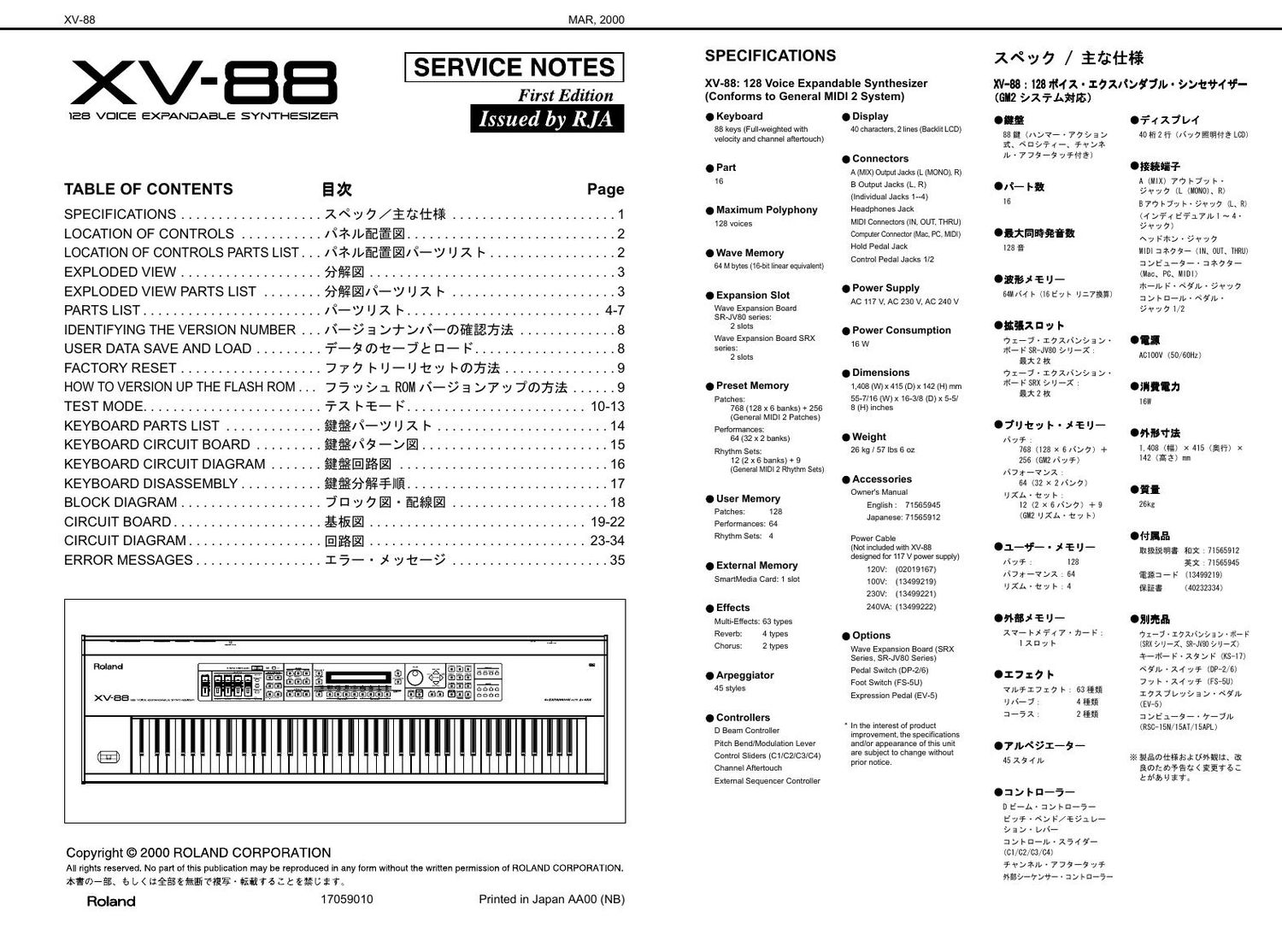

Page 1
XV-88 MAR, 2000 2 LOCATION OF CONTROLS / パネル配置図 パネル配置図パネル配置図 パネル配置図 LOCATION OF CONTROLS PARTS LIST / パネル配置図パーツリスト パネル配置図パーツリストパネル配置図パーツリスト パネル配置図パーツリスト No. PART CODE PART NAME DESCRIPTION Q'TY 32485261 SLIDE KNOB 248-261 1 02018790 D S-ESCT MX1H BLK L=30 1 13359366 SLIDE POTENTIOMETER EWA-NPOX05B14 10KB 1 32485261 SLIDE KNOB 248-261 4 22225366 D S-ESCUTCHEON M4H BLK 222-366 1 00891789 30M/M SLIDE POTENTIOMETER EWANPEX05B14 30MM 4 02129567 POT DUST COVER POT DUST COVER 1 01125890 D S-KEYTOP SD1H-A CLR 16 01783801 TACT SWITCH SKHJFF WITH LED AMBER 16 01783934 N S-KEYTOP MD2H 3 01787045 LED(ORANGE) SLR-325DCT31 6 01340290 TACT SWITCH EVQ11A H=5.0 6 01783945 N S-KEYTOP MD3H 3 01787045 LED(ORANGE) SLR-325DCT31 9 01340290 TACT SWITCH EVQ11A H=5.0 9 01783923 N S-KEYTOP MD1H 5 01787045 LED(ORANGE) SLR-325DCT31 5 01340290 TACT SWITCH EVQ11A H=5.0 5 01783956 N S-KEYTOP MD4H 2 01787045 LED(ORANGE) SLR-325DCT31 8 01340290 TACT SWITCH EVQ11A H=5.0 8 01783967 N S-KEYTOP MX1H 2 01340290 TACT SWITCH EVQ11A H=5.0 2 01783978 N S-KEYTOP MX2H 1 01340290 TACT SWITCH EVQ11A H=5.0 2 01783989 N S-KEYTOP MX3H BLK 4 01340290 TACT SWITCH EVQ11A H=5.0 12 01234090 D T-KEYTOP MX4B BLK 1 01340290 TACT SWITCH EVQ11A H=5.0 4 22485303 D R-KNOB L BLK 248-303 1 01905467 ROTARY ENCODER EVE GC1 F20 24B 1 02123012 ENCODER HOLDER 1 01783856 DISPLAY COVER 1 00787212 LCD UNIT (OPTLX) DMC2079NY-LA-B 1 01900623 LED TLN205 1 02230578 LED SPACER LDS-50R 1 01900612 DIODE TPS611 1 12169368 LED SPACER LDS-40B 1 01343089 ESCUTCHEON D-BEAM CONTROLLER ESCT BLK 1 No. PART CODE PART NAME DESCRIPTION Q'TY 01784401 SEESAW SWITCH SDDJE1-A-2 10A/250VAC 1 02019112 WIRING W1 1 02019167 AC CORD ASSY (120V) UP-880-J01 1 02018878 EXP COVER 1 01780712 CARD CONECTR CN015P-3013-0 1 01343101 ESCUTCHEON D C-ESCT BX1H BLK 1 13429274 MIDI SOCKET YKF51-5041 1 01127067 SLIDE SWITCH SSSF123-P06S0 1 13429911 DIN JACK TCS7927-28-401 (RS422) 1 13449284 6.5MM JACK HLJ7001-01-3010 4 00569278 6.5MM JACK LGR4609-7100 1 13449283 6.5MM JACK HLJ7101-01-3010 2 13449258 6.5MM JACK HLJ4306-01-3080 1 12359105 RUBBER FOOT W RS-09 235-105 4 No. PART CODE PART NAME DESCRIPTION Q'tyQ'ty (for 117V) 40011312 SCREW 3X8 BINDING TAPTITE P FE BZC 64 40011123 SCREW 4X8 BINDING TAPTITE B FE BZC 02 40010278 SCREW M3X12 BINDING MACHINE FE BZC 66 40237101 SCREW M3X8 PAN MACHINE W/SW+PW BZC 44
Page 2
MAR, 2000 XV-88 3 EXPLODED VIEW / 分解図 分解図分解図 分解図 EXPLODED VIEW PARTS LIST / 分解図パーツリスト 分解図パーツリスト分解図パーツリスト 分解図パーツリスト No. PART CODE PART NAME DESCRIPTION Q'TY 02018812 TOP PANEL1 22265286 KEY FELT 226-286 1 02018823 SIDE PANEL L 1 02018834 SIDE PANEL R 1 02128634 END BLOCK L 1 02128645 END BLOCK R 1 71675234 PA-4A88AFT-G KEYBOARD ASSY 1 71565556 BOTTOM BOARD 1 71562178 AFT BOARD ASSY 1 02018856 BLIND1 40017356 COATING CLIP CS-4 1 02128334 PANEL ANGLE 2 00788967 SIDE ANGLE2 00128089 END BLOCK HOLDER 2 70564101 BENDER TURBOLESS PB-H0201 1 02018790 D S-ESCT MX1H BLK L=30 1 22225366 D S-ESCT M4H BLK 222-366 L=30 1 02129567 POT DUST COVER 1 71562112 PANEL-A KEYTOP ASSY 1 71562134 PANEL-B KEYTOP ASSY 1 02018867 DISPLAY HOLDER 1 00787212 LCD UNIT (OPTLX) DMC2079NY-LA-B 1 01783856 DISPLAY COVER 1 71562156 XV-88 PANEL-C KEYTOP ASSY 1 02231756 XV-88 INSULATING SHEET 1 02230590 CLIP CLAMP B-4S 2 22485303 D R-KNOB L BLK 248-303 1 32485261 SLIDE KNOB M BLK/LCG 5 71565534 ANALOG BOARD ASSY 1 71562201 MAIN BOARD ASSY 1 02018889 PWB HOLDER MAIN 2 71562190 EXP BASE BOARD ASSY 1 12189810 PCB SPACER WLS-14-094VO 6 02019034 PWB SPACER RSPLS-12L 2 01902756 PWB SPACER RSPS-12L 2 02018890 PWB HOLDER EXP 1 01785823 SWITCHING REGULATOR A1DU2L3B034 1 02018901 PWR SPLY HOLDER 1 02018878 EXP COVER1 01784401 SEESAW SWITCH SDDJE1-A-2 10A/250VAC 1 02019112 WIRING W11 02019167 AC CORD ASSY 120V UP-880-J01 1 02235345 LEAF A6 02235323 LEAF B3 01125890 D S-KEYTOP SD1H-A CLR 16 01783934 N S-KEYTOP MD2H 3 01783945 N S-KEYTOP MD3H 3 01783923 N S-KEYTOP MD1H 5 01783956 N S-KEYTOP MD4H 2 01783967 N S-KEYTOP MX1H 2 01783978 N S-KEYTOP MX2H 1 01783989 N S-KEYTOP MX3H 4 01343089 ESCUTCHEON D-BEAM CONTROLLER ESCT BLK 1 01234090 D T-KEYTOP MX4B BLK 1 No. PART CODE PART NAME DESCRIPTION Q'TY Q'TY (for 117V) 40346289 SCREW 4X12 OVAL HEAD TAPTITE B NI 10 10 40011312 SCREW 3X8 BINDING TAPTITE P FE BZC 12 10 40011123 SCREW 4X8 BINDING TAPTITE B BZC 2 4 40011067 SCREW 3X8 BINDING TAPTITE B FE ZC 48 48 40013067 SCREW M3X8 PAN MACHINE W/SW+SMALL PW ZC 4 4 40239734 SCREW 3X6 VWH TAPTITE B ZC 7 7 40237101 SCREW M3X8 PAN MACHINE W/SW+PW FE BZC 5 5 00568756 STOP SCREW (NEW TYPE) PA-4A 2 2 40012145 SCREW 4X14 TRUSS TAPPING A1 FE BZC 12 12 40010734 SCREW 3X12 BINDING TAPPING A1 FE ZC 3 3 40010134 SCREW M4X20 TRUSS MACHINE BZC 13 13 40128512 SCREW 4X25X20 VW TAPTITE B BZC 13 13 40010278 SCREW M3X12 BINDING MACHINE BZC 6 6 40344256 SCREW 3X6 PAN HEAD TAPTITE S ZC 4 4
