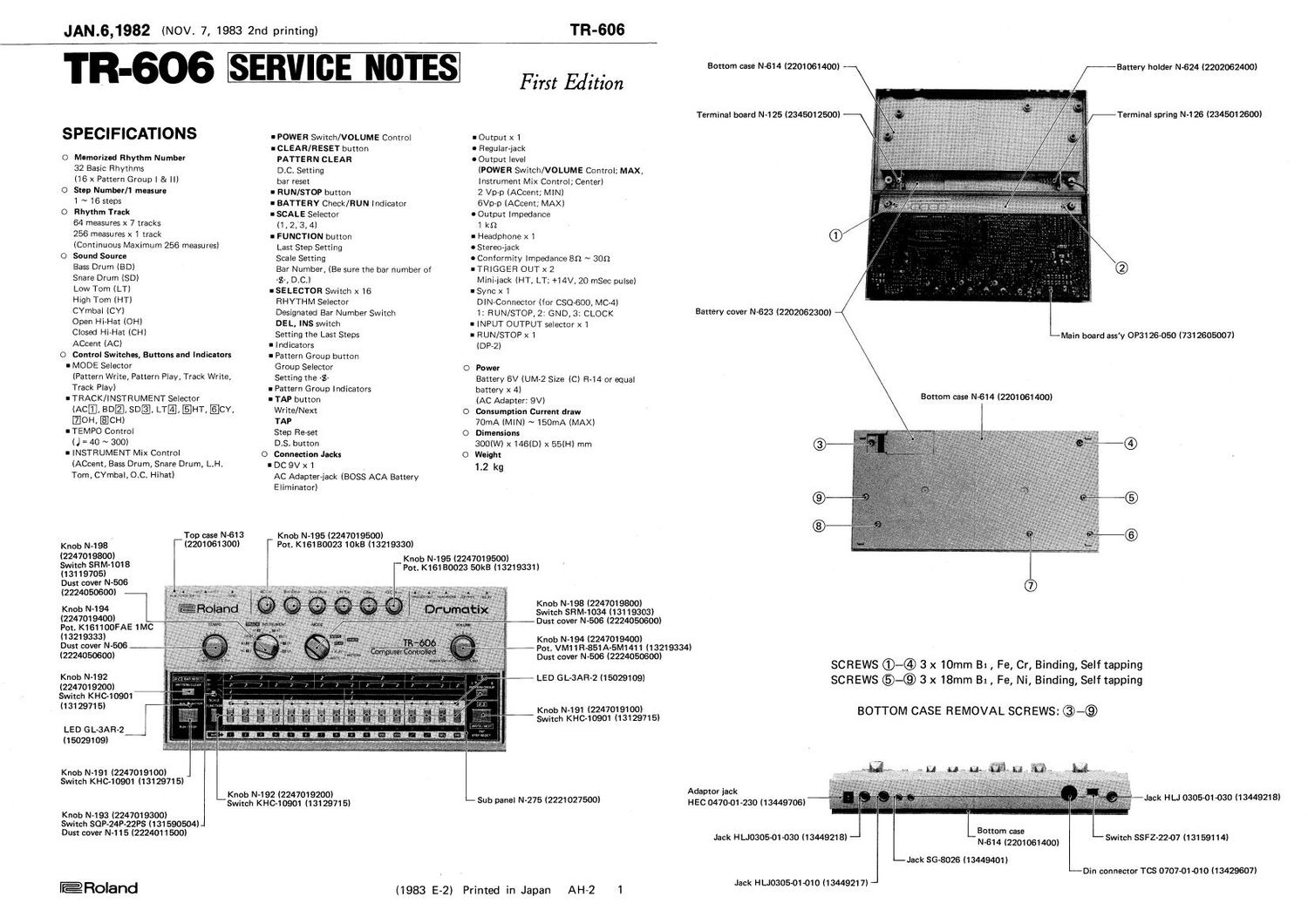

ROLAND TR 606

Page 1

JAN.6,1982 (NOV. 7, 1983 2nd printing)

TR-606 (SERVICE NOTES

SPECIFICATIONS

O Momorizad Rhythm Number
32 Basic Rhythms
(16 x Pattern Group I 81 II)
0 Step Number/1 measure
1 ~ 16 steps
0 Rhythm Track
64 measures x 7 tracks
256 measures x 1 track
(Continuous Maximum 256 measures)
0 Sound Source
Bass Drum (BD)
Snare Drum (SD)
Low Tom (LT)
High Tom (HT)
CYmbal (CY)
Open Hi~Hat (OH)
Closed Hi-Hat (CH)
ACcent (AC)
0 Control Switches, Buttons and Indicators
I MODE Selector
(Pattern Write, Pattern Play, Track Write,
Track Play)
I TRACK/INSTRUMENT Selector
(ACE. BDI, SDI, LTI
IOH, ICH)
I TEMPO Control
(J = 40 ~ 300)
I INSTRUMENT Mix Control
(ACcent, Bass Drum, Snare Drum, L.H,
Tom, CYmbal,O.C. Hihat)

Top case N613

HT, @cv,

I POWER Switch/VOLUME Control
I CLEAR/RESET button
PATTERN CLEAR
DSC. Setting
bar reset
I RUN/STOP button
I BATTERY Check/RUN indicator
I SCALE Selector
(1 , 2,3, 4)
I FUNCTION button
Last Step Setting
Scale Setting
Bar Number, (Be sure the bar number of
'S, D.C.)
ISELECTOR Switch x16
RHYTHM Selector
Designated Bar Number Switch
DE L, INS switch
Setting the Last Steps
I Indicators
I Pattern Group button
Group Selector
Setting the ~3-
I Pattern Group Indicators
I TAP button
Write/Next
TAP
Step Reset
0.8. button
0 Connection Jacks
I DC 9V x 1
AC Adaptabjack (BOSS ACA Battery
Eliminator)

Knob N-195 (2247019500)

TR-606

First Edition

IOutput x 1
o Regular-jack
oOutput level
(POWER switch/VOLUME Control; MAX,
Instrument Mix Control; Center)
2 Vp-p (ACcent; MIN)
6Vp-p (ACcent; MAX)
oOutput Impedance
1 kn
I Headphone x 1
oStereo-jack
o Conformity Impedance 8n ~ 3012
ITRIGGER OUT x 2
Mini-jack (HT, LT; +14V, 20 mSec pulse)
I Sync x 1
DIN-Connector (for CSQ-GOO, MC-4)
1: RUN/STOP,2: GND, 3: CLOCK
I INPUT OUTPUT selector x1
I HUN/STOP x 1
(DP-2)

Power

Battery 6V (UM»2 Size (C) R-14 or equal
battery x 4)

(AC Adapter: 9V)

Consumption Current draw

70mA (MIN) ~ 150mA (MAX)
Dimensions

300(W)x146(D)x 55(H) mm

Weight

1.2 kg

Knob N-198 (2201061300) Pot. K16130023 10kB (13219330)
(2247019800) Knob N-195 (2247019500)
Switch SRM-1018 Pot. K115130023 50kB (13219331)
(13119705)
Dust cover N-506
(2224050600) -
Knob N4 98 (22470191300)
Knob N-194 Switch SRM-1034 (13119303)
(2247019400) Dust cover N-506 (2224050600)

Pot. K161100FAE 1 MC
(13219333)
Dust cover N-506

Knob N-194 (2247019400)
Dust cover N-506 (2224050600)

(2224050600)

KnOb N492 LED GL-3AR-2 (15029109)
(2247019200)
Switch KHC~10901 , .
(13129715) $211154in 33 Knob N-191 (2247019100)
4 F Kim?! 1012:}? . Switch KHc-10901 (13129715)
LED GL-3AR-2 .
(15029109)

Knob N-191 (2247019100)
Switch KHc-10901 (13129715)

Knob N-192 (2247019200)

Switch KHC-10901 (13129715) Sub panel N-275 (2221027500)

Knob N4 93 (2247019300)
Switch SOP-24P-22PS (131590504)
Dust cover N-115 (2224011500)

@Roland (1983 5-2) Printed in Japan AH-2 1

Bottom case N614 (2201061400) Battery holder N-624 (2202062400)

Termina) board N-125 (2345012500) Terminal spring N-126 (2345012600)

Battery cover N-623 (2202062300)

Main board assy 0P3126-050 (7312605007)

Bottom case N-614 (2201061400)

Pot. VM11R-851A-5M1411 (13219334)

SCREWS ®-@ 3 x 10mm 31 , Fe, Cr, Binding, Self tapping
SCREWS ©-© 3 x 18mm Bi, Fe, Ni, Binding, Self tapping

BOTTOM CASE REMOVAL SCREWS: ®-©

Adaptor jack

0 13449218)
HEC 047001-230 (13449706) Jack HLJ 030543103 1

Bottom case
N~614 (2201061400)

Jack HLJ0305-01-030 (13449218) Switch SSFZ-22-07 (13159114)

Jack 56-8026 (13449401)

Din connector TCS 0707-01 -010 (13429607)
Jack HLJ0305-01-010 (13449217)
