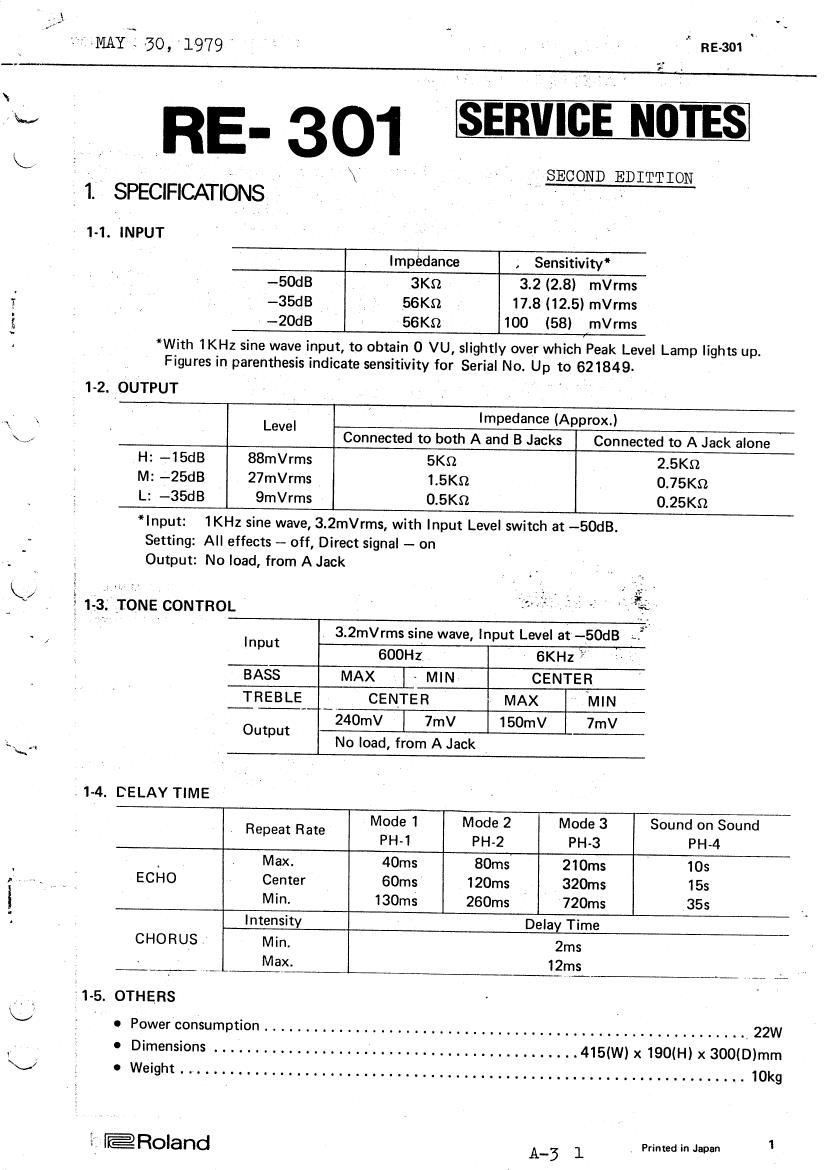

.RE-301,
: I. SPECIFICATIONS
i
RE-301
r
' ISEBIIICVECNOTES
SECOND EDITTION
14. INPUT
Impedance , Sensitivity
-50dB 3K9 3.2 (2.8) mVrms
-35dB 56KQ 17.8 (12.5) mVrms
-20dB 56KB 100 (58) mVrms
*With 1KHz sine wave input, to obtain 0 VU, slightly over which Peak Level Lamp lights up.
Figures in parenthesis indicate sensitivity for Serial No. Up to 621849-
_ 1.2. OUTPUT ' '
Le el Impedance (Approx.)
V Connected to both A and B Jacks Connected to A Jack alone
H: -15dB 88mVrms 5Kn 2.5Kn
M: -25dB 27mVrms 1.5Kn 0.75KD.
L: -35dB 9mVrms 0.5KQ 0.25Kn
*lnput: 1KHz sine wave, 3.2mVrms, with Input Level switch at -50dB.
Setting: All effects - off, Direct signal - on
Output: No load, from A Jack
I
143; IONE CONTROL
In t 3.2mVrms sine wave, Input Level at-SOdB my.
9 600Hz, - 6KHz
BASS MAX I ~ MIN CENTER
TREBLE __ _ CENTER MAX ~MIN
240mV | 7mV 150mV 7mV
Output
No load, from A Jack ,
71-4l DELAY TIME
R e Rate Mode 1 Mode 2 Mode 3 Sound on Sound
9" a PH-1 PH-2 PH-3 PH~4
4 Max. 40ms 80ms 210m: 105
ECHO Center 60ms 120ms 320ms 155
Min. 130ms 260ms 720ms 35s
Intensity Delay Time
CHORUS Min. 2ms
_ Max. Ist 7 ___
:1-5. OTHERS
0 Power consumption .......................................................... 22W
0 Dimensions ............................................ 415(W) x 190(H) x 300(D)mm
0 Weight .................................................................... 10kg
