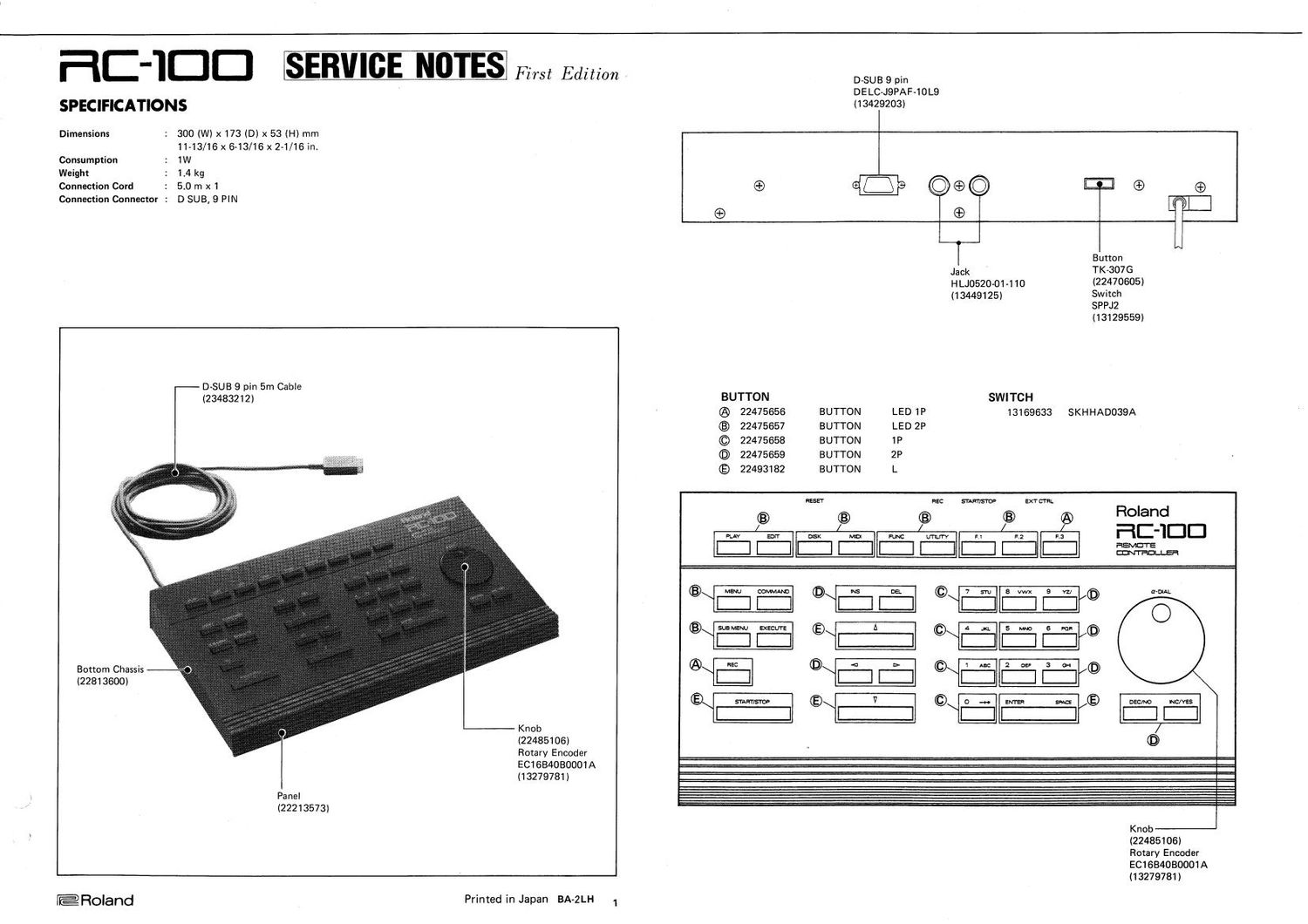

ROLAND RC 100
This is the 6 pages manual for ROLAND RC 100.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from ROLAND RC 100 (Ocr-read)
Page 2
R0400 DEC.1987
EXPLODED VIEW
1 2221357301 PANEL
2 22475656 BUTTON LED 1P
3 22475657 LED 2P
4 22475658 1P
5 22475659 2P
6 22493182 L
7 22485106 a DIAL KNOB
8 22245142 VOLUME MASK
9 22470605 BUTTON TK-307G
10 22813600 BOTTOM CHASSIS
11 22350313 BASE
12 22355334 BASE
21 7938411002 CONTROL BOARD ASSY
22 7938412002 CPU BOARD ASSY
23 22163131 SPACER
24 12199565 PCB HOLDER KGLS-6RT
25 22190757 HOLDER #757
26 13279781 ROTARY ENCODER ECl6B40B0001A
27 23493650 WIRING A
28 WIRING B } in a set of three
29 WIRING C
31 12449299 DATALINE FILTER ESD-R19D
33 23483212 D-SUB 9 PIN 5M CABLE
41 3x6 mm Black B-Tight Binding
42 3x6 mm Black Screw Binding
43 2.6x5mm Black Screw Pan
44 3x6 mm B~Tight Binding
