Page 1
May, 1988 .3910
SERVICE NOTES)
First Edition
PIS-1C)
SPECIFICATIONS
CURRENT CONSUMPTION ------------------------- 200mA DC at 9v
WEIGHT ------- ' 8009/1 2 b 202 (without Adaptor)
DIMENSIONS ~ 278(W) x 142(0) x 46(H)mm
1015/16X 5-9/16" x1-13/16"
ACCESSORY .............................................. AC ADAPTER
PSA-I 00 100V
PSA-120 1 1 7V
PSA-220 220V
PSA-240 240V Australian
@Roland Printed in Japan AI-2 (CR) 1

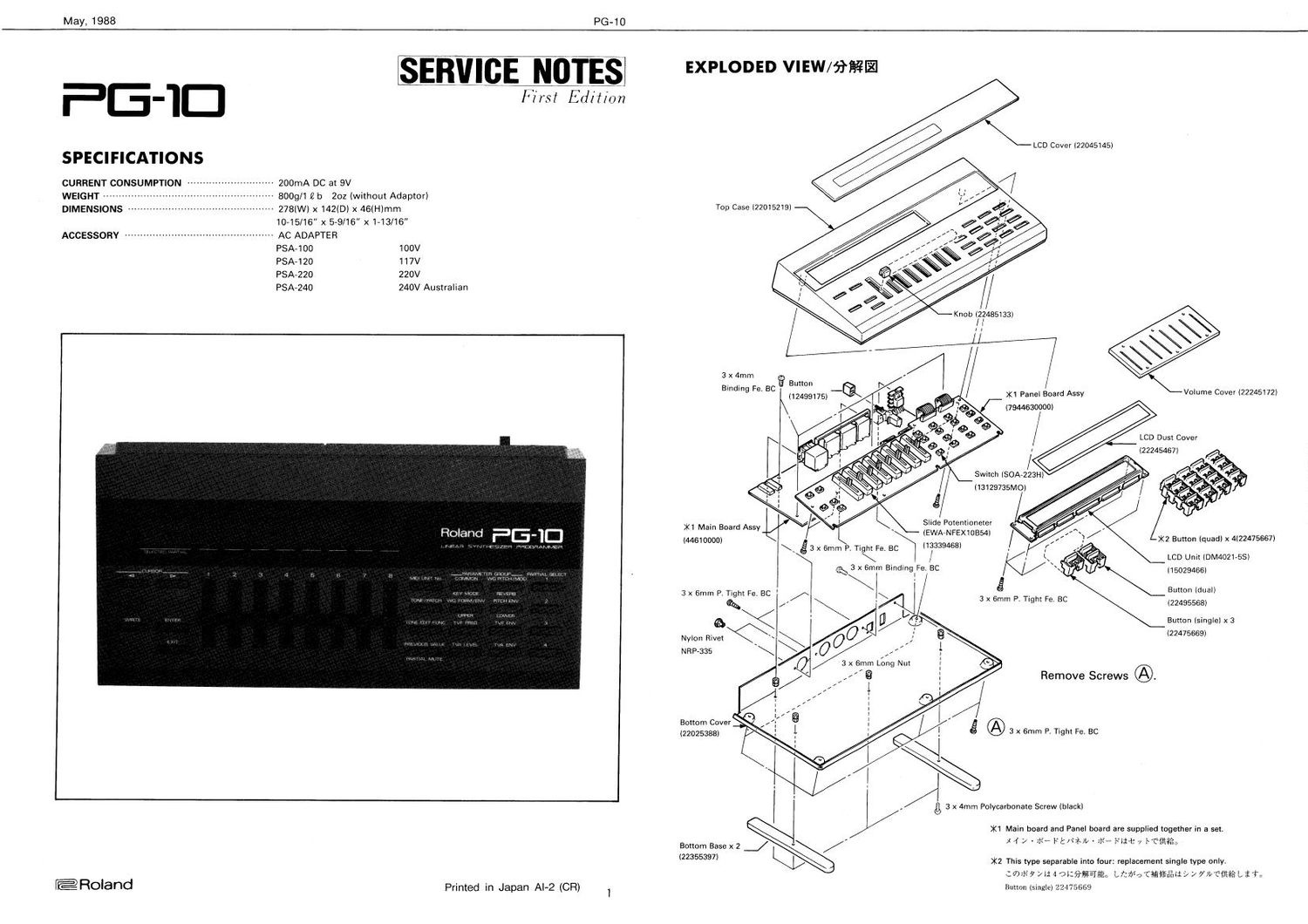

EXPLODED VIEW/fifiglfl
LCD Cover (22045145)
Top Case 122015219)
3 X 4mm
Binding Fe. BC
S Butlon
>K1 Panel Board Assy Volume Cover (22245172)
(7944630000)
LCD Dust Cover
(22245467)
Swilch (SOA-223H)
113129735MO)
>l<1 Main Board Assy sllde Polenuoneter
) (EWA-NFEXlOB54) /\ \
(44610000
\_ g3 x 6mm P. Tight Fe, BC 3339453) .
\ '
/
X2 Button (quad) x 4(22475667)
;
\ LCD Unit (Du/1402155)
(15029466)
@Qnm BindingIFe/ EC g
3 6 RT. h F _ V Button (dual)
x mm :11 9 BC /fi/\ \ \AJ/ 3 x 6mm P. Tight Fe. BC (22495568)
@ \< . l/ I __ Button (single) x 3
1
Nylon Rivel \Q \ 0 J
NEW-335 \ y x/
3
(22475669)
\ 0 x 6mm Leng Nut
Bottom Cover
(22025388)
Bottom Base x 2 / /
(22355397) KI/
& 3 x 4mm Polycarbonate Screw (black)
>)<1 Main board and Panel board are supplied together in a set.
x 4 y - fi- Pad»: :16- MHz-v mango
>K2 This type separable into four: replacement single type only
arm-E5! 2 l1 4 oliwflfilfifio 13:79)») (mental: 9 y 7'JVCl1t-le L i 3%
Button (single) 22475669
Page 2
May, 1988
PG-10
PARTS LIST
CASING CAPACITOR ARRAY
22015219 Top Case 13529147 CXKD8X101 M (100P X 8) main board
22025388 Bottom Cover
22045145 LCD Cover 5
22245172 Volume Cover 12449326 SET-0460 main boa rd
22245467 LCD Dust Cover
22355397 Bottom Base 'NDUCTOR
BUTTON, KNOB 22445240 BL02RN2-R62 maln board
22485133 Knob slide potentiometer POTENT'OMETER
22475669 Button single WRITE, CURSOR 13339468 EWA-NFEX1OBS4 panel board
22495568 Button dual ENTER, EXIT 13299314 EVN-A1AOOB13 1K0 B main board
22475667 *Button quad PARTIAL SELECT, PARAMETER
GROUP, etc. SW'TCH
12499175 Button single POWER 13129143 SDDW-A1 DC16V 1A POWER
*This type separable into four : replacement single type only. 13129735M0 SOA-223HS panel board
: 04:7 >1: 4 01391333115, Ltifio C, 1549215111 9 y 210501113 L z 1:,
CONNECTOR
AC ADAPTER
(cable holder)
12449509 PSA-100 100V 13429222 51016-1000 10P panel board, main board
12449510 PSA-120 117V 13429223 510164100 11P panel board, main board
12449511 PSA-220 220V (wire trap)
12449512 PSA-240 240V Australian 13439445 520110710 71: main board
LCD SOCKET
15029466 DM03224S . . . 13429168 MIDIS-NS (triplet)
Nyo riplacement for Tduwdual parts. 13429654 T085351-01-1111 (DIN connector)
menu 1.11: 7 l sizing 13449706 HEC470-01-230 (AC adapter jack)
PCB ASSEMBLY HOLDER
7944610000 Main Board (PCB 22925585) 22195889 MIDI holder
7944630000 Panel Board (PCB 22925585)
Main board and Panel board are supplied together in a set. HEAT SINK
4 4 V ' *5 1 ' Ti 1: '7 romeo 12469158 SC-7-BS-T main board
10
15179184 11 PD781OG CPU
1544913100 MBZ7C-128-20 EP ROM
When ordering EP ROM, specify version number.
EP ROM E§§7£§ 116%9li, N- / a / ~ 7- V1- 5:535:31 L'CTé mo
1517934380 LC3517AS-12 SRAM
15169515 TC74HC00 quad 2-input NAND gate
15169516 TC74HC02 quad 2-input NOR gate
15169544 TC74HCS73P octal d-type latch (3-state)
15169304X0 SN74LSO4N hex inverter
15199135 L78MR05 +5V voltage ragulator
OPT-ISOLATOR
15229720 PC9010 main board
TRANSISTOR
15119132 28A1015GR main board
DIODE
15019126D0 155-133 T77 main board, panel board
15019281 1SR35-100AT-93 main board
CRYSTAL
12389765 TOC-226A-6R 12MHz main board
RESISTOR ARRAY
13919312M0 RGLD8X153J (15KQ x8) main board
