ROLAND MT 300S

This is the 16 pages manual for ROLAND MT 300S.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 16

Extracted text from ROLAND MT 300S (Ocr-read)

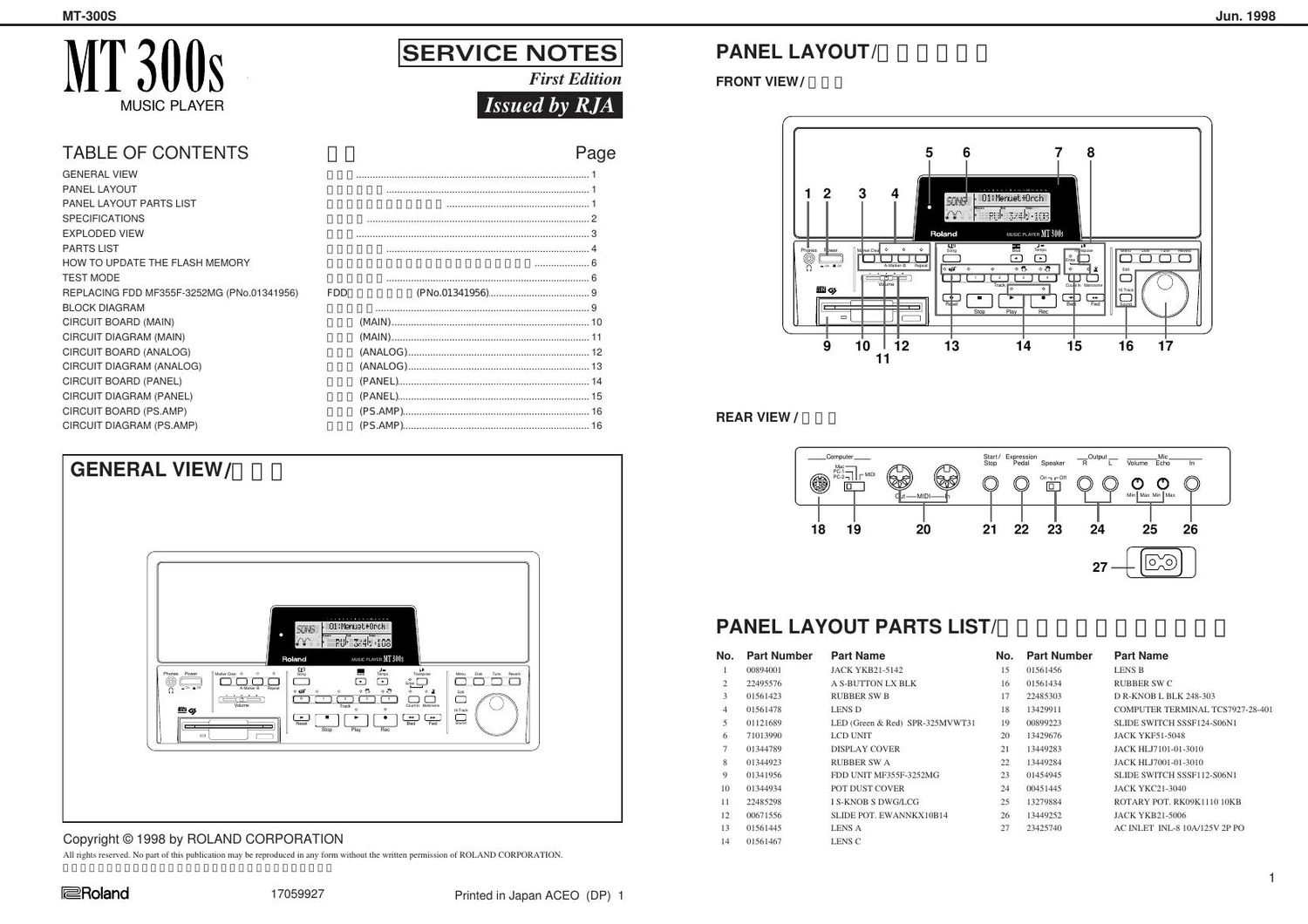

Page 1

MT-300SJun 1998 2 MT300s : Music Player Conforms to GM/GS l Max.Polyphony 64 voices lTones 369 variations (incl.8 drum sets,1 SFX set) lMaster Tuning 415.3 Hz ~ 466.2 Hz (0.1 Hz Step) l Transpose Playback Transpose (-24~+24 Half-steps) l Effects Reverb(8 types),Chorus(8 Types) l Metronome Beat: 2/2,0/4,2/4,3/4,4/4,5/4,6/4,7/4,3/8,6/8,9/8,12/8 Volume:10 levels Metronome Pattern: 11 patterns Sounds: 4 types l Tracks 5/16 tracks l Song 1 song l Note Storage Approx. 30,000 notes l Tempo Quarter note = 20~250 l Resolution 120 ticks per quarter note l Recording Method Realtime (Replace, Mix, Auto PunchIn,Manual PunchIn, Loop, Tempo) Beat Map l Edit Copy, Quantize, Delete, Insert, Erase Transpose, Part Exchange, Note Edit, PC Edit l RhythmPattern 30 types l Control Song Select, Reset, Stop, Play, Rec, Bwd, Fwd, All Song Play Track Select, Count In Marker Set, Repeat Tempo Mute < DiskDrive / Disk Storage>3.5 inch Micro Floppy Disk l Disk Format 720K bytes(2DD) 1.44M bytes(2HD) l Songs max. 99 songs l Note Storage approx. 120,000 notes(2DD) approx. 240,000 notes(2HD) l Playable Software Standard MIDI File (Format0/1) Roland Original Format(i-Format) l Save Standard MIDI File (Format0) Roland Original Format(i-Format) SPECIFICATIONS l Rated Power Output 10 W x2 l Speakers 10cm x 2 l Display Beat Indicator Large custom LCD, Bouncing Ball l Language English/Japanese l Lyrics Yes(Built-in Display, MIDI Out) l Control Volume Microphone Volume, Microphone Echo Speaker switch, Reverb switch(OneTouch 3 types) lConnectors Output jacks (Stereo, RCA-Pin) Microphone jack(with echo) Headphone jack (StereoMini) MIDI IN /MIDI OUT connectors Computer connector Expression jack Start/Stop jack lPower supply AC117V/AC230V/AC240V l Power Consumption 34W(117V)/34W(230V)/34W(240V) l Dimensions 394 mm(W) x 223 mm(D) x 207 mm(H) 15-9/16(W) x 8-13/16 (D) x 8-3/16(H) l Weights 4.2 kg / 9lbs 5 oz l Accessories Owner's manual English (71120834) Power cord AC100V: (13499219) AC117V: (13499220) AC230V: (13499221) AC240VA: (13499222) Euro Converter Plug (00905234) Music File Disk English (01456401) MIDI cable (23485228) s7 .5T

Page 2

MT-300SJun. 1998 3 No. Part No. Part Name q01344789 DISPLAY COVER w71013356 FRONT PANEL ASSY DOM (for Japan only) 71120812 FRONT PANEL ASSY EXP (except for Japan) e22485298 I S-KNOB S DWG/LCG r22485303 D R-KNOB L BLK 248-303 t71013923 ENCODER BOARD ASSY y71013901 PHONES BOARD ASSY u22495576 A S-BUTTON LX BLK i71013867 POWER SW BOARD ASSY o01344934 POT DUST COVER !071013945 VOLUME BOARD ASSY !101561478 LENS D !201561445 LENS A !301561467 LENS C !401561456 LENS B !501561423 RUBBER SW B !601344923 RUBBER SW A !701561434 RUBBER SW C !871013878 PANEL BOARD ASSY !901344790 SPEAKER FULL-RANGE CR100037-01 @071013990 LCD UNIT @171013934 LED BOARD ASSY @200909067 HANDLE HOLDER @301344912 REAR PANEL @401344967 FOOT @500904434 HANDLE @601341956 FDD UNIT MF355F-3252MG @771013389 MAIN BOARD ASSY @871013889 ANALOG BOARD ASSY @971013290 INLET BOARD ASSY #001344878 CHASSIS #101345078 SWITCHING REGULATOR A1KW1AA262 #271013890 AMP BOARD ASSY #322165134 COLLAR #422265242 DD INSULATOR #540017378 COATING CLIP CS-7 #601455090 HANDLE CUSHION [Screw] No. Part No. Part Name A40011278 Binding Taptite P 3´8 ZC B40012478 Binding Taptite P 4´8 ZC C40011267 Binding Taptite P 3´6 ZC D40011334 Binding Taptite P 3´12 BZC E40340067 Pan Cup Taptite B 3´8 BZC F40011067 Binding Taptite B 3´8 ZC G40012878 Pan Machine Screw W/SW+PW M3´10 ZC H40011312 Binding Taptite P 3´8 BZC I40011501 Pan Machine Screw W/SW M3´8 BZC A B C D E F G H I J K L M N O P Q R S T U V EXPLODED VIEW IMPORTANT: After replacing wiring or shifting them for replacing purpose, restore original clamping and dressing. / ür $ OyA .gsp
