ROLAND MT 300

This is the 16 pages manual for ROLAND MT 300.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 16

Extracted text from ROLAND MT 300 (Ocr-read)

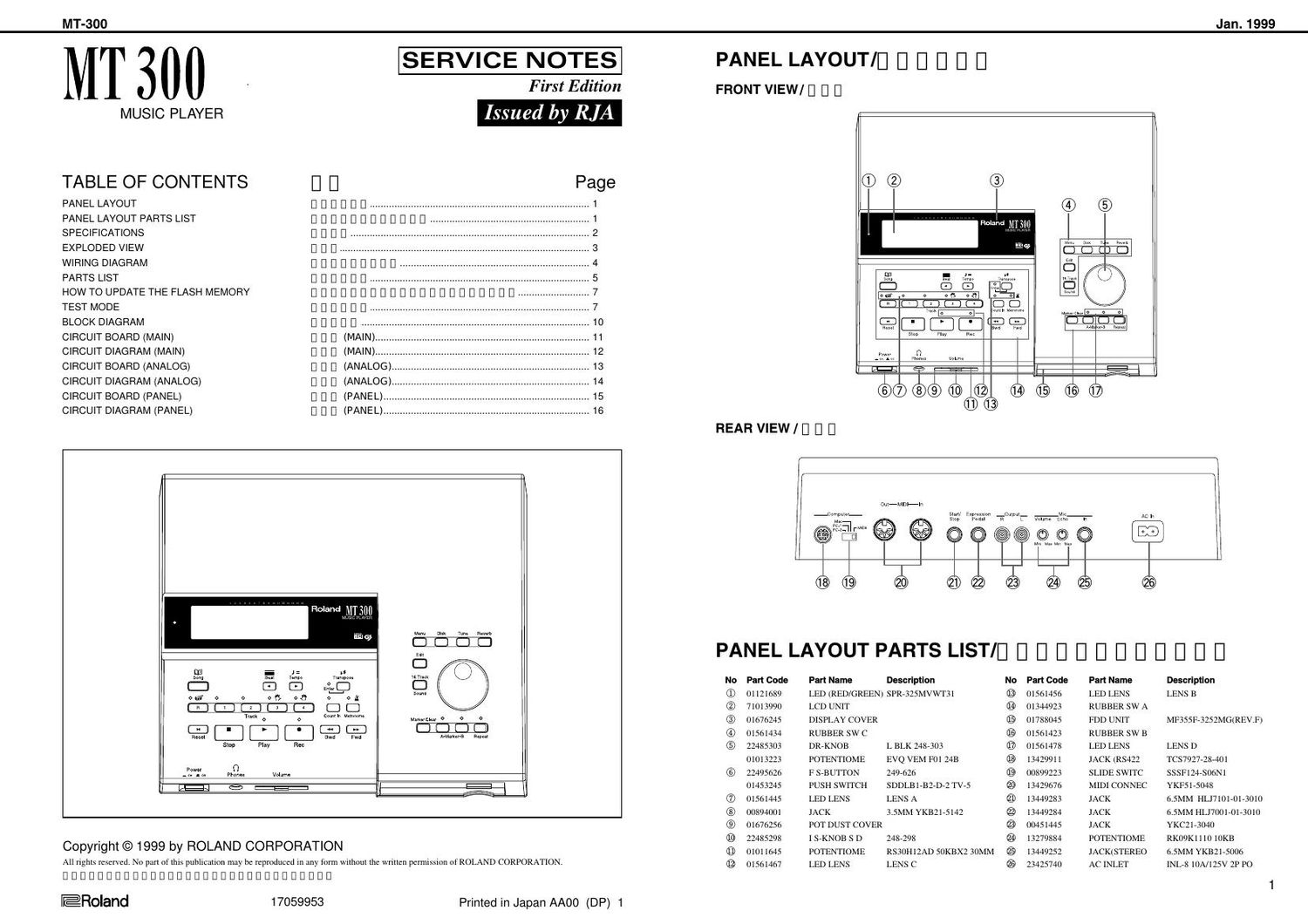

Page 1

MT-300Jan. 1999 2 MT300s : Music Player Conforms to General MIDI System and GS Format Max.Polyphony 64 voices Tones 369 variations (including 8 drum sets, 1 SFX set) Master Tuning 415.3 Hz--466.2 Hz (0.1 Hz Steps) Transpose Playback Transpose (-24--+24 Half-steps) Effects Reverb (8 types), Chorus (8 Types) Metronome Beat: 2/2, 0/4, 2/4, 3/4, 4/4, 5/4, 6/4, 7/4, 3/8, 6/8, 9/8, 12/8 Volume: 10 levels Metronome Pattern: 11 patterns Sounds: 4 types Tracks 5/16 tracks Song 1 song Note Storage Approx. 30,000 notes Tempo Quarter note = 20--250 Resolution 120 ticks per quarter note Recording Method Realtime (Replace, Mix, Auto PunchIn, Manual PunchIn, Loop, Tempo) Beat Map Edit Copy, Quantize, Delete, Insert, Erase Transpose, Part Exchange, Note Edit PC Edit Rhythm Pattern 30 types Control Song Select, Reset, Stop, Play, Rec, Bwd, Fwd, All Song Play Track Select, Count In Marker Set, Repeat Tempo Mute 3.5 inch Micro Floppy Disk Disk Format 720 K bytes (2DD) 1.44 M bytes (2HD) Songs max. 99 songs Note Storage approx. 120,000 notes (2DD) approx. 240,000 notes (2HD) Playable Software Standard MIDI Files (Format0/1) Roland Original Format (i-Format) Save Standard MIDI Files (Format0) Roland Original Format (i-Format) SPECIFICATIONS Display Beat Indicator Large custom LCD, Bouncing Ball Language English/Japanese Lyrics Yes (Built-in Display, MIDI Out) Control Volume Microphone Volume, Microphone Echo Reverb switch (OneTouch 3 types) Connectors Output jacks (Stereo, RCA-Pin) Microphone jack (with echo) Headphone jack (Stereo Mini) MIDI IN/MIDI OUT connectors Computer connector Expression Pedal jack Start/Stop jack Power supply AC 117 V/AC 230 V/AC 240 V PowerConsumption 9 W (117 V)/10 W (230 V)/10 W (240 V) Dimensions 307 (W) × 266.5 (D) × 76.5 (H) mm 12-1/8 (W) × 10-1/2 (D) × 3-1/16 (H) inches Weight 2.3 kg/5 lbs-2 oz Accessories Owner's manual (ENGLISH : 71233345) (JAPANESE : 71231667) DEMO SONG LIST (40340056) Power cord AC CORD SET (117V) (13499220) AC CORD SET (230V) (13499221) AC CORD SET (240VA) (13499222) Music File Disk (01456401) MIDI cable (23485228) Audio cable (00787534) Conversion plug ( × 2) (17049560) Option MIDI IMPLEMENTATION (ENGLISH : 17048917) (JAPANESE : 17048916) s7 .5Ûá´¿«~Óèà »;o¼ (.

Page 2

MT-300Jan. 1999 3 A B C D E F G H I J K L M N O P Q R S T U V EXPLODED VIEW [Part] No. Part Code Part Name q01676245 DISPLAY COVER w01785890 TOP CASE for JAPANESE 01676212 TOP CASE for ENGLISH e22485303 DR-KNOB L BLK 248-303 r01676234 CHASSIS HOLDER t71013990 LCD UNIT y01676256 POT DUST COVER u01561445 LED LENS LENS A i01561467 LED LENS LENS C o01561456 LED LENS LENS B !001561434 RUBBER SW C !101561423 RUBBER SW B !201344923 RUBBER SW A !371231756 PANEL R BOARD ASSY !471231723 LED BOARD ASSY !571231745 PANEL L BOARD ASSY !671231734 ENCODER BOARD ASSY !701451678 SWITCHING REGULATOR KW1AA265 !871231767 ANALOG BOARD ASSY !901788045 FDD UNIT MF355F-3252MG(REV.F) @001564234 DD HOLDER @171231989 MAIN BOARD ASSY @271231778 PHONE BOARD ASSY @301676223 BOTTOM COVER @401235378 FOOT @522140236 ARM @622485298 I S-KNOB S DWG/LCG 248-298 @740017378 COATING CLIP CS-7 @822265242 DD INSULATER 226-242 @922165134 COLLAR 216-134 #001561478 LED LENS LENS D #101896656 WIRING (W20) FDD 34P #201785778 INSULATING SHEET #301676312 ARM CUSHION #401675689 WIRING W13 FDDPWR 26AWG #501675678 WIRING W6 LCD-MAIN [SCREW] No. Part Code Part Name A40011056 SCREW M3×6 BINDING B-TIGHT ZC B40011101 SCREW M3×8 BINDING TAPTITE-B FE BZC C40011278 SCREW M3×8 BINDING P-TITE FE ZC D40011312 SCREW M3×8 BINDING P-TITE FE BZC E40011501 SCREW M3×8 SEMS. PAN HEAD FE BZC F40012878 SCREW M3×10 PAN SEMS FECM W/SW+PW IMPORTANT: After replacing wiring, #2 INSULATING SHEET or shifting them for replacing purpose, restore original clamping and dressing. @6 @5 @2 @7 #3@7 @4 @3 @1 #2 !8 !7 q w e r @6 @8 @9 !3 !0 !1 !2 !5 #5 !4 t y u i o !9 #1 #4 #0 @7 !6 D E A A A A B D C C C F A C CC E / ür $ OyA .gsp
