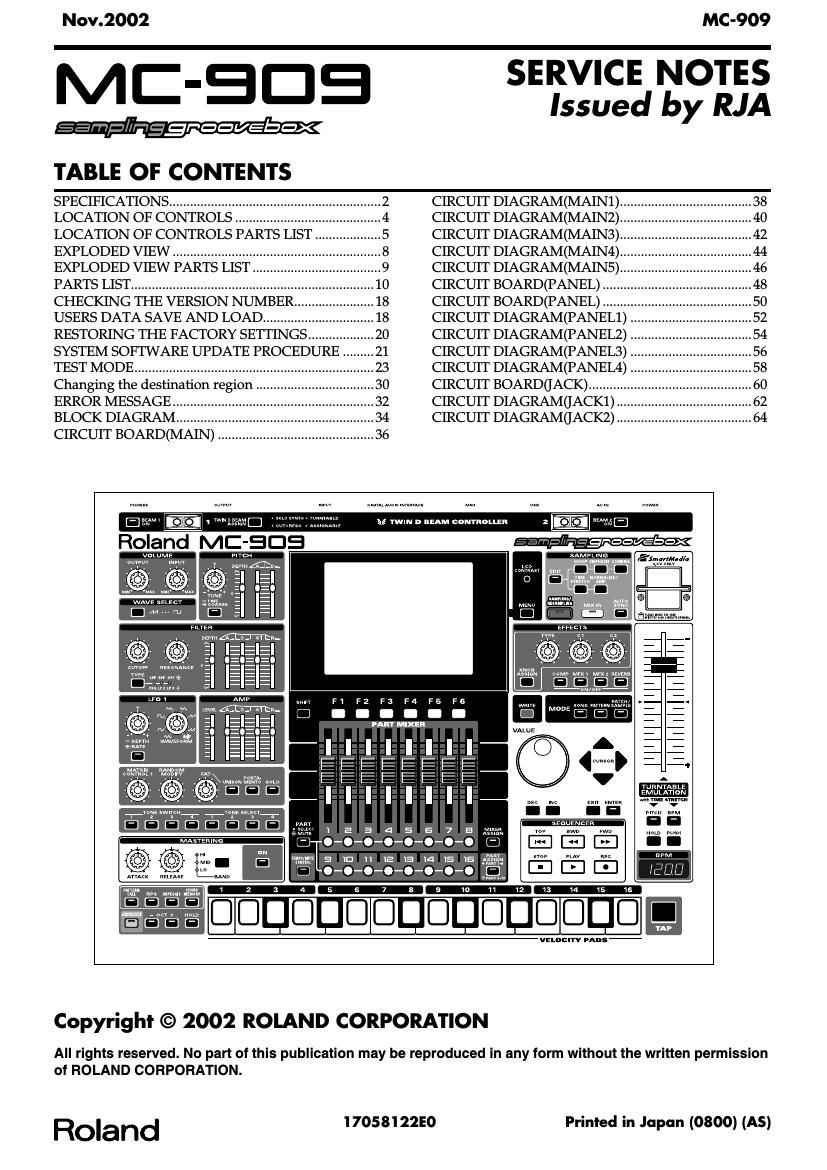

ROLAND MC 909

Page 1

NOV.2002

MC-909

MC-SCIS

TABLE OF CONTENTS

SERVICE NOTES
Issued by RJA

SPECIFICATIONS ............................................................ 2
LOCATION OF CONTROLS .............................. 4
LOCATION OF CONTROLS PARTS LIST
EXPLODED VIEW ........................
EXPLODED VIEW PARTS LIST ..
PARTS LIST ................................................
CHECKING THE VERSION NUMBERI
USERS DATA SAVE AND LOAD .........
RESTORING THE FACTORY SETTINGS ............
SYSTEM SOFTWARE UPDATE PROCEDURE
TEST MODE ......................................
Changing the destination region ,,,,,
ERROR MESSAGE
BLOCK DIAGRAM
CIRCUIT BOARD(MAIN) I

CIRCUIT DIAGRAM(MAIN1) ..................................... 38
CIRCUIT DIAGRAM(MAIN2) ,,,,,
CIRCUIT DIAGRAM(MAIN3).
CIRCUIT DIAGRAM(MAIN4).
CIRCUIT DIAGRAM(MAIN5) ,,,,,
CIRCUIT BOARD(PANEL) ..
CIRCUIT BOARD(PANEL) ..
CIRCUIT DIAGRAM(PANEL1) ,,
CIRCUIT DIAGRAM(PANEL2) ,,
CIRCUIT DIAGRAM(PANEL3) ,,
CIRCUIT DIAGRAM(PANEL4) ,,
CIRCUIT BOARD(IACK) ..............
CIRCUIT DIAGRAMGACKl) ,,,,,,
CIRCUIT DIAGRAMOACKZ) ,,,,,,

puma

. I .mflm.

MASTERING

In]

AYYAEK mm: am:

3

V vwm n BEAM CONTROLLER

vuocurv vADS

Copyright © 2002 ROLAND CORPORATION

All rights reserved. No part of this publication may be reproduced in any form without the written permission

Of ROLAND CORPORATION.

Roland

'I 7058122E0

Printed in Japan (0300) (AS)

Page 2

Nov.2002

SPECIFICATIONS

M0909: Sampling groovebox

Sound Generator Section

Maximum Polyphony o4 voices
Sampling Rate 44.1 kHz
Parts 16 (Main) + 15 (RPS)
Waves 693
Patches

Preset 800

User 256

Card 256
Rhythm Set

Preset 72

User 128

Card 12:;

Sampling Section

Audio Format 16-bit linear
(File Type: WAV/AIFF)

Maximum Polyphony 64 voices
Sampling Rate 44.1 kHz (tixed)
Sampling Time

- Lntemal memory (16 MB) only

mono: 180 sec. approx. (stereo: 90 sec. approx.)
- with DLMM (256 MB)

mono: 51 min. approx. (stereo: 25.5 min. approx.)

Samples
User 2,000
Card 7,000 (128 MB SmartMedia)

Sequencer Section

Parts 16 + Tempo /Mute Control
Resolution 480 ticks per quarter note
Tempo 5-300
Maximum Note Storage approx. 1,300,000 notes
Patterns
Preset 215
RPS 440
User 200
Card 999
Recording Mode Realtimc, TR-REC, Step
Songs 50
Arpeggio Style
Preset 128
User 123
Chord Memory
Preset 64
User 123
RPS Set 50
Pattern Set 50

Effects Section

Reverb 1 (4 types)
Compressor 1 (1 type)
Multi-ettects (MFX) 2

(MFXI: 38 types)
(MFXZ: 47 types)

Pitch Shitter

(tor external input)1 (1 type)

Mastering Section

3-bands Compressorl (1 type)

Expansion Slot

Wave Expansion Board SRX Series: 1 slot

DIMM: 1 slot
Number ot pins: 168-pin
Speed: 100 MHz (PC100 CL=2)

133 MHz (PC133 CL=3)
Voltage: 3.3 v
Capacity: 128 MB

25c. MB

Board height: 38 mm nr 1955

External Memory

SmartMedla card: 1 slot
8MB/16MB/3ZMB/64MB/128MB (3,3V)

Controllers, Display
Display
QVCA LCD
BPM Display: 7 segment 4 character (LED)
Control Knob
Pitch: 1 (FINE TUNE/COARSE TUNE)
Filter; 2 (CUTOFF, RESONANCE)
LFO 1; 2 (DEPTH/RATE, WAVEFORM)
Sound Others; 3 (FAT, RANDOM MODIFY, MATRIX CONTROL 1)
Effects: 3 (TYPE, C1, C2)
Mastering; 2 (ATTACK, RELEASE)
OUTPUT Volume; 1
INPUT Volume: 1
Control Slider
Envelope; 13 (Pitch/Pilter/Amp)
Part Mixer; 8
Turntable Emulation (100 mm): 1
Other Controllers
Twin D Beam Controller
Velocity Pads

Connectors

MIX OUTPUT lacks (L (MONO), R)
DIRECT 1 OUTPUT Jacks (L (MONO), R)
DIRECT 2 OUTPUT Jacks (L (MONO), R)
lPUT Jacks (L (MONO), R)
Headphones Jack
MIDI Connectors (IN, OUT)
USB Connector
Digital Audio Interface

IN/OUT (OPTICAL, COAXIAL)
AC Inlet

Power Supply

AC 117 V, AC 230 V, AC 240 V

Power Consumption
20 W

Dimensions

491 (W) x 386 (D) x 123 (H) mm

19-3/8 (W) x 15-1/4 (D) x 4-7/8 (H) inches
Weight

6.0 kg

13 lbs 4 02

Accessories

Owners Manual English(#72128501)
Japanese(tt72128389)
Sample Data (Audio) war-wet)
