ROLAND GT 6

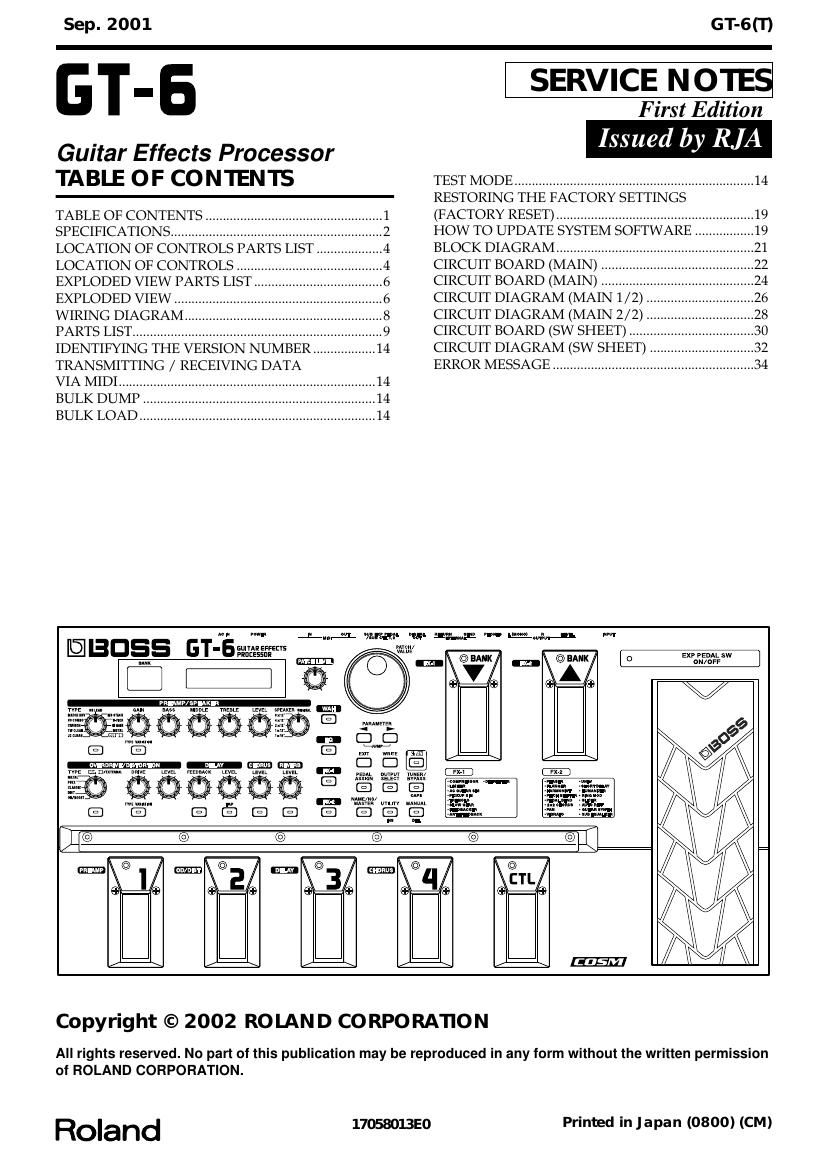

This is the 26 pages manual for ROLAND GT 6.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from ROLAND GT 6 (Ocr-read)
Page 1
2 Sep. 2001 SPECIFICATIONS GT-6: Guitar Effects Processor - AD Conversion 24 bit + AF method - DA Conversion 24 bit - Sampling Frequency 44.1 kHz - Program Memories 340: 140 (User) + 200 (Preset) - Nominal Input Level INPUT: -10 dBu RETURN: -10 dBu - Input Impedance INPUT: 1 M ohms RETURN: 220 k ohms - Nominal Output Level OUTPUT: 0 dBu SEND: -10 dBu - Output Impedance OUTPUT: 2 k ohms SEND: 2 k ohms - Digital Output EIAJ CP1201, S/P DIF - Dynamic Range 100 dB or greater (IHF-A) - Controls < Front Panel > (PREAMP/SPEAKER) TYPE knob GAIN knob BASS knob MIDDLE knob TREBLE knob LEVEL knob SPEAKER knob On/Off button TYPE VARIATION button (OVERDRIVE/DISTORTION) TYPE knob DRIVE knob LEVEL knob On/Off button TYPE VARIATION button (DELAY) FEEDBACK knob LEVEL knob On/Off button TAP button (CHORUS) LEVEL knob On/Off button (REVERB) LEVEL knob On/Off button (WAH) On/Off button (EQ) On/Off button (FX-1) On/Off button (FX-2) On/Off button (MASTER) PATCH LEVEL knob PARAMETER buttons L/REXIT button WRITE button EZ TONE button PEDAL ASSIGN button OUTPUT SELECT button TUNER/BYPASS button NAME/NS/MASTER button UTILITY button MANUAL button Number pedals1-4 BANK pedals (Up/Down) CTL pedal Expression pedal Expression pedal switch PATCH/VALUE dial < Rear Panel > OUTPUT LEVEL knob POWER switch Display 16 characters, 2 lines (backlit LCD) 2 characters, 7 segment LED Connectors INPUT jack OUTPUT jacks L (MONO)/R PHONES jack SEND jack RETURN jack DIGITAL OUT connector (coaxial) SUB EXP PEDAL/SUB CTL PEDAL1,2 jack MIDI connectors IN/OUT AC Adaptor jack - Power Supply AC 14 V; Supply AC adaptor (BOSS BRC series) - Current Draw 800 mA - Dimensions 515 (W) x 261 (D) x 75 (H) mm 20-5/16 (W) x 10-5/16 (D) x 3 (H) inches - Weight 4.7 kg/10 lbs 6 oz (excluding AC Adaptor) - Accessories Owners Manual English (#G6017298) AC Adaptor BRC-120V (#01786223) AC Adaptor BRC-230V (#01786234) AC Adaptor BRC-240V (#01786245) EURO CONVERTER PLUG ECP01-5A (PLUG for 230V) (#00905234) - Options MIDI Implementation English (#17041119) Foot Switch: FS-5U, FS-5L Expression Pedal: EV-5 (Roland), FV-300L + PCS-33 (Roland) Foot Switch Cable: PCS-31 (Roland) (1/4 inches Phone Plug (stereo) - 1/4 inches Phone Plug (mono) x 2) * 0 dBu = 0.775 Vrms * In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
Page 2
3 GT-6(T)
