FEB. 1987 GK-1
GK'II SERVICE NOTES First Edition
SPECIFICATIONS
Weight : 428 g./15 02.
Accessories : Cord for Normal Guitar x 1
Parts for installation
Driver
Owners Manual
GK- awe
m
ZlNOO liNOJ aawwa 531sz
: 67mm
: 24mm
: 113.5mm
: 24mm
: 3mm
(DQ117111
3x6mm Flat Tapping BLK
®

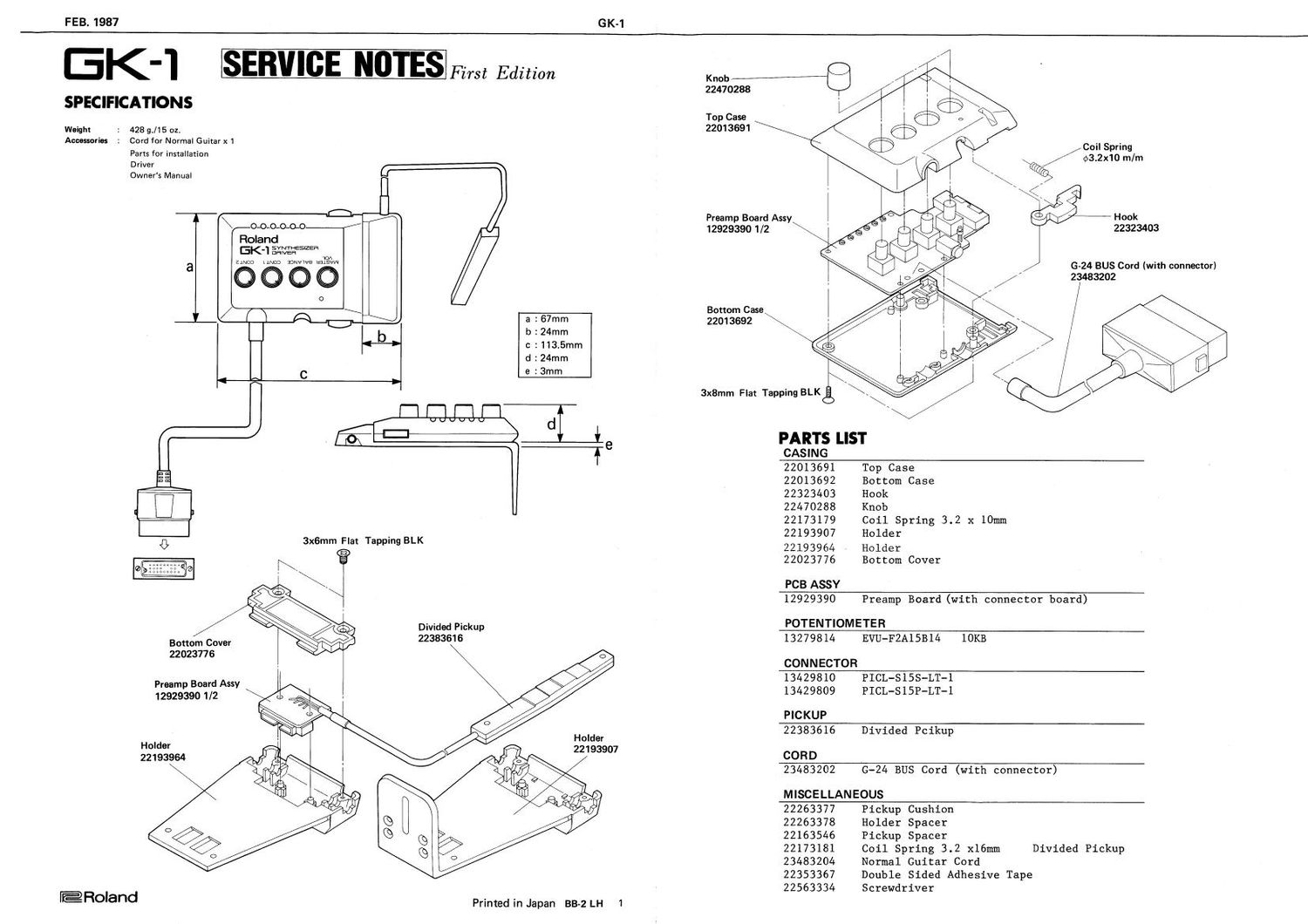

Divided Pickup
Bottom Cover 22383616
22023776
Preamp Board Assy
12929390 1/2
H older
22193964
@ROland Printed in Japan BB~2 LH 1
Knob
22470288
Top Case
22013691
Preamp Board Assy
12929390 1/2
Bottom Case\
22013692
3x8mm Flat Tapping BLKg \\
Coil Spring
\fé/ o3.2x10 m/m
Hook
22323403
6-24 BUS Cord (with connector)
23483202
PARTS LIST
CASING
22013691 Top Case
22013692 Bottom Case
22323403 Hook
22470288 Knob
22173179 Coil Spring 3.2 x 10mm
22193907 Holder
22193964 _ Holder
22023776 Bottom Cover
PCB ASSY
12929390 Preamp Board (with connector board)
POTENTIOMETER
13279814 EVU-F2A15B14 10KB
CONNECTOR
13429810 PICL-SlSS-LT-l
13429809 PICL-SlSP-LT-l
PICKUP
22383616 Divided Pcikup
CORD
23483202 G-24 BUS Cord (with connector)
MISCELLANEOUS
22263377
22263378
22163546
22173181
23483204
22353367
22563334
Pickup Cushion
Holder Spacer
Pickup Spacer
Coil Spring 3.2 x16mm
Normal Guitar Cord
Double Sided Adhesive Tape
Screwdriver
Divided Pickup
