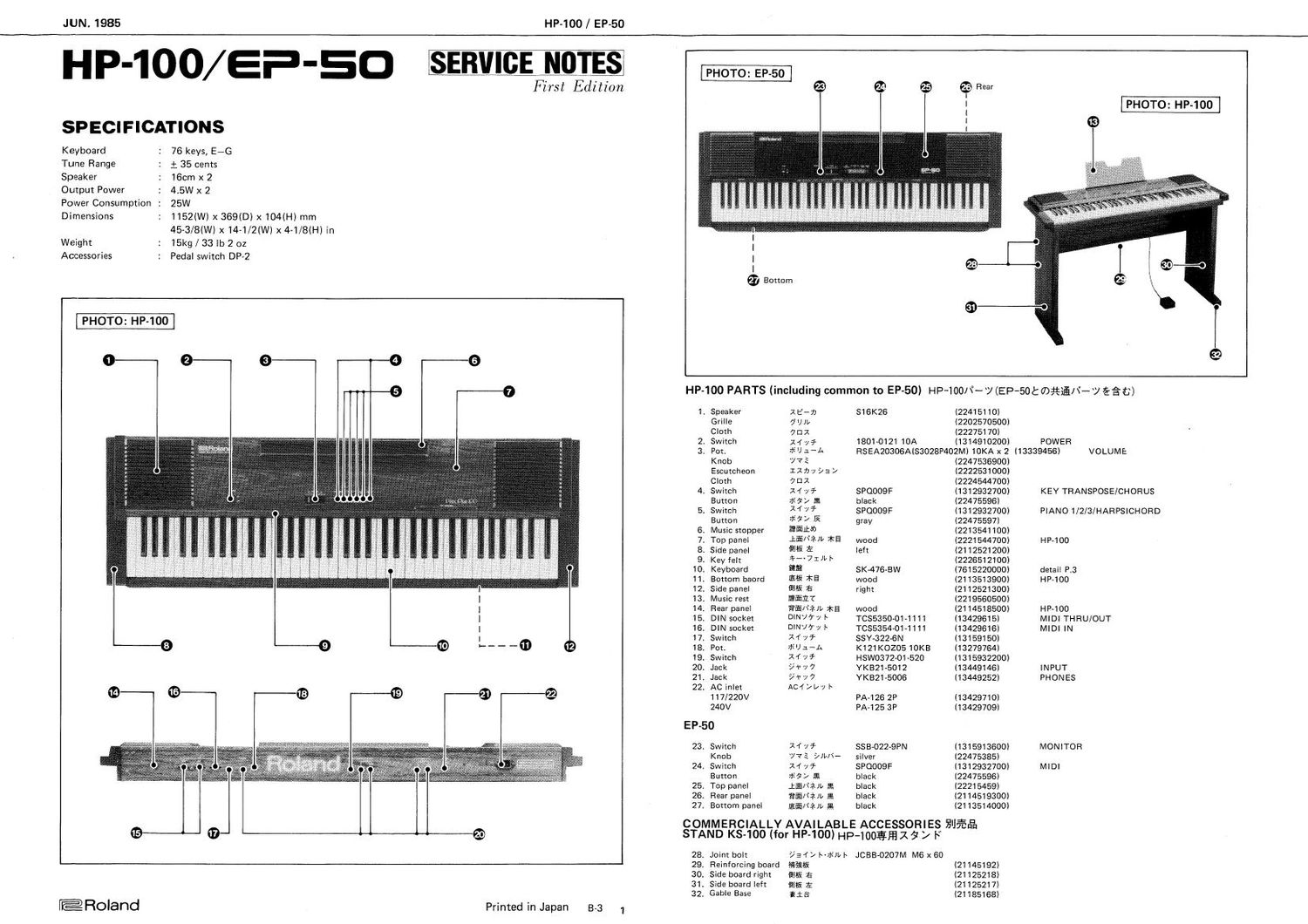

Page 1
JUN. 1985 HP-100 / EP-50
HP-100/EF-So Eli-LITEWS 5-
First Edition
SPECIFICATIONS
Keyboard : 76 keys, E-G
Tune Range : i 35 cents
Speaker : 16cm x 2
Output Power : 4.5W x 2
Power Consumption : 25W
Dimensions : 1152(W) x 369(D) x 104(H) mm
45-3/8(W)x14-1/2(W)x 4-1/8(H) in
Weight : 15kg / 33 lb 2 02
Accessories : Pedal switch DP<2
Bottom
PHOTO: HP-100
0 0
HP-100 PARTS (including common to EP-50) HP-100/\"-y(EP-50<:(7)#.i§/\°-W&§t;)
1. Speaker zIa-n S16K26 (22415110)
Grille 7'0 )1 (2202570500)
Cloth 71:11 (22275170)
2. Switch 249; 1801-0121 10A (1314910200) POWER
3. Pot. «1101-4 RSEA20306A(83028P402M) 10KA x 2 (13339456) VOLUME
Knob /75 (2247536900)
Escutcheon 11717 92 / (2222531000)
Cloth 71:; (2224544700)
4. Switch 11-72 SP0009F (1312932700) KEY TRANSPOSE/CHORUS
Button draw 5 black (22475596)
5. Switch My? seooosF (1312932700) PIANO1/2/3/HARPSICHORD
Button 3'17} W gray (22475597)
6. Music stopper 1min (2213541100)
7. Top panel iE/W/It *5 wood (2221544700) HP-100
8. Side panel M15 E left (2112521200)
9. Key felt *71 (2226512100)
10. Keyboard Mi SK-476»BW (7615220000) detail F.3
11. Bottom baord 131111 *E wood (2113513900) HP-100
12. Side panel (1115 E right (2112521300)
13. Music rest 11.1mm (2219560500)
14. Rear panel fifi/fi-Jb *E wood (2114518500) HP-100
15. DIN socket DINIrv I T085350-01-1111 (13429615) MIDI THRU/OUT
16. DIN socket Dle/r-y i 1035354-01-1111 (13429616) MIDI IN
17. Switch 112-7- SSY-322-6N (13159150)
18. Pot. fwd-A K121K020510KB (13279764)
19. Switch st0372o1-520 (1315932200)
20. Jack YKB21-5012 (13449146) INPUT
21. Jack YK521-5006 (13449252) PHONES
22. Ac inlet Acww i~
117/220v PA-126 2? (13429710)
240v PA-125 3P (13429709)
EP-50
23. Switch X127- SSB-022-9PN (1315913600) MONITOR
Knob 775 ww- silver (22475385)
24. Switch 217-?- SP0009F (1312932700) MIDI
Button *5 > fi black (22475596)
25. Top panel .hfiflzilb % black (22215459)
26. Rear panel fifi/(iw i black (2114519300)
27. Bottom panel )Kfi/fi-IL Rt black (2113514000)
COMMERCIALLY AVAILABLE ACCESSORIES 5:")??th
STAND KS-100 (for HP-100)HP-100§Ffi Z 5! / F
28. Joint bolt 7a 1 > (tilt i~ JCBB»0207M M6 X 60
29. Reinforcing board fififi (21145192)
30. Side board right (1115 E (21125218)
31. Side board left 0111: £ (21125217)
32. Gable Base an: (21185168)
(@Roland Printed in Japan B-3 1
