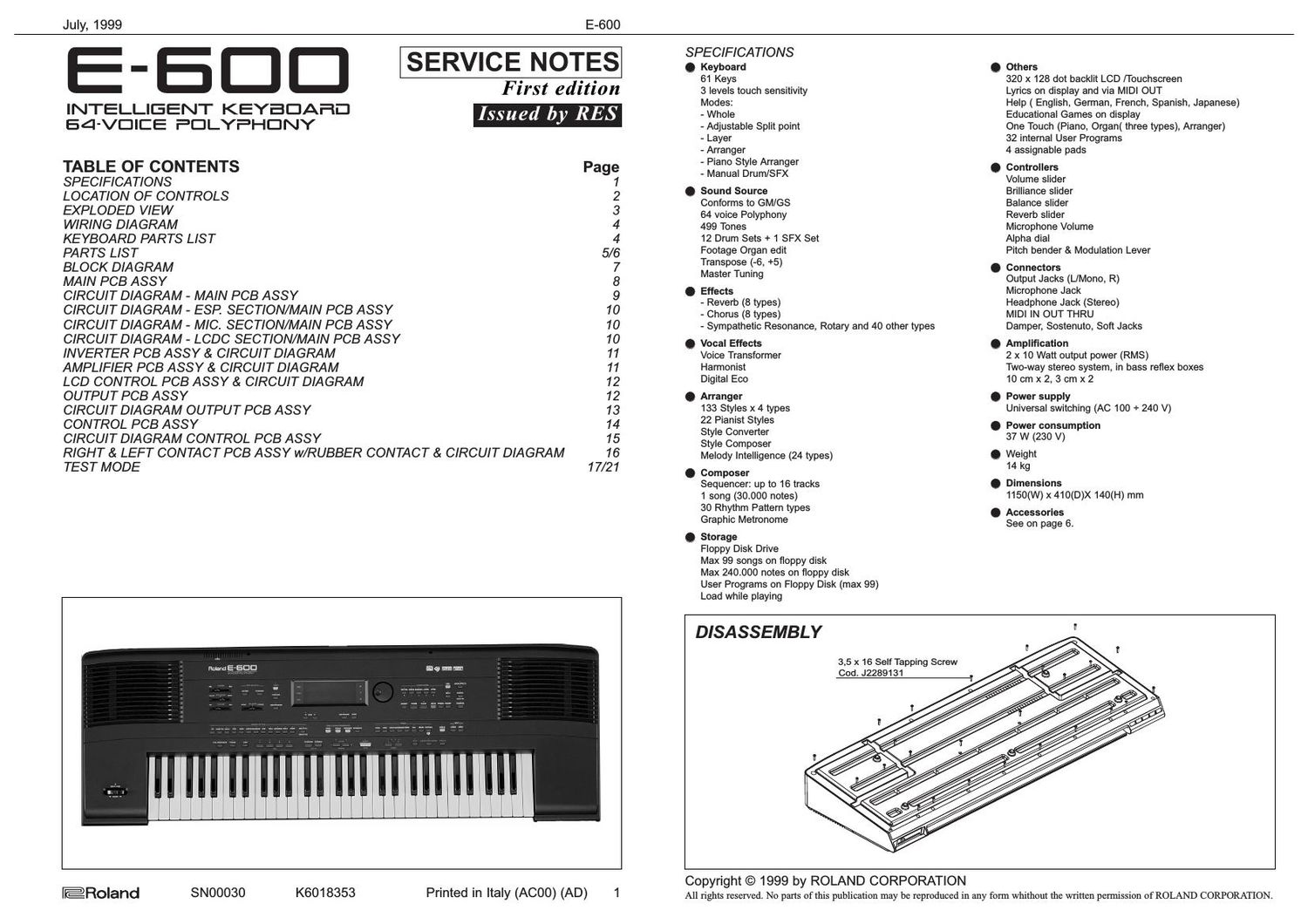

ROLAND E 600

Page 1

July, 1999

E-600

E-SCICI

INTELLIGENT KEYEEIAFIEI
Sd-VDICE FCILYFHCINY

SERVICE NOTES

First edition

Issued by RES

TABLE OF CONTENTS Page
SPECIFICATIONS 1
LOCATION OF CONTROLS 2
EXPLODED VIEW 3
WIRING DIAGRAM 4
KEYBOARD PARTS LIST 4
PARTS LIST 5/6
BLOCK DIAGRAM 7
MAIN PCB ASS Y 8
CIRCUIT DIAGRAM - MAIN PCB ASSY 9
CIRCUIT DIAGRAM - ESP. SECTION/MAIN PCB ASSY 10
CIRCUIT DIAGRAM - MIC. SECTION/MAIN PCB ASSY 10
CIRCUIT DIAGRAM - LCDC SECTION/MAIN PCB ASSY 10
INVERTER PCB ASSY & CIRCUIT DIAGRAM 11
AMPLIFIER PCB ASSY & CIRCUIT DIAGRAM 11
LCD CONTROL PCB ASSY & CIRCUIT DIAGRAM 12
OUTPUT PCB ASSY 12
CIRCUIT DIAGRAM OUTPUT PCB ASSY 13
CONTROL PCB ASSY 14
CIRCUIT DIAGRAM CONTROL PCB ASSY 15
RIGHT & LEFT CONTACT PCB ASSY w/RUBBER CONTACT & CIRCUIT DIAGRAM 16
TEST MODE 17/21

@Roland SN00030

K6018353

Printed in Italy (ACOO) (AD) 1

SPECIFICATIONS
Q Keyboard
61 Keys
3 levels touch sensitivity
Modes:
- Whole
- Adjustable Split point
- Layer
- Arranger
- Piano Style Arranger
- Manual Drum/SFX

Q Sound Source
Conforms to GM/GS
64 voice Polyphony
499 Tones
12 Drum Sets + 1 SFX Set
Footage Organ edit
Transpose (-6, +5)
Master Tuning

Q Effects
- Reverb (8 types)
- Chorus (8 types)
- Sympathetic Resonance, Rotary and 40 other types

Q Vocal Effects
Voice Transformer
Harmonist
Digital Eco

Q Arranger
133 Styles x 4 types
22 Pianist Styles
Style Converter
Style Composer
Melody Intelligence (24 types)

Q Composer
Sequencer: up to 16 tracks
1 song (30.000 notes)
30 Rhythm Pattern types
Graphic Metronome

Q Storage
Floppy Disk Drive
Max 99 songs on floppy disk
Max 240.000 notes on floppy disk
User Programs on Floppy Disk (max 99)
Load while playing

Q Others
320 x 128 dot backlit LCD /Touchscreen
Lyrics on display and via MIDI OUT
Help ( English, German, French, Spanish, Japanese)
Educational Games on display
One Touch (Piano, Organ( three types), Arranger)
32 internal User Programs
4 assignable pads

Q Controllers
Volume slider
Brilliance slider
Balance slider
Reverb slider
Microphone Volume
Alpha dial
Pitch bender & Modulation Lever

Q Connectors
Output Jacks (LIMono, R)
Microphone Jack
Headphone Jack (Stereo)
MIDI IN OUT THRU
Damper, Sostenuto, Soft Jacks

Q Amplification
2 x 10 Watt output power (RMS)
Two-way stereo system, in bass reflex boxes
10cmx2,30mx2

Q Power supply
Universal switching (AC 100 + 240 V)

Q Power consumption
37 W (230 V)
Q Weight
14 kg
Q Dimensions
1150(W) x 410(D)X 140(H) mm

Q Accessories
See on page 6.

DISASSEMBLY

3,5 x 16 Self Tapping Screw

Cod. J2289131

-fl

Copyright © 1999 by ROLAND CORPORATION

All rights reserved. NO parts ofthis publication may be reproduced in any form whithout the written permission ofROLAND CORPORATION.

Page 2

E-600
LOCATION OF CONTROLS

BUTTON mm 11,7 x 6,8 GREY

SILKSCREENED MYLAR

D-RK KNOB BLK BUTTON mm 11,7 X 6,8 GREY

July, 1999

BLACK KNOB W/WHITE INDICATOR cod. 22485192 Cod. K2478226 Cod. K2238125 Cod. 22485303 Cod. K2478226
Roland E - S D D E"IENIEfii G ASS HEFLE LOPPV DISI
INTELLIGENT KEYEDAFIEI - }
sarchIEE F'DLYF'HEINY
O 0
MIN REVERE MAX _PART BALANCE _ DEMO HELP A -C°MPOSER DISK VOCAL EFFECTS
u o o o o o \-
E# ACCOMP KEYBOARD f O RHYTHM WHOLE RAss/Acc LOWER UPPER U
0 O O
MELLOW BR' UANCE 9mm FUNCTION UTILITY . Q Q Q Q Q MENU MARKER
I: EXIT V COUNTIN
v LUME BALANCE 0 0 O O
M'" I WI IMW I mm USER PROGRAM KRESET STOP. PLAY» REC. «BWD FWD» TRANSPOSE
u I I I I "I
III I II II I III I I II IWIIII II
0 O O O
4 PAGE > METRONOME SONG
-MUSIC STYLE TONE _5PLIT_
o o o o o o o o o o o o o °NE TOUCH PROGRAM 0 o O o O o o o O
PUP PIANUSTVLE BALLAD ROCK uLuIEs CDUNTRVBIGBAND/SW LATIN WALTz MARCH/KIDS WORLD SCREEN DISKSTYLE PIANO ORGAN ARRANOER DRUMS/SFX PIANO VIBES ORGANGUITAR/BASSSTRINGS SAX aRAss FANTASIA WHOLE LOWER UPPER
USER STVLE 6}
O O O O O O O O O O O O O O O O O O O
STYLEURCHESTRATDR PHRASE USER 1 2 3 4 TUVARIATIUN TDORIGINAL INTRO START - stc MELODVINTELLIGEN E EFFECTS
U U I I I I I I I I I I I I II I I I2 E U U
FILL IN ENDING STOP TEMPO

BUTTON mm 11,7 X 6,8 BLACK

Cod. K2478220 Cod. K2478219

LED DIODE TLHG4401-GREEN cod. 15029320R|
LED DIODE TLHR4401-RED cod. 15029284R|

REAR VIEW

BUTTON mm 17,3 X 8,3 BLACK

MIDI
OUT

THRU

BUTTON mm 11,7 X 6,8 GREY
Cod. K2478226

DAMPER

JACK SOCKET YKB 21-5006 (13449252)

PEDALS PHONES

SOSTENUTO

SOFT

F" AC 1nn-ZlaV~Salson|jl fl

I/J/

BUTTON mm 24,7 X 8,3 GREY

Cod. K2478218

OUTPUT
r STEREO -l
I. / MONO

'\

HI

BUTTON mm 11,7 x 6,8 RED
Cod. K2478225

POWER SWITCH KNOB N.001 BLACK (22488183)

5'!) MODEL I:I K17 II (D
I SERIAL NO.I:IE@I I W , W
\KVRDLAND EUROPE spa MADE INIYALYJ 7:7////I 77:?/ \\\\\j V /;//I
MS MS (a) DIGITILAPPAWS WIRES W 7
CANADIAN INTERFERENCECAUSING EQUIPMENT REGULATIONS
-CE-r APPAREIL NUMERIOUE DE LACLASSE (B) RESPEcrE LE
REGLEMENT SUB LE MATERIEL EROUILLEUR DU CANADA
DIN SOCKET 3Pz YKF51-5046 JACK SOCKET
(13429273) HLJ0520-01-11O
(13449125)
