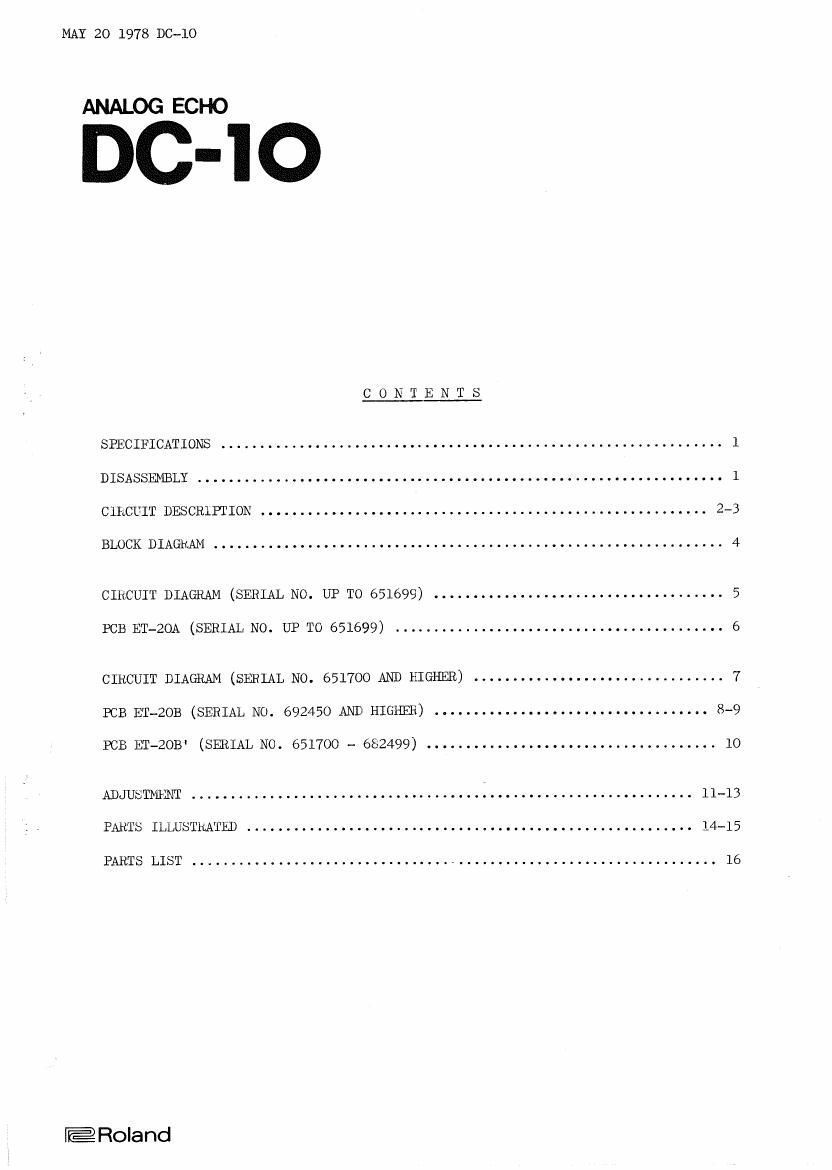

This is the 18 pages manual for ROLAND DC 10.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from ROLAND DC 10 (Ocr-read)
Page 2
SPECIFICATIONS / DISASSEMBLY MAY 20 1978 DC-lO
SPECIFICATIONS
INPUT ............ Input Jack .. ..... ........... 1
Volume Control ............................... 1
Input Level / Impedance... -50dB(3.l6mV)/4.7Kohm
-3Sd_B(17-8mV)/470Kohm
-20dB(lOOmV) /47OKohm
OUTPUT ........... Output Jack D+E ( Direct) ... ........ ......... 1
Echo ....... ....... ........................... 1
Output Level / Impedance . . . . .
H: -20dB(lOOmV)/below lKohm
L: ~35dB(l7.8mV)/below 1Kohm
ECHO ............. Echo Volume Control ................... ..... .. 1
Repeat Rate Control ......... ................. 1
Intensity Control ...... ... 1
Delay Time Control ................ (20 -- 400mS)
Frequency Response (10 - LSKHZ)
OTHERS ........... Echo ON/OFF Footswitch Jack ...... ........... 1
Peak LevelLamp .... ............ .............. 1
Power Pilot Lamp........... ..... ............. 1
Power Switch ..... ............................ l
DIMENSIONS ................... .......... 340(w) x 95(H) x 160(D)mm
13.5(W) x 3.8(H) x 6.3(D)in
WEIGHT ............................ ........ ......... 2.8kg, 6.2 lbs.
POWER CONSUMPTION ................................... 5w(100/117V)
4w(220/24ov)
ACCESSORY ................................. Connection Cord (2.5m)
D ISASSEMBLY
To disassebmle COVER N0.154, remover FOUR SCREWS
(binding head screw, 4 x 8, Br) at the bottom.
Four screws at the sides (binding head screwy
4 x 87 Br) need not be removed for disassembling
the cover.
1 {E Roland
