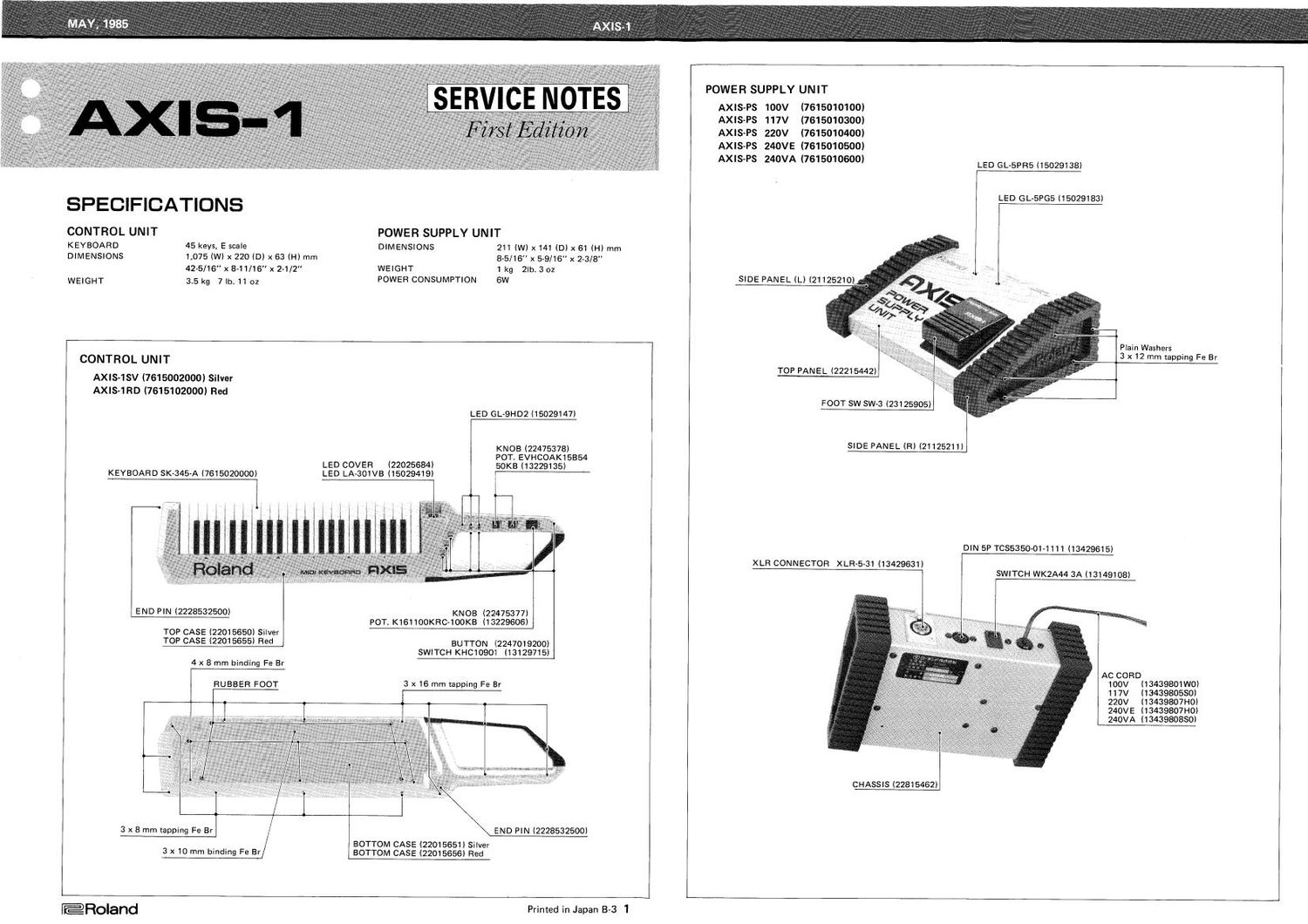

MAY, 1985
POWER SUPPLY UNIT
AXIS-PS 100V (7615010100)
AXIS-PS 117V (7615010300)
AXIS-PS 220V (7615010400)
AXIS-PS 240VE (7615010500)
AXIS-PS 240VA (7615010600)
LED GL-5PR5 (15029138)
LED GL-5PG5 (15029183)
SPECIFICATIONS
CONTROL UNIT POWER SUPPLY UNIT
KEYBOARD 45 keys, E scale DIMENSIONS 211 (W) x 141 (D) x 61 (H) mm
DIMENSIONS 1,075 (W) x 220 (D) x 63 (H) mm 8-5/16" X 5-9/16 x 2-3/8"
425/16" x 8-11/16" x 2-1/2 WEIGHT 1 k9 21113 OZ
WEIGHT 3.5 kg 7 lb, 11 oz POWER CONSUMPTION 6W SIDE PANEL (L) (21125210)
Plain Washers
3 x 12 mm tapping Fe Br
CONTROL UNIT
AXIS-18V (7615002000) Silver
AXIS-1RD (7615102000) Red
TOP PANEL (22215442)
FOOT SW SW-3 (23125905)
LED GL-9HDZ (15029147)
KNOB (22475378) SIDE PANEL (FI) (21125211)
POT. EVHCOAK15B54
LED COVER (22025634) 50KB (13229135)
KEYBOARD SK-345-A (7615020000) LED LA~301VB (15029419)
DIN 5P TCSS350-01»1111 (13429615)
XLR CONNECTOR XLR-5-31 (13429631)
SWITCH WK2A44 3A (13149108)
END PIN (2228532500) KNOB (22475377)
POT. K161100KRC-100KB (13229606)
\
TOP CASE (22015650) Silver
TOP CASE (22015655) Red
BUTTON (2247019200)
SWITCH KHC10901 (13129715)
4 x 8 mm binding Fe Br
AC CORD
100V (1 3439801 W0)
117V (1343980550)
220V (13439807H0)
240VE (13439807H0)
240VA (1343930850)
RUBBER FOOT 3 x16 mm tapping Fe Br
CHASSIS (22815462)
3 x 8 mm tapping Fe Br END PIN (2228532500)
BOTTOM CASE (22015651) Silver
BOTTOM CASE (22015656) Red
3 x 10 mm binding Fe Br
@RO'and Printed in Japan B-3 1
