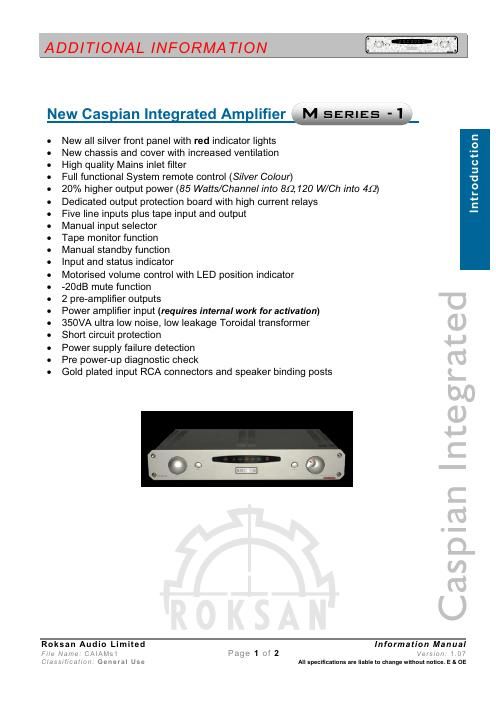

Page 1

Roksan Audio Limited Information Manual File Name: CAIAMs1 Page 2 of 2 Version: 1.07 Classification: General Use All specifications are liable to change without notice. E & OE A DDITI O NAL INF O RMATI O N ROKSAN The new look Caspian Integrated Amplifier benefits from many superior quality components providing wider bandwidth, lower distortion and more dynamic range for enhanced performance. Improved ventilation for cooler running allows longer periods of increased sound level before thermal protection cut out point. Thanks to its new higher power output devices, high specification coupling capacitors, new signal and driver transistors and improved power supply it has deeper and tighter bass, more open mid range and smoother more detailed top end and better control over the loudspeakers than its predecessor. All this combined with precise timing and enhanced sound staging has redefined the performance of this world wide acclaimed amplifier. With its new classic and timeless aesthetics the Caspian M SERIES- 1 is an integrated amplifier in a class of its own. Line Inputs 5 plus Tape Input Impedance 47 kΩ Input Sensitivity (70W) Line 240mV Line Outputs Tape, Preamplifier (x2) Output Voltage 240mV (Tape Out) 700mV (Pre Out) Power Outputs Loudspeaker, L & R Output Power >85 Watts, into 8Ω both channels driven >120 Watts, into 4Ω both channels driven Power Supply 350VA Ultra Low Noise Toroidal Transformer 4 Regulated Supply Rails Current Output 50 Amps Peak to Peak Damping Factor >140 (8Ω) Frequency response -3dB, <1Hz – 90kHz Gain 40dB Overall (Pre & Power) 9.3dB Preamplifier 30.7dB Power Amplifier Harmonic Distortion 0.002% 1kHz, 0.015% 20kHz 10W - 8Ω 0.0025% 1kHz, 0.03% 20kHz 50W - 8Ω Signal to Noise Ratio Line 108dBa (ref. 500mV) 85dBa (ref. 1W, 8Ω) Power Source 100V – 120V 50Hz / 60Hz 220V – 240V 50Hz / 60Hz (via Mains inlet filter) Power Consumption < 230 W Dimension 432 x 330 x 70 (W x D x H) mm 432 x 330 x 80 (including feet) Weight 12 Kg SPECIFICATIONS Caspian Integrated Amplifier
