Roksan caspian m 1 cd owners manual

Page 1

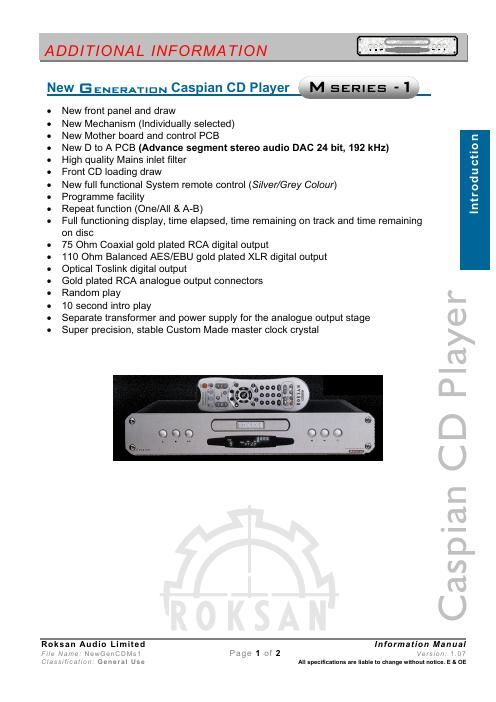

Roksan Audio Limited Information Manual File Name: NewGenCDMs1 Page 2 of 2 Version: 1.07 Classification: General Use All specifications are liable to change without notice. E & OE A DDITIONAL INFORMATION ROKSAN The new G eneration Caspian CD Player utilises a new Mechanism, Mother board, Control PCB and new DAC PCB. The mechanisms are all individually selected to ensure super performance. The new mother board has four fully regulated power supplies for the mechanism and digital section plus separate supplies for the display and control PCB. This new system does not require any set-up and thus eliminates aging of the laser control parameters. Superior quality components, carefully laid out on 2 oz copper double sided PCBs ensure full execution of this new design. The D/A board utilises no less than six fully regulated power rails, six high current Op Amps and a custom made super precision crystal for master clock system. Every component has been chosen to enhance performance and reliability. Almost all digital and analogue circuit components have been up rated for lower distortion, lower noise and more dynamic range. The new G eneration Caspian has even tighter and better defined bass, life like open and detailed mid range with much extended yet smoother and clearer top end. These improvements ensure unsurpassed timing, dynamics and sound staging that compliment the new Caspian range. Aesthetics of this new Caspian M SERIES-1CD player coupled with its unparalleled audio performance makes it a must for any high-end system. SPECIFICATIONS Caspian Integrated CD Player Operating System CD digital audio system (CD, CD-R, CD-RW) Frequency Response 20Hz – 20kHz ± 0.2dB Harmonic Distortion < 0.001% @ 0dB, 1kHz (Typically 0.0005%) < 0.006% @ -30dB, 1kHz < 0.01% @ 0dB, 20kHz Intermodulation Distortion < 0.001% @ 0dB (Typically 0.0005%) S/N Ratio (IHF-A Wtd.) 105 dB Wow & Flutter Quartz precision Channel Separation >100 dB @ 1kHz >80 dB @ 20kHz Output Voltage 1.9Vrms Digital Outputs 75 Ohm Coaxial, RCA 110 Ohm Balanced AES/EBU, XLR Optical, Toslink D/A Conversion PCM1730E Advace Segment, Audio-Stereo DAC Resolution/Sampling 24 bits / 192 kHz Oscillation 3 rd Overtone Oscillation Crystal Super precision, custom made Jitter <150 psec (Typically 70 psec) Idle Pattern <-115 dB Stop band Rejection <-78 dB Power Supply x2 high performance low noise toroidal transformers 10 fully regulated power rails Power Source 100V – 120V 50Hz / 60Hz 220V – 240V 50Hz / 60Hz Power Consumption < 15 W Dimension 432 x 330 x 70 (W x D x H) mm 432 x 330 x 80 (including feet) Weight 10Kg
