Rogers variable fm receiver mk2 service manual
This is the 6 pages manual for rogers variable fm receiver mk2 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from rogers variable fm receiver mk2 service manual (Ocr-read)
Page 2

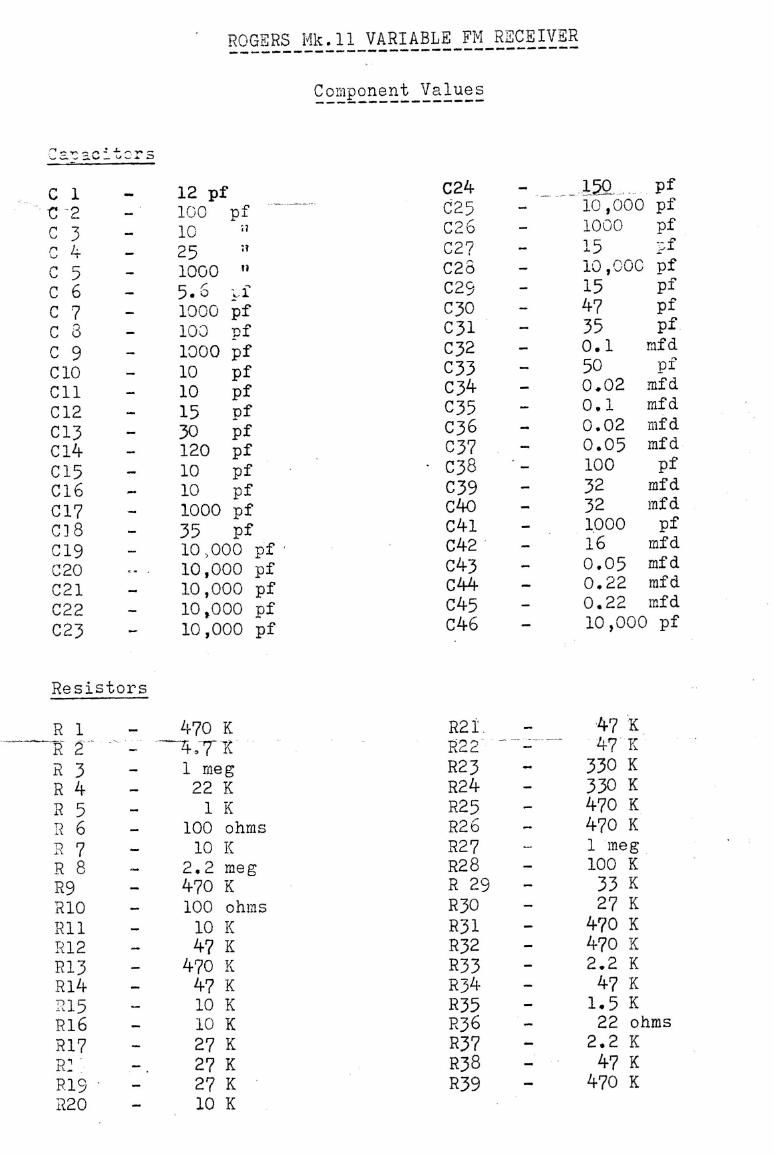

Mk.11 Variable FM Receiver
Component Values .........
Potentiometers
RVl - 100K ) ,
) Pre-set Potentiometers
RVZ - 100K )
Riel Lambs
LPl & LPT 6.3V @ .11 amp M.E.S. type
Rectifiiggg
MR - Contact cooled. Siemens E250 C50
MR2, MR3, MR4, MR5 - OA79
318.8
F1 n 1 amp (contained inside voltage selector)
Switches
SW1 - Single Pole ON/OFF
SW2 - Double Pole 3~way
yglves
V1 - ECCBS
T2,},4,5 EF 94
V6 - ECC83
V7 - ' EM 8?
ROGERS DEVELOPMENTS (Electronics) LTD.
"Rodevco Works", 4-14, Barmeston Road, Catford, London, S.E.6.
Teojhonc' HITher Green 7424/43#O Telegrams: Rodevco, London, S.E.6.
