Rogers panthera t75 brochure

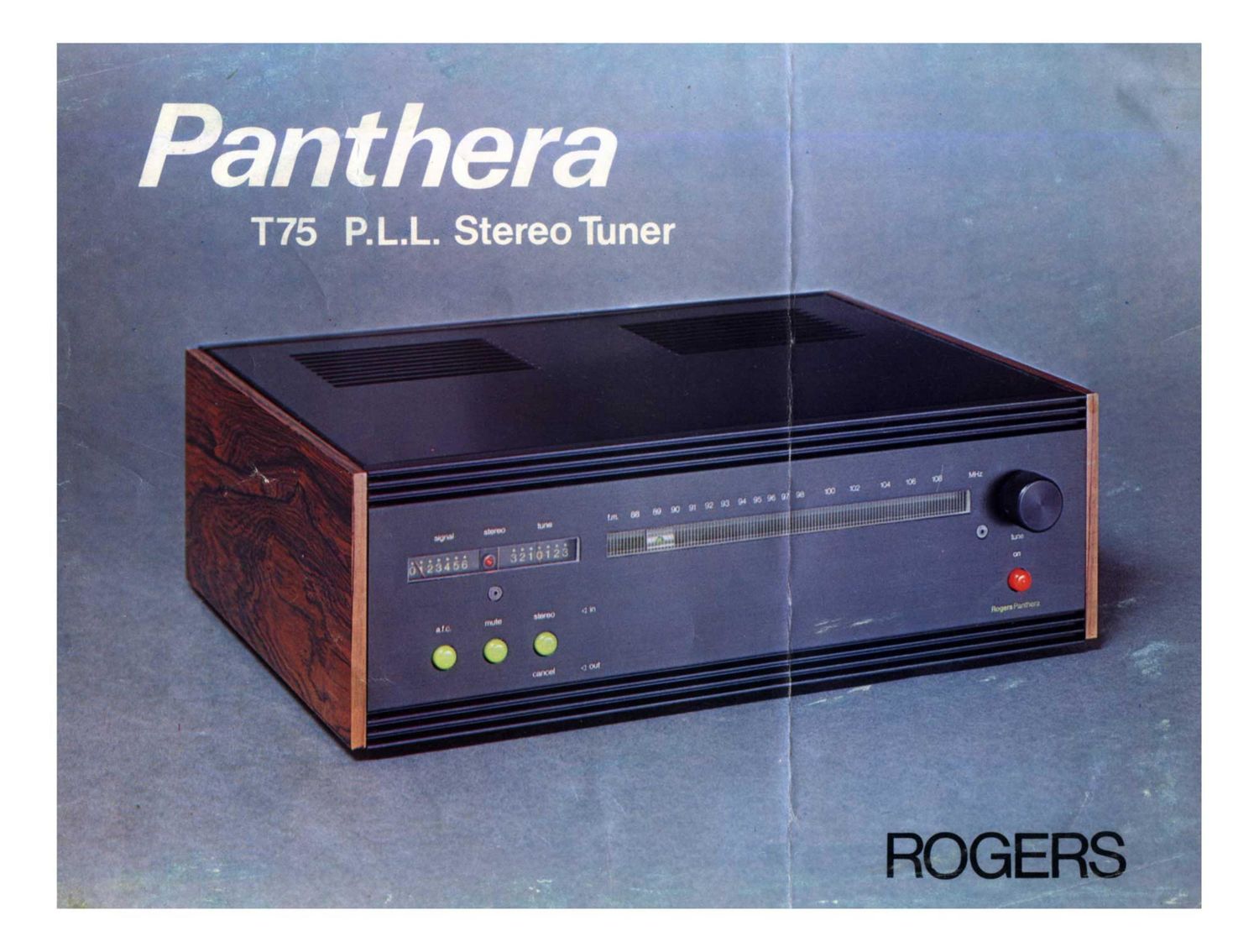

Page 1

T75 .L.L. Stereo Tuner

any!

Page 2

The Panthera T75 Stereo Tuner provides an FM
Tuner of superior specification, styled to match
the Panthera A75 Integrated Stereo Amplifier.

Developed from the respected and proven
Ravensbourne Tuner, the new Panthera Tuner
offers- additional refinements coupled with
predictable precision performance. Circuit
techniques include a 4 gang front end in-
corporating two dual-gate field effect

transistors; dual ceramic IF filters using (C
techniques; a quadrature detector; a high per-
formance phase lock loop stereo decoder; a
stereo beacon employing L.E.D.; switched
inter-station noise and A.F.C. circuits; and a
fully stabilised power supply.

The unit features sockets enabling connection
of either 75 ohm or 300 ohm aerials with the

additional facility of a local/ distant switch pre-
venting overload in areas of exceptionally
high signal strength. Additional features in-
corporated in the T75 include a mono override
facility on the autorrtatic stereo decoder, dual
output sockets for different DIN connection
configurations, optional interstation noise
muting and signal strength indication.

The logarithmic-law Signal Strength Meter and
the sensitive, accurate, centre zero Tuning
Indicator provide precision indication of operat-
ing conditions and incorporate the red L.E.D.
stereo beacon.

The superb new styling by Murdoch 8 Gibbs
features a black anodised front panel and is

characterised by meticulous attention to detail.
End covers finished in Rosewood are available
as an optional extra.

Construction and wiring follows the usual high
standard which has come to be expected from
ROGERS products. Translucent Fibreglass
printed circuit boards are used throughout
and a remarkably clean and open layout has
been achieved. High quality components, con-
servatively rated, coupled with careful quality
control ensure long term reliability, reflected
in the unconditional one Year Guarantee
covering both materials and labour.

Technical

Basic Sensitivity: 2pV - 20dB Attenuator for
Signals >4mV

Frequency Coverage: 88-108 MHz

l.H.F.M. Usable Sensitivityz2pv

Capture Ratio: 1.5 dB

AM Suppression: 50 dB

l.F. Rejectionz80dB

Signal Strength Meter: Approximately
Logarithmic Law 10pV-10mV; 100pV-100mV
(20 dB Attenuator in use)

Frequency Response: i 1 dB 20 Hz~15KHz

Nominal Output: (30% Modulation) 200 mV @
1 KHz

Total Harmonic Distortion (Mono): 200 mV
O/P,20Hz-15KH2 <0.5%

Signal to Noise Ratio: (Ref. 100% Modulation)
Mono: 68dB; Stereo: 65dB

Sensitivity for 50 dB SIN Ratio Ref. 30%
Mod in Stereo: Approx. 100uV

Stereo Separation: 1 KHz
50Hz-6KHz >25dB

>40 dB;

Output Impedance: Minimum Load

Impedance 50 K 9

The manufacturers reserve the right to alter
specifications without prior notice.

ROGERS products are available only through
appointed Franchised Dealers.

Rogers Developments (Electronics) Limited,

4/14 Barmeston Road, London SE6 3BN
England Telephone: 01 -6978511 (3 lines)

Printed in England by Spice Photos Limited
