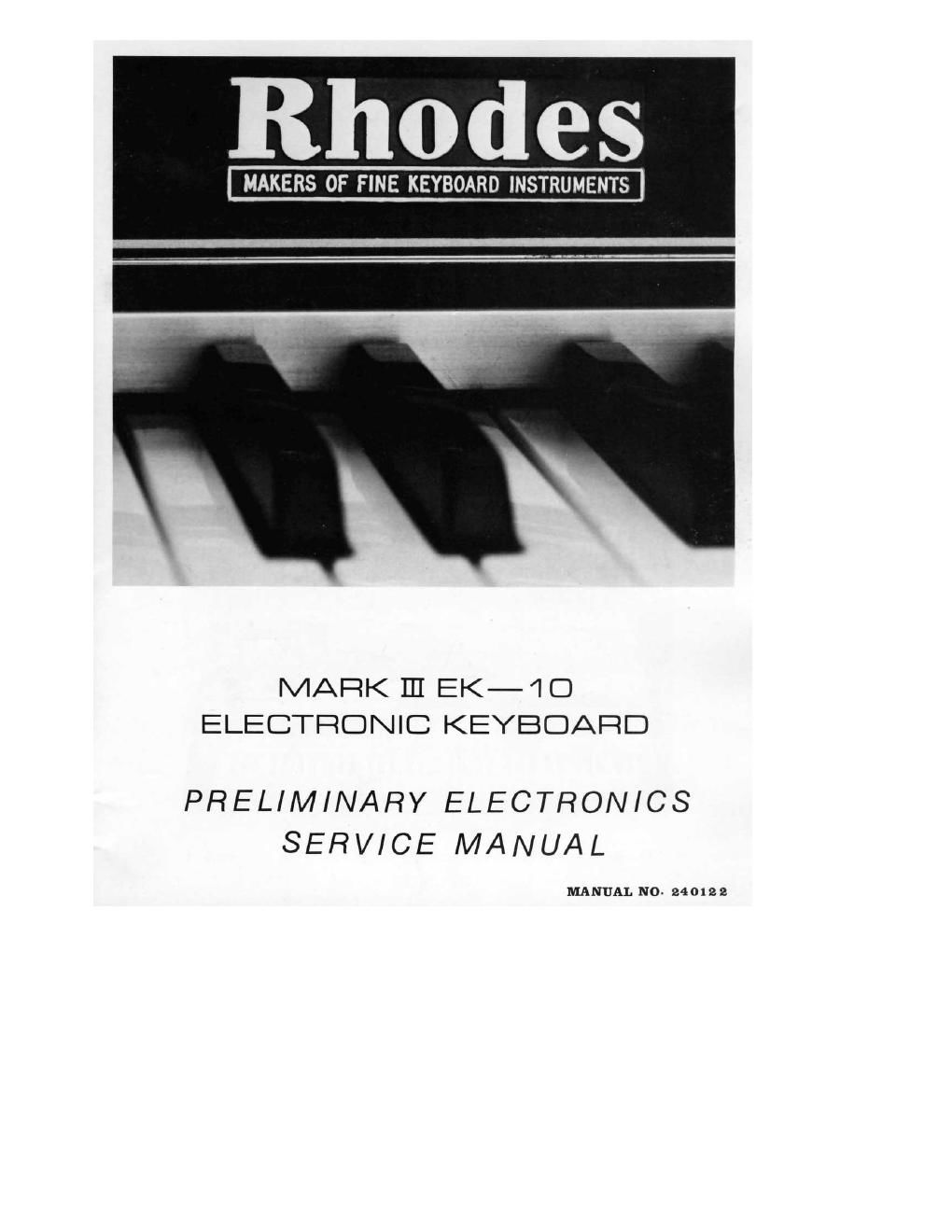

Rhodes mark iii ek 10 service manual
This is the 28 pages manual for rhodes mark iii ek 10 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from rhodes mark iii ek 10 service manual (Ocr-read)
Page 2
RHODES EK-lO OPERATION
The RHODES EK-lO is actually an extension of the standard
RHODES piano.
Figure 1. There are six ribbon cables which carry the signals
from each separate pickup to the six circuit boards that are
mounted on a frame (removed in this photo) above the Tone
Bars. These are identical to the pickups and tone bars on a
standard RHODES, except for the addition of shields between
the pickups. Also shown are the two electronic chassis
mounted to the back of the Namerail. The left chassis contains
the Filter/Output mixing printed circuit board, the right
chassis contains the Tuning/Waveform select printed circuit
board (PCB).
Ribbon Cable
Ribbon Cable
Ribbon Cable
Ribbon Cable
Ribbon Cable
Ribbon Cable
carries signals from all E's and F's.
carries signals from all F#'s and G's.
carries signals from all G#'s and A's.
carries signals from all A#'s and B's.
carries signals from all C's and C#'s.
carries signals from all D's and D#'s.
mmAwNI-I
Figure 1. Left and Right Electronic Chassis on Namerail
-1-
