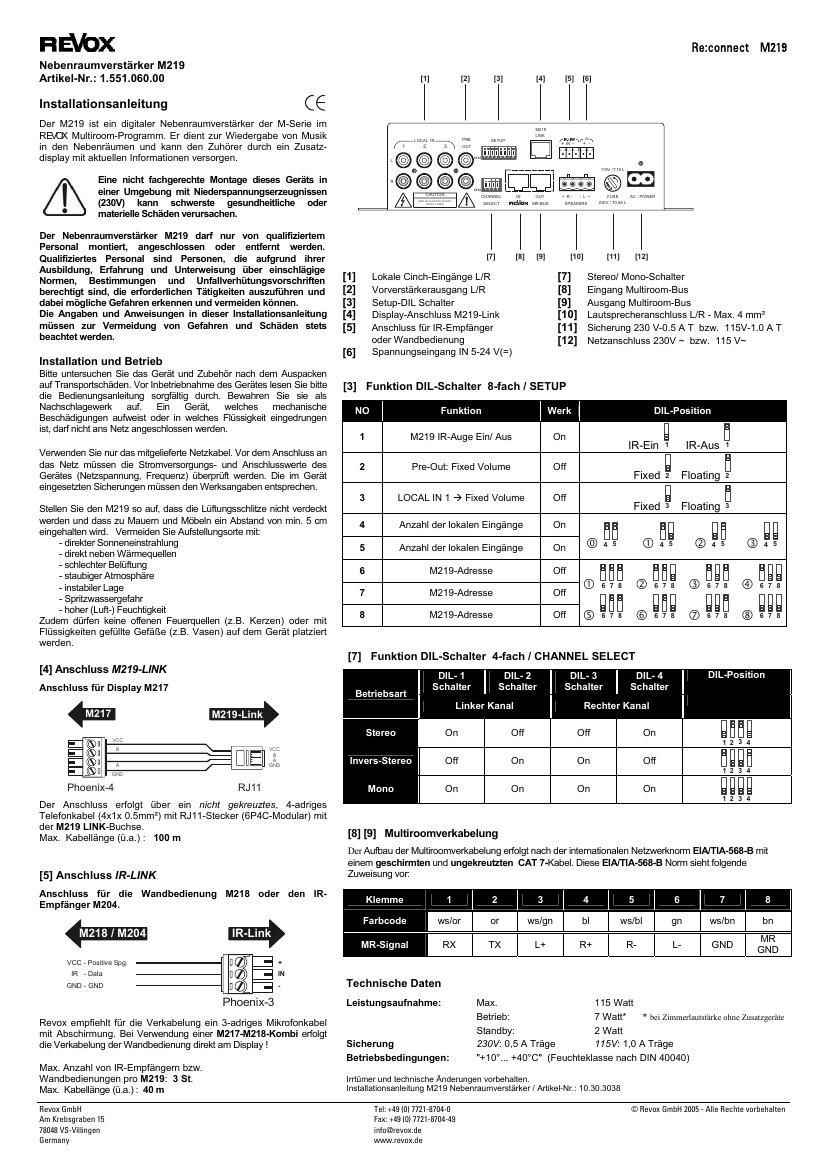

Re:connect M219 Revox GmbH Tel: +49 (0) 7721-8704-0 © Revox GmbH 2005 - Alle Rechte vorbehalten Am Krebsgraben 15 Fax: +49 (0) 7721-8704-49 78048 VS-Villingen info@revox.de Germany www.revox.de Additional room amplifier M219 Article no.: 1.551.060.00 Installation The M219 is a digital Additional Room Amplifier from the M Series of the REVOX Multiroom programme. It is used for the reproduction of music in the additional rooms in a Multiroom system and can also supply the listener with current information through an additional display. A unprofessional assembly of this equipment in an environment with products of low-voltage (230V) can cause heaviest health or material damage. The additional room amplifier M219 may be installed, attached or removed only from qualified personnel. Qualified personnel are persons, who are entitled due to its training, experience and instruction regarding relevant standards, regulations and rules for the prevention of accidents, who can implement necessary activities and recognize and avoid possible dangers. The data and instructions in this installation guide must be considered for the avoidance of dangers and damage. Installation and operation Please check the unit and accessories for any signs of transit damage, once you have unpacked it. Please read the operating instructions carefully before starting to use the unit. Keep the documentation somewhere safe for future reference. If the unit shows any signs of damage or has come into contact with any fluids should not be connected to a power supply. Only use the power cable supplied. Before connecting the power, the power supply and unit connection values (power voltage, frequency) must be checked. The fuse used in the unit must conform to the factory definitions. The M219 should be installed in such a way that the ventilation slots are not covered up and so that there is a gap of at least 5 cm ( ≈ 2 in) between the unit and any walls or furniture. You should avoid installing it in locations where: - there is direct sunlight - it is next to a heat source - there is poor ventilation - there is a lot of dust in the atmosphere - it is unstable - there is a risk of splashing - there is high humidity Furthermore you may not place objects filled with liquids, such as vases, or naked flame sources, such as lighted candles, on the M219. [4] M219-LINK M217- Display connection Connection is made using a straight through (not crossed), 4-core telephone cable (4x1x0.5mm²) with an RJ11 plug (6P4C-Modular) connected to the M219 LINK socket. Max cable length (o.a.) : 100m – 330 ft [5] IR-LINK Connection for the external IR-receiver M204 or the keypad M218. REVOX recommends the use of a 3-core, screened microphone cable. When using a M217-M218-combination the wiring of the keypad takes place directly at the display! Max no. of IR receivers or keypads per M219 is 3. Max cable length (o.a.) : 40m – 133 ft 143 2 56 78 143 2 PRE OUTSETUPM219 LINK CHANNEL SELECTINOUT + R - - L + MR-BUS SPEAKERS230V / T0,5A L11 5V / T 1 A L LOCAL IN L R123 IN IN+-- + FUSE AC - POWER [1] [2] [3] [4] [5] [6] [7] [8] [9] [10] [11] [12] CAUTIONRiSK OF ELECTRIC SH OCK DO NOT OPEN ON ON [1] Local Cinch inputs L/R [2] Preamp outputs L/R [3] DIL setup switches [4] M219-Link display connector [5] IR receiver or keypad connections [6] Voltage trigger IN 5-24 V(=) [7] Stereo/ Mono switch [8] Multiroom b us input [9] Multiroom bus output [10] Speaker connections L/R - Max. 4 mm² - AWG12 [11] Fuse 230 V-0.5 A T resp. 115V-1.0 A T [12] Power connection 230V ~ resp. 115 V~ [3] Function DIL switch 8-fold / SETUP NO Function Factory DIL-Position 1 M219 IR-eye On/ off On IR-On 1 IR-Off 1 : 2 Pre-Out: Fixed Volume Off Fixed 2 Floating 2 3 LOCAL IN 1 Æ Fixed Volume Off Fixed 3 Floating 3 4 Number of local inputs On 5 Number of local inputs On b 45 c 45 d 45 e 45 6 M219-address Off 7 M219-address Off 8 M219-address Off c 6 78 d 6 78 e 6 78 f 6 78 g 6 78 h 6 78 i 6 78 j 6 78 [7] Function DIL switch 4-fold / CHANNEL SELECT DIL- 1 Switch DIL- 2 Switch DIL- 3 Switch DIL- 4 Switch DIL Position Operating mode Left channel Right channel Stereo On Off Off On 143 2 Invers-Stereo Off On On Off 143 2 Mono On On On On 143 2 [8] [9] Multiroom cabling Multiroom cabling uses a CAT 7 cable, in accordance with the international network standard EIA/TIA-568-B. This EIA/TIA-568-B standard provides for the following assignment Clamp 1 2 3 4 5 6 7 8 Colour code wh/or or wh/gn bl wh/bl gn wh/bn bn MR-signal RX TX L+ R+ R- L- GND MR GND Technical Data Power consumption: Max. 115 Watt Operation: 7 Watt* * at room volume without additional devices Standby: 2 Watt Fuse 230V: 0,5A time-lag 115V: 1,0A time-lag Operation conditions: "+10°... +40°C" / +50°…+104°F (Humidity rating acc. DIN 40040) Errors and technical modifications excepted Instruction manual sideroom amplifier M219 / part no.: 10.30.3038 GND GNDA A VCC VCC B B Phoenix-4 RJ11 M219-Link M217 Phoenix-3 - IN GND - GNDIR - Data VCC - Positive Spg. + IR-Link M218 / M204
