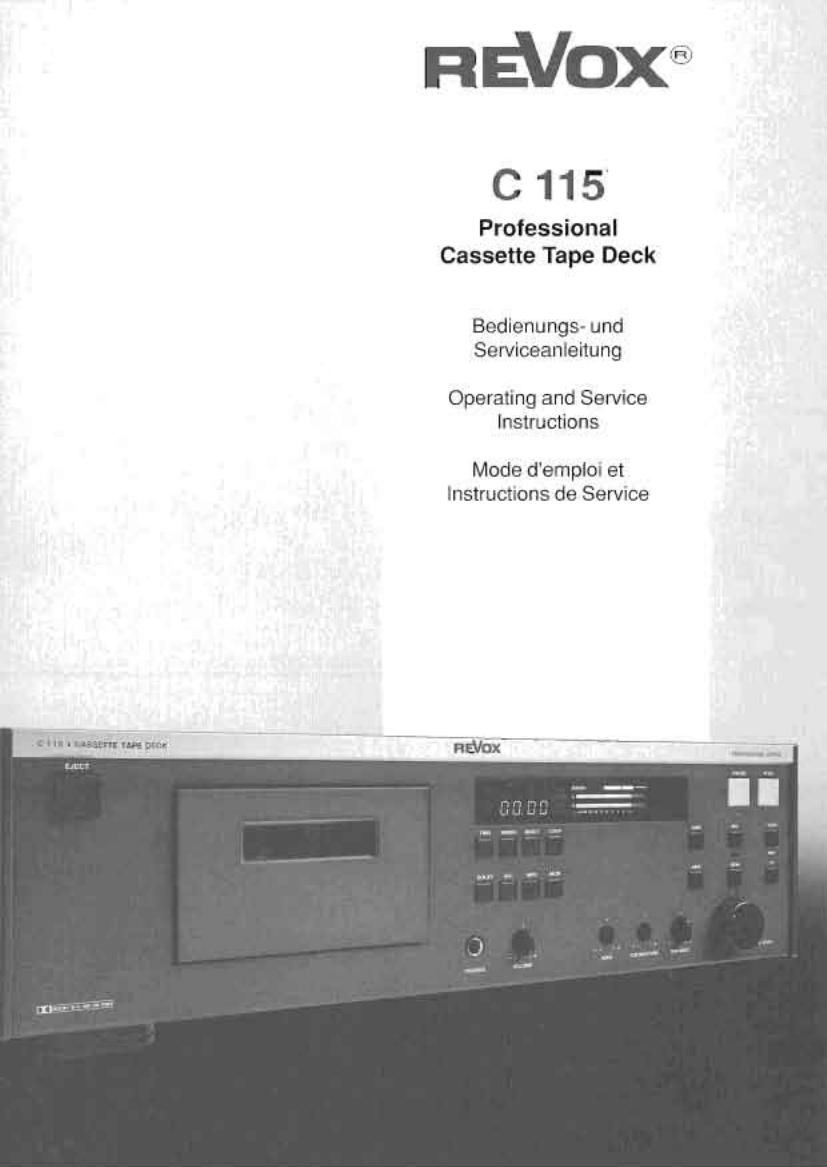

Page 1
eta-Winona
FIEVOXE"
C115
Professional
Cassette Tape Deck
Bedienungs- und
Serviceanleitung
Operating and Service
Instructions
Mode dempiou et
Instructions de Service
Page 2
FIE/OX6 c 115
Serviceanleitung zu Professional Cassette Tape Deck C 115
DEUTSCH 1. BEDIENUNG D2
2. AUSBAU / ZUSAMMENBAU 08
3. FUNKTIONSBESCHREIBUNG D13
4. ABGLEICHANLEITUNG D15
5. TECHNISCHE DATEN 022
Service instruction for C115 professional cassette tape deck recorder
ENGLISH 1. OPERATING INSTRUCTIONS E2
2. ASSEMBLY/DISASSEMBLY E8
3. FUNCTIONAL DESCRIPTION E13
4. ALIGNMENT INSTRUCTION E15
5. TECHNICAL DATA E22
Manuel de service pour Professional Cassette Tape Deck c 115
FRANQAIS ' 1. UTILISATION F2
2. DEMONTAGE/ASSEMBLAGE F8
3. FONCTIONNEMENT F13
4. ALIGNEMENT F15
5. CARACTERISTIQUES TECHNIQUES F22
SCHEMATICS 6.1 PARTS LISTS
6.2 SCHEMATIC DIAGRAMS
Page 41
FIEVOX® 0115 E 17
4.2.2 Tape guidance
1. Check the height of the left-hand tape roller (2) with 0 ° 0
the aid 01 the vemier calipers (1).
2. If necessary, correct the setting with the adjustment : o 03
nut (3). 1 xi; l V n
3. Check the height of the right-hand guide (5) with the f I o
aid of the vemier calipers (1). o O
L o ., 5
4. it necessary, correct the setting with the adjustment 2 -" o = ,o «5 © a
screw (4). 3/ ' Off: ©
4
4.2.3 Adjusting the capstan speed
The capstan speed can be adjusted while the cassette
deck is installed.
1. Insert and play the alignment cassette.
2. To adjust the speed, insert the screwdriver size 00
through the opening at the back of the motor housing
(1) and turn the adjustment element. The speed
should be adjusted within a tolerance of +/- 0.2%.
