Revox B 77 Review
This is the 3 pages manual for Revox B 77 Review.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Revox B 77 Review (Ocr-read)

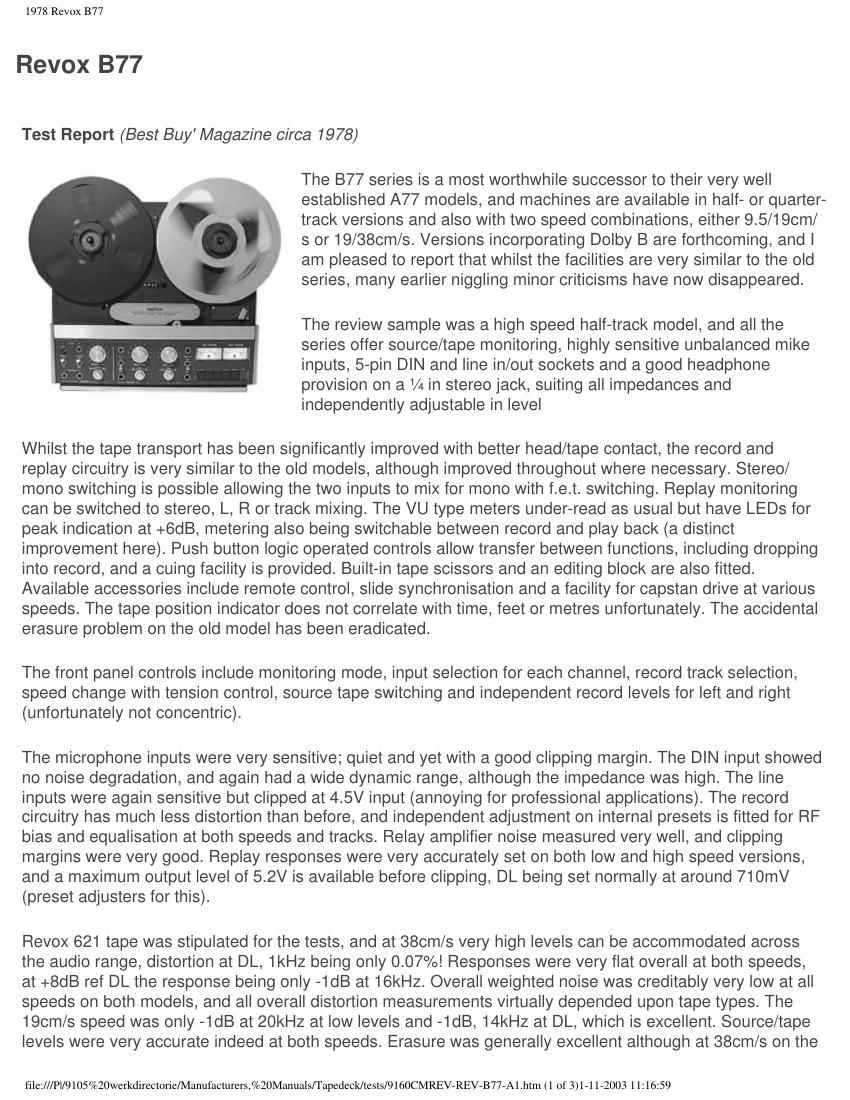

Page 1
1978 Revox B77 right channel the figure was -67.5dB, other figures being better still. \ Whilst stability was very good, phase jitter was average but adequate, crosstalk was very good up to HF, but E\ HF measured 43dB at 15kHz. Wow and flutter measured better with the machine vertical, the figures being\ regarded as good, although 19cm/s measured better still on the low speed version. Speed accuracy was withi\ n 0.15% which is incredible, and spooling was fast for a LP NAB at 2m 12s, and neater than of old. I am very happy to recommend highly both low and high-speed models, alth\ ough it is a pity that each has only two speeds. All presets were set very accurately at the factory, an\ d both models checked were very reliable and much liked ergonomically. Note that variations in mains vol\ tage are accommodated, and 50 or 60Hz mains frequency alternatives present no problem since the motor spe\ ed is electronically controlled. Other variants include speed combinations of 2.4/4.8cm/s, 4.8/9.5cm/sec,\ professional balanced line in/out socket version, and a version incorporating loudspeaker amplifiers and i\ nternal speakers. Almost every version is available as rack mounting or portable. Three forms of slide \ sync having an extra head can be supplied, and a sel-sync model allows one channel to be brought up from \ the record head whilst the other channel is recording for adding a synchronised new track recording. file:///P|/9105%20werkdirectorie/Manufacturers,%20Manuals/Tapedeck/tests\ /9160CMREV-REV-B77-A1.htm (2 of 3)1-11-2003 11:16:59
Page 2
1978 Revox B77 GENERAL DATA Mike i/p: sens/clipping/noise .................... 250uV/340mV/-60dB Line i/p: sens/clipping .................................... 54mV/4.5V DIN i/p: sens/clipping/impedance ................ -22dB/25dB/20kohm DIN i/p noise ref DL+4dB (CCIR/ARM)...................... -76dB Meter quality................................................ v. good Worst replay hum component......................... -65.5dB [50Hz] Replay hiss (CCIR/ARM ref DL) 9.5/19/38cm/s........ -/-70/-70dB Replay amp clipping (ref DL)/distortion................. +17dB/v. good\ Max line output (DL) ........................................ 710mV Dist point (333Hz 3 3rd MOL ref DL) 9.5/19/38cm/s..................................-/+11.4/+12.7dB Overall noise (CCIR/ARM ref DL) 9.5/19/38cm/s . . ..-/-59/-58.5dB Worst erase Figure.......................................... -67.5dB Overall wow and flutter (DIN) av/worst 19cm/s ......... 0.05%/0.056% 38cm/s ......... 0.03%/0.042% Speed accuracy (worst) -0.15% Approx dimensions (W/H/D). ............................ 45/41/21cm Approx weight................................................. 17kg Approx typical price ........................................... £700\ file:///P|/9105%20werkdirectorie/Manufacturers,%20Manuals/Tapedeck/tests\ /9160CMREV-REV-B77-A1.htm (3 of 3)1-11-2003 11:16:59
