Extracted text from revox B62 brochure (Ocr-read)

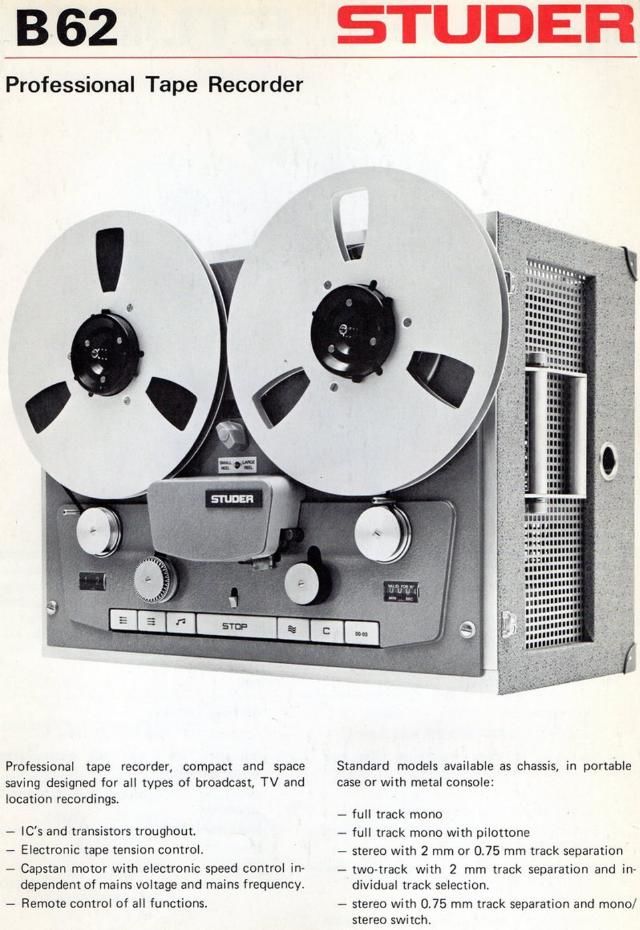

Page 1
B 62 STUDEFI
Professional Tape Recorder
Professional tape recorder. compact and space Standard models available as chassis, in portable
saving designed for all types of broadcast, TV and case or with metal console:
location recordings.
- full track mono
- ICs and transistors troughout - full track mono with pilottone
- Electronic tape tension controlt - stereo with 2 mm or 0.75 mm track separation
- Capstan motor with electronic speed control in _ two-track with 2 mm track separation and in-
dependent of mains voltage and mains frequency. dividual track selection,
- Remote control of all functions. - stereo with 0.75 mm track separation and mono/
stereo switch.
Page 2
362 -TVU
STUDEFI
The version with a VU-meter control panel,
type 862~TVU1 has been developed for installations
where extensive operational control is required.
The control panel contains:
- VU-rneters
- RECORD and REPRODUCE level controls
- switching of meters before or after tape
(lNPUT-REPRODUCE switch)
- safeguard against inadvertent erasure
(SAFE-READY switches)
- facility to terminate the output with 600 ohm
(TERMINATION ON-OFF)
facility to calibrate VU-meters for line level
(for NAB operating level)
+ 4 dBm, + 6 dBm, + 8 dBm.
- for pilottone machines the panel can contain
a complete follow-up system.
The panel is built basically according to American
practice and is therefore suited especially to users
who work to NAB standards
Versions:
- full track 1/4 -tape
- full track 1/ " -tape with pilottone
- full track 1/ " -tape with pilottone and
follow-up system
- stereo l/ " -tape with 0.75 or 2 mm track
separation
- two track 1/ " -tape with 2 mm track
separation
