Revox Agora B Slimline Mk2 Service Manual
This is the 47 pages manual for Revox Agora B Slimline Mk2 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Revox Agora B Slimline Mk2 Service Manual (Ocr-read)

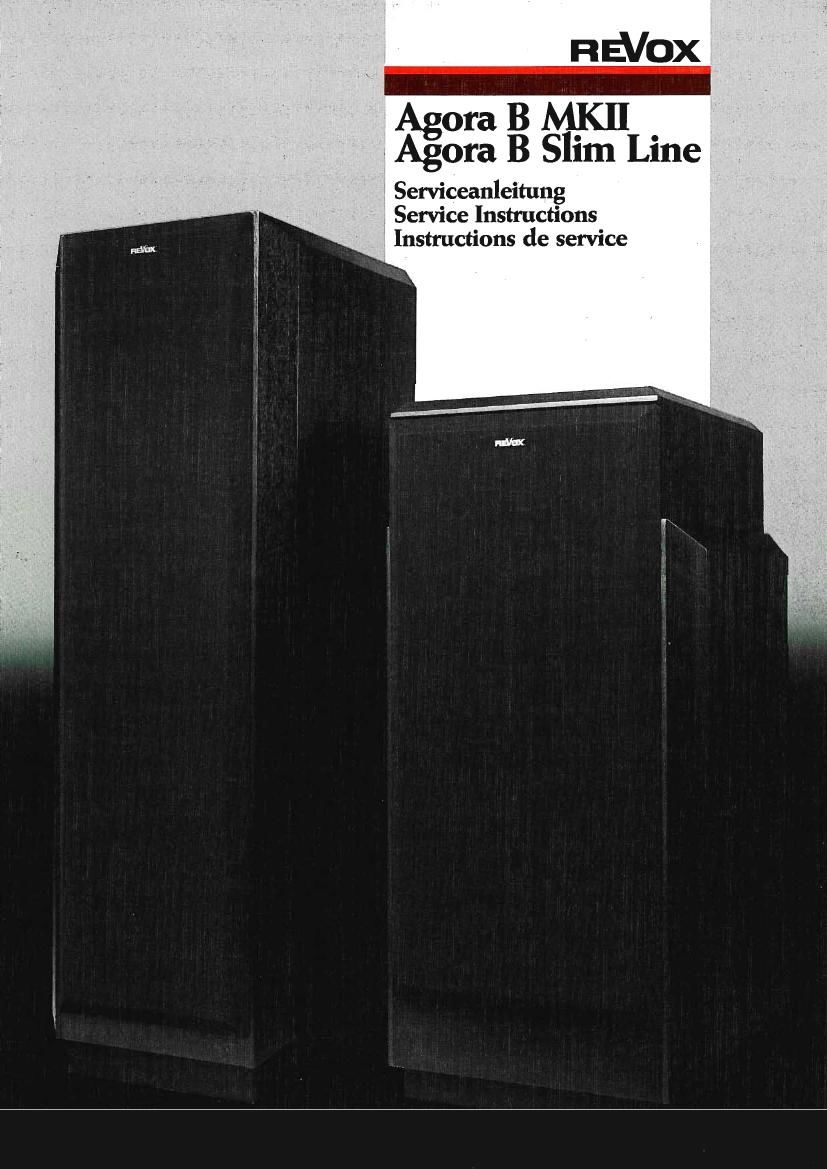

Page 1
REVOX
-
ora B MKII
gore! B Slim Line
Serviceanleitung
Service Instructions
Instructions de service
Page 2
WICH'I'IG:
IMPORTANT:
IMPORTANT:
Votsicht:
Attention:
Warning:
Attenzione:
Precaucidn:
Waalschuwing:
Advarsel:
Huomio:
Forsikfig:
Varning:
Sevicearbeiten diirfen nur vom Fachmann ausgefiihrt werden! Vor dem
entfernen von Gehéiuseteilen und elektronischen Schaltungen muss das
Geréit vom Netz getrennt werden!
Service work should only be performed by authorised service centers! Be
certain to disconnect the power cord before any intervention is done on
the electronic circuits!
Les travaux de service he doivent étre effectués que par le spécialiste!
Veuillez confier les travaux ci-dessous 21 votre revendeur spécialisé!
Das Gerét ist in ausgeschaltetem Zustand (STANDBY) nicht von der Stromzufilhrung
getrennt.
Cet appareil nest pas séparé du réseau lorsquil est déclenché (STANDBY).
This unit is not separated from the mains supply when switched off (STANDBY).
Questo apparecchio non é separato dalla rete quando linterruttore é spento (STAND-
BY).
Este aparato no esté separado de la red cuando esté apagado (STANDBY).
In uitgeschakelde toestand (STANDBY) is het apparaat niet gescheiden van de
netspanning.
Apparaten er ogsaa hvis lukket (STANDBY) under strum.
Huolimatta siitfi, ettéi virtaon katkaistu laitteesta (STANDBY), sita ei ole eristetty
séihkiistéi.
Seivom snommen ikke er pa i apparatet (STANDBY), sa er det ikke skilt fra strom.
Oaktat om strfimmen 'zir avbruten i apparaten (STANDBY) , sa fir den finda kopplad med
strfim.
Page 46
Mechanical Spare parts
AGORA B MKII AGORA B SLIM LINE
1.023.604.20 AF CABLE 12m 1.023.604.20
54.04.0103 MAINS CHASSIS SOCKET 2 POLE 54.04.0103
21.30.2355 Flat Head Screw M3x8 21.30.2355
1.085.382.08 MAINS TRANSFORMER 110/220V 1.085.382.08
1.085.382.16 MAINS TRANSFORMER 240V 1.085.382.16
1.085.410.02 TOP COVER WALNUT DARK ...............
1.085.441.02 TOP COVER PIANO BLACK ---------------
1.085.410.05 FRONT COVER WALNUT DARK 1.085.420.23
1.085.410.06 FRONT COVER PIANO BLACK 1.085.420.25
1.085.504.00 WOOFER LOUDSPEAKER 1.085.504.00
20.27.1430 Chipboard Screw 20.27.1430
1.085.712.00 MIDRANGE LOUDSPEAKER 1.085.712.00
20.27.1429 Chipboard Screw 20.27.1429
1.085.805.00 TWEETER LOUDSPEAKER 1 .085.805.00
20.27.3428 Chipboard Screw 20.27.3428
14 x 20.27.3429 Chipboard Screw Phillips D.4x20 14 x 20.27.3429
