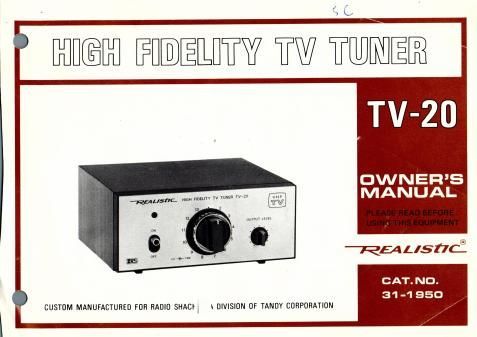

Realistic tv 20 high fidelity tv audio tuner

Page 2

Now you can enjoy TV sound through your hi-fi
system with your new REALISTIC TV»20!

It also enables you to use TV sound as a program
source for recording or playback.

FEATURES INCLUDE:

* IF stage uses a single IC chip, giving high output,
low noise and minimum distortion.

* Fine Tuning knob lets you precisely tune to weak
and distant stations.

* Two types of antenna jacks let you use either 300»
ohm or 75-ohm |ead»in.

* Output level controls match the output of your
TV720 with other signal sources (discs, FM, etc.)
connected to your Amplifier/Receiver.

RADIO SHACK LIMITED WARRANTV

This equipment l5 warraiiteed against defects lo: 2 years from

of purchase Within this period. we mll repair it Without charge lor
parts and labor Simpiy bring your sales slip as wool 06 purchase
date to any Radio Shack store. Warranty does not coveitransnmla

lion Costs Nor does it cover equipment subjected to misuse or
accidental damage,

This Waiianty gives you speciiic Iegai "gm and yml may also have omei
tights which vary imiri state to State

We Service What We Sell

SPECIFICATIONS

Channels

IF Frequency

IHF Sensitivity

S/N ratio (lmV, ch8)

3 dB Limiting Sensitivity
(ch 8)

IF Rejection ratio (ch 8)

Image Rejection ratio
(ch 8)

Distortion (1mV)

AFC Holding Range
(lmV, ch 8)

AM Suppression

Maximum Signal Handling
Capacity

Output level (1mV input,
Level Control at MAX.)

:ch2-ch13

(59.75 w 215.75 MHZ

: 41.25 MHz
: 7.01.1V
: 60 dB

: 3.0;1V
: 45 dB

: 58 dB
: 0.5%

: 500 kHz
: 46 dB

: 200mV

: 1.5V
