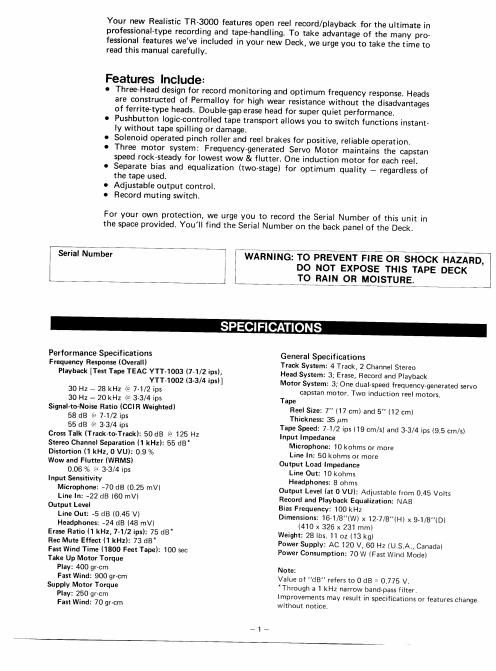

Page 1

Your new Realistic TR-3000 features open reel record/playback for the ultimate in
professional-type recording and tape-handling. To take advantage of the many pro-
fessional features weve included in your new Deck, we urge you to take the time to
read this manual carefully.

Features Include:

o Three-Head design for record monitoring and optimum frequency response. Heads
are constructed of Permalloy for high wear resistance without the disadvantages
of ferrite-type heads. Double~gap erase head for super quiet performance.

0 Pushbutton logic-controlled tape transport allows you to switch functions instant-
ly without tape spilling or damage.

0 Solenoid operated pinch roller and reel brakes for positive, reliable operation.

0 Three motor system: Frequency-generated Servo Motor maintains the capstan
speed rock-steady for lowest wow & flutter. One induction motor for each reel.

I Separate bias and equalization (two-stage) for optimum quality - regardless of
the tape used.

0 Adjustable output control.

0 Record muting switch.

For your own protection, we urge you to record the Serial Number of this unit in
the space provided. Youll find the Serial Number on the back panel of the Deck.

Ream Number rWARNING: To PREVENT FIRE on SHOCK HAZARD,
. DO NOT expose THIS TAPE DECK
( ( TO RAIN on MOISTURE.

ECI FICATI ONS

Performance Specifications General Specifications
Frequency Response (Overall) Track System: 4 Track, 2 Channel Stereo
Playback [Test Tape TEAC YTT-1003 (7-1/2 ipsl, Head System: 3; Erase, Record and Playback
YTT-1002 (3-3/4 ips)] Motor System: 3; One dual-speed frequencygenerated servo
30 Hz 7 28 kHz (U 7-1/2 ips capstan motor. Two induction reel motors.
30 Hz - 20 kHz (Il 3-3/4 ips Tape
Signal-to-Noise Ratio (CCIR Weighted) Reel Size: 7" (17 cm) and 5" (12 cm)
58 dB (M 7-1/2 ips Thickness: 35 pm
55 dB (17 3-3/4 ips Tape Speed: 771/2 ips (19 cm/s) and 3-3/4 ips (9.5 cm/s)
Cross Talk (Track-to-Track): 50 dB (4 125 Hz Input Impedance
Stereo Channel Separation (1 kHz): 55 dB Microphone; 1o kohms or more
Distortion (1 kHz, 0 VU): 0.9 % Line In: 50 kohms or more
Wow and Flutter (WRMS) Output Load impedance
0,06 °/u (U 3-3/4 ips Line Out: 10 kohms
Input Sensitivity Headphones: 8 ohms
Microphone: -70 dB (0.25 mV) Output Level (at 0 VU): Adjustable from 0.45 Volts
Line In: -22 dB (60 mV) Record and Playback Equalization: NAB
Output Level Bias Frequency: 100 kHz
Line Out: «5 dB (0.45 V) Dimensions: 16~1/8"(W) x 12-7/8(H) x 9-1/8(D)
Headphones: -24 dB (48 mV) (410 x 326 x 231mm)
Erase Ratio (1 kHz, 7-1/2 ips): 75 dB Weight: 28 lbs. 11 oz (13 kg)
Rec Mute Effect (1 kHz): 73 dB" Power Supply: AC 120 V, 60 Hz (U.S.A., Canada)
Fast Wind Time (1800 Feet Tape): 100 sec Power Consumption: 70 W (Fast Wind Mode)
Take Up Motor Torque
Play: 400 gr-cm Note:
Fast Wind: 900 gr Supply Motor Torque Through a 1 kHz narrow band-pass filter.
Play: 250 gr-cm Improvements may result in specifications or features change

Fast Wind: 70 gr-cm without notice,
