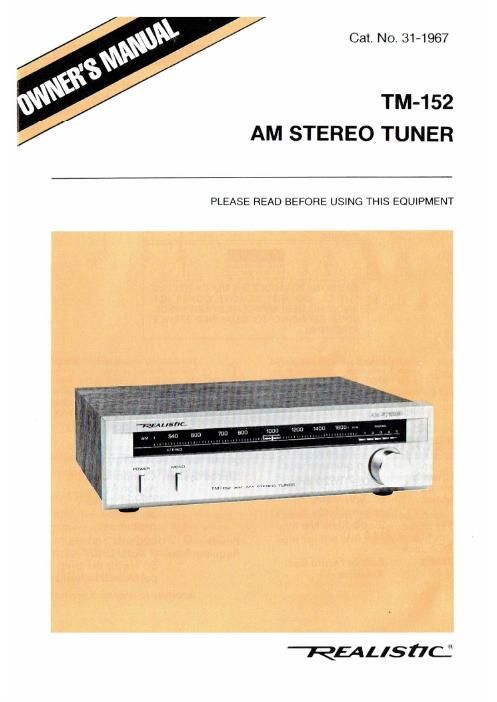

Page 1

Cat. No. 31-1967

TM-152
AM STEREO TUNER

PLEASE READ BEFORE USING THIS EQUIPMENT

72541.1an

Page 2

The TM-152, a mini-sized Tuner,
adds an exciting new dimension to
your hi fi system . . . AM Stereo.
Used with the Stereo Amplifier, Cat.
No. 31-1955, you have a compact
combination for mighty sound. With
matching aluminum front panels
they are harmonious in sight as well
as sound.

Because of its line level outputs, this
unit may also be used with a
preamplifier, or a switching control
center, that has line level or
auxiliary inputs. This means your
TM-152 may be incorporated with
these components in an existing
sound system.

moisture.

EA

-WARNINO: Toireduce theirisli-oiifire or electric

shock, do not expose this appliance to rain or

HI Ill lllllill Hflfl
lJIlil DPIL

CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightning flash with arrowhead
symbol within an equilateral trian-
gle is intended to alert the user to
the presence of uninsulated dan-
gerous voltage" within the product's

/fi

The exclamation pointwithinanequi-
lateral triangle is intended to alert
the user to the presence of impor-
tant operating and maintenance
(servicing) instructions in the litera-
ture accompanying the appliance.

A:

enclosure.

SPECIFICATIONS
Frequency 520 _ 1620 kHz Stereo System Compatible with
Coverage Motorola C-
Sensitivity 650pV/Meter Quam stereo-

nominal for encoded

20 dB S+ N/N broadcasts
Output Leve' 165 mV Power 120v AC, 60 Hz,
at RCA JOCk . . _ Requirements 7watts (240V AC,
Antenna Buult-In Ferrite Bar 50 Hz for the Unit

Antenna

purchased in Aust.)
