Realistic sta 2080 service manual
This is the 121 pages manual for realistic sta 2080 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from realistic sta 2080 service manual (Ocr-read)
Page 2
:1 CONTENTS (:3
Page
1) ELECTRICAL PERFORMANCE SPECIFICATIONS ........................ 3 - 5

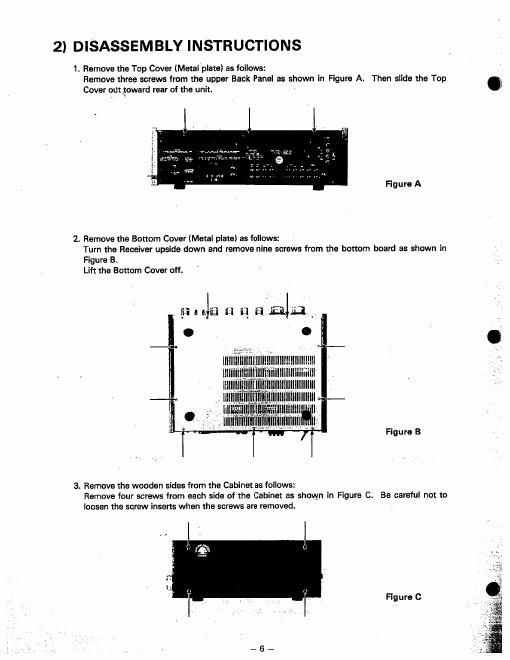

2) DISASSEMBLY INSTRUCTIONS ...................................... 6 - 7
3) BLOCK DIAGRAM ....................................................... 8
4) DIAL STRINGING DIAGRAM ............................................. 9
5) LEVEL DIAGRAM ....................................................... 9
6) OPERATION CHECK FOR CIRCUITS ................................. 10 - 18
7) ALIGNMENT INSTRUCTIONS ...................................... 19 - 23
8) BRIEF DESCRIPTION OF PROTECTOR CIRCUITS ..................... 24 - 25
9) TROUBLESHOOTING .............................................. 26 - 30
10) IC 8. TRANSISTOR LEAD IDENTIFICATION ............................... 31
11) IF 8. TUNER P.C.B. (TOP 8. BOTTOM VIEWS) ........................ 32 - 33
12) PRE AMP P.C.B. (TOP 8- BOTTOM VIEWS) ................................ 34
13) TONE CONTROL P.C.B. (TOP 8- BOTTOM VIEWS) ......................... 35
14) MAIN AMP P.C.B. (LEFT) (TOP 8. BOTTOM VIEWS) ........................ 36
15) MAIN AMP P.C.B. (RIGHT) (TOP 8: BOTTOM VIEWS) ...................... 37
16) PROTECTOR P.C.B. (TOP 8 BOTTOM VIEWS) ............................. 38
17) TAPE P.C.B. (TOP 8. BOTTOM VIEWS) ..................................... 38
18) FUSE P.C.B. (TOP 8. BOTTOM VIEWS) ..................................... 38
19) POWER SUPPLY P. C. B. (TOP & BOTTOM VIEWS) .......................... 39
20) SWITCH P. C. B. (TOP 8. BOTTOM VIEWS) .................................. 4O
21) POWER TRANSISTOR P. C. B. (LEFT 8 RIGHT) (TOP 8 BOTTOM VIEWS) ....... 40
22) LED P. C. 8. (TOP 8- BOTTOM VIEWS) ..................................... 40
23) ELECTRICAL PARTS LIST .......................................... 41 - 48
24) EXPLODED VIEW PARTS LIST ..................................... 49 - 52
' 25) MISCELLANEOUS PARTS LIST .......................................... 52
26) IC INTERNAL DIAGRAM ........................................... 53 - 57
27) VOLTAGE CHART FOR PRE AMP 8 PROTECTOR CIRCUITS .................. 58
28) SCHEMATIC DIAGRAM .................................. SEPARATE SHEET
29) EXPLODED VIEW ........................................ SEPARATE SHEET
