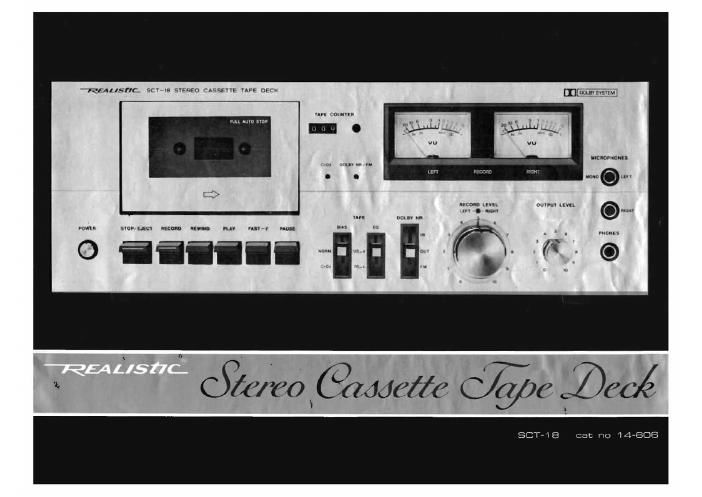

Realistic sct 18 owners manual

Page 2

Your Realistic SGT-18 combines studio-quality recording capabilities with the
most deluxe cassette conveniences. Many of its features have previously been
available only in the most expensive open reel decks. Read this manual care-
fully, so you'll be able to take full advantage of all the special controls and
functions.

Features include:

Dolby' Noise Reduction and Dolby FM Noise Reduction Circuitry

Make and play Dolbyized recordings for reduced his and increased dynamic
range. Special Dolby FM decoder lets you record superb Dolby FM broadcasts
now offered by certain FM stations. (You can listen to the decoded broadcast
simultaneously if your receiver has tape monitoring facilities.)

Separate Blas and Equalization Selectors
So you get the best possible record and playback performance on all the new
tape formulas.

This equipment is-.-.varranteedaga;nst defects (or i year from date
of purchase. Within this period. -.-.-e mi] repair it without charge (or
parts and iabor. Simply bring your sales slip as proof of purchase
date to any Radio Shack store. Warranty does not cover transporta~

tion costs. Nor does it c0ver euurpmerit Subjected to misuse or
accidental damage.

This Warranty gives you spec-tic legal rights and you may also nave other
rights which vary from state to state:

We Service What We Sell

For your own protection, we urge you to record the Serial Number of this unit
in the space provided. You'll find the Serial Number on the back panel of the

' Serial Number:

Tape System:

Tape Speed:

Frequency Response (overall):

Signal-to-Noise (overall):
Distortion:

Cross-talk:

Wow and Flutter:

Erase Ratio:

Output Level (adiustable):

Output Impedance:

Input Sensitivity:

Input Impedance:

Record Bias:
Erase System:

Fast-Forward/Rewind Time:

Power Requirements:

Dimensions:

Weight:

"DOLBY" and DD DDLBY SYSTEM are trademarks of Dolby Laboratories.

SPECIFICATIONS

Standard Philips Cassette 4-track
Stereo

1-7/8 ips (4,75cm/s)

Fe203. 30 to 13.000 Hz (+3 dB)
002. 30 to 14.000 Hz (+3 dB)
Dolby NR in", 59 dB (CCIR)

Less than 1.5%

Batter than 60 dB

Less than 0.12% J IS Weighted

60 dB

Preamp out = 0.7 volts

DIN = 0.7 volts

Headphone = 49 mV

Preamp out = 50K ohms

DIN = 50K ohms

Headphone = 8 ohms

Mic = 0.3mV

Line In = IDOmV

DIN = 0.1 mV/K

Suitable Microphone Impedance -
500 7 5K ohms

Line In = 45K ohms

105 kHz

105 kHl AC erase

Less than 100 seconds for one side
of a 60minute tape.

AC I20V, 60 Hz (USA,

CANADA)

AC 220/240V. 50/60 Hz (Europe)
AC 240, 50 Hz (Australia)

AC 100, 50/60 Hz (Japan)
5-7/8"(H) x 15-3/8"(W) x 9-3/8"(D)
(14.9 x 39.0 x 23.7 cm)

10 lbs, 4 oz (4.7 kg)

Manufactured under licence from Dolby Laboratories.

/
