LAB-2200

LINEAR TRACKING DIRECT
DRIVE AUTOMATIC TURNTABLE

PLEASE READ BEFORE USING THIS EQUIPMENT

3L:-

"--' -' .... new: mull,"

WEALISUCE

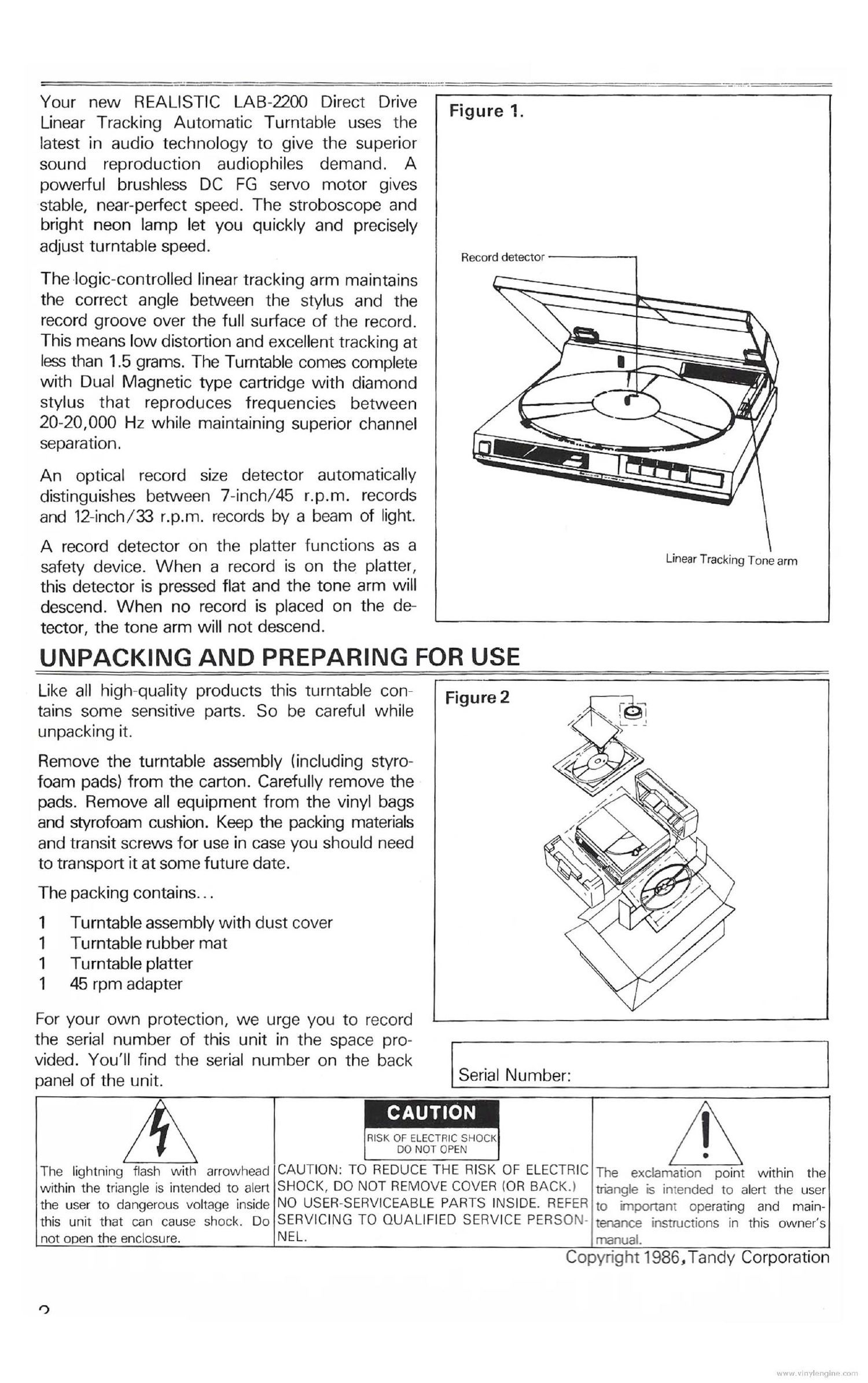

Page 2

Linear Tracking Automatic Turntable uses the
latest in audio technology to give the superior
sound reproduction audiOphiles demand. A I
powerful brushless DC FG servo motor gives
stable, near-perfect speed. The stroboscope and I
bright neon lamp let you quickly and precisely
adjust turntable speed.

Your new REALISTIC LAB-2200 Direct Drive lrFigure 1.

Record detector

The logic-controlled linear tracking arm maintains
the correct angle between the stylus and the
record groove over the full surface of the record.
This means low distortion and excellent tracking at
less than 1.5 grams. The Turntable comes complete I
with Dual Magnetic type cartridge with diamond
stylus that reproduces frequencies between
20-20,000 Hz while maintaining superior channel
separation. l

An optical record size detector automatically I
distinguishes between 7-inch/45 r.p.m. records |
and 12-inch/ 33 rpm. records by a beam of light.

A record detector on the platter functions as a

safety device. When a record is on the platter,
this detector is pressed flat and the tone arm will

descend. When no record is placed on the de-
tector, the tone arm will not descend.

UNPACKING AND PREPARING FOR USE

Like all high-quality products this turntable con-
tains some sensitive parts. 80 be careful while
unpacking it.

Linear Tracking Tone arm

F
I Figure 2

Remove the turntable assembly (including styro-
foam pads) from the carton. Carefully remove the
pads. Remove all equipment from the vinyl bags
and styrofoam cushion. Keep the packing materials L
and transit screws for use in case you should need
to transport it at some future date. I

The packing contains...

1 Turntable assembly with dust cover
1 Turntable rubber mat

1 Turntable platter

1 45 rpm adapter

For your own protection, we urge you to record
the serial number of this unit in the space pro- - 1 I T T

vided. You'll find the serial number on the back L _
panel of the unit. SBFEI Number:

[ A41 T t

I RISK OF ELECTRIC SHOCK
H DO NOT OPEN

The lightning flash with arrowhead CAUTION: TO REDUCE THE RISK OF ELECTRIC The exclamation point within the
within the triangle is intended to alert SHOCK, DO NOT REMOVE COVER (OR BACK-I triangle is intended to alert the user
Ithe user to dangerous voltage inside NO USER-SERVICEABLE PARTS INSIDE. REFER to important operating and main-
this unit that can cause ShOCk. DO SERVICING TO QUALIFIED SERVICE PERSON tenance instructions in this owner's

Inot open the enclosure. NEL. _ tmanual. _]

COpynght 19§6Jamy Corporatior
