Rane PE 51 Bass Parametric EQ Schematics
This is the 4 pages manual for rane PE 51 Bass Parametric EQ Schematics.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from rane PE 51 Bass Parametric EQ Schematics (Ocr-read)
Page 1

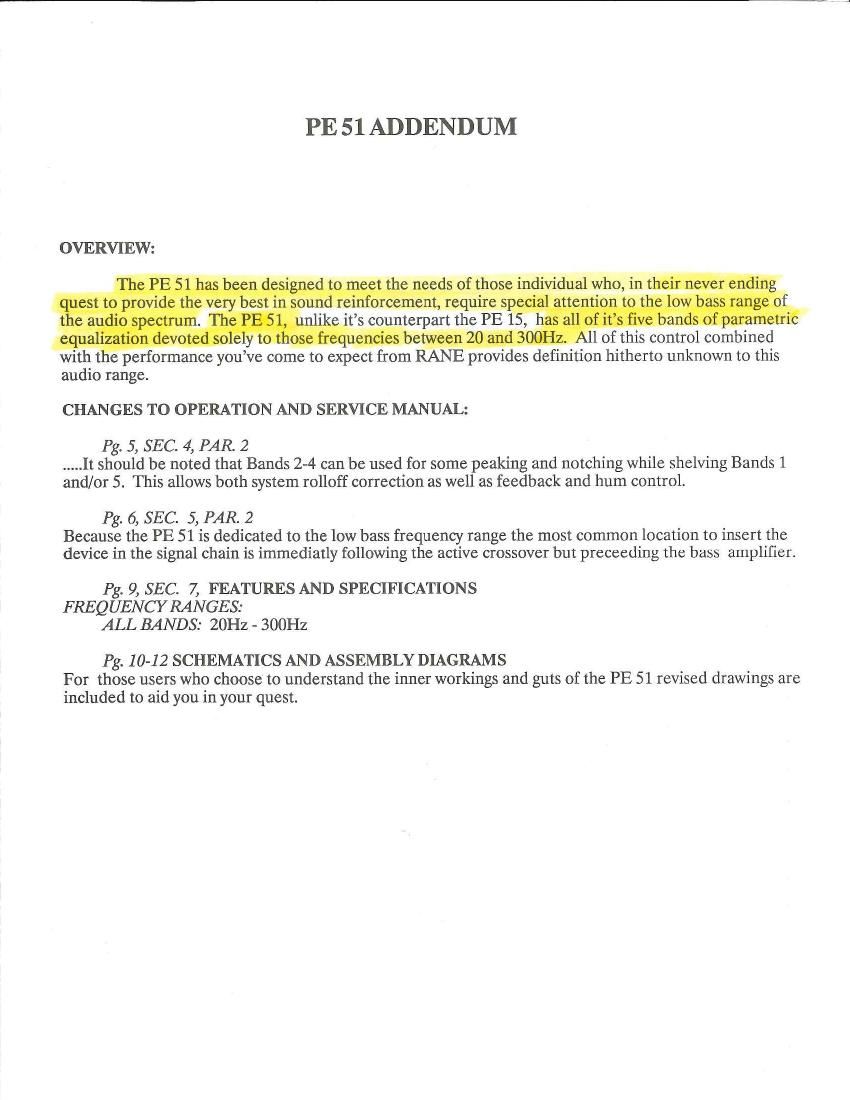

PE 51 ADDENDUM
OVERVIEW:
1 l . . 1 -1l of this control combined
with t e performance youve come to expect from 'U provides definition hitherto unknown to this
audio range.
CHANGES TO OPERATION AND SERVICE MANUAL:
Pg. 5, SEC. 4, PAR. 2
..... It should be noted that Bands 2-4 can be used for some peaking and notching while shelving Bands 1
and/or 5. This allows both system rolloff correction as well as feedback and hum control.
Pg. 6, SEC. 5, PAR. 2
Because the PE 51 is dedicated to the low bass frequency range the most common location to insert the
device in the signal chain is immediatly following the active crossover but preceeding the bass amplifier.
Pg. 9, SEC. 7, FEATURES AND SPECIFICATIONS
FREQUENCY RANGES:
ALL BANDS: 20Hz - 300Hz
Pg. 10-12 SCHEMATICS AND ASSEMBLY DIAGRAMS
For those users who choose to understand the inner workings and guts of the PE 51 revised drawings are
included to aid you in your quest.
