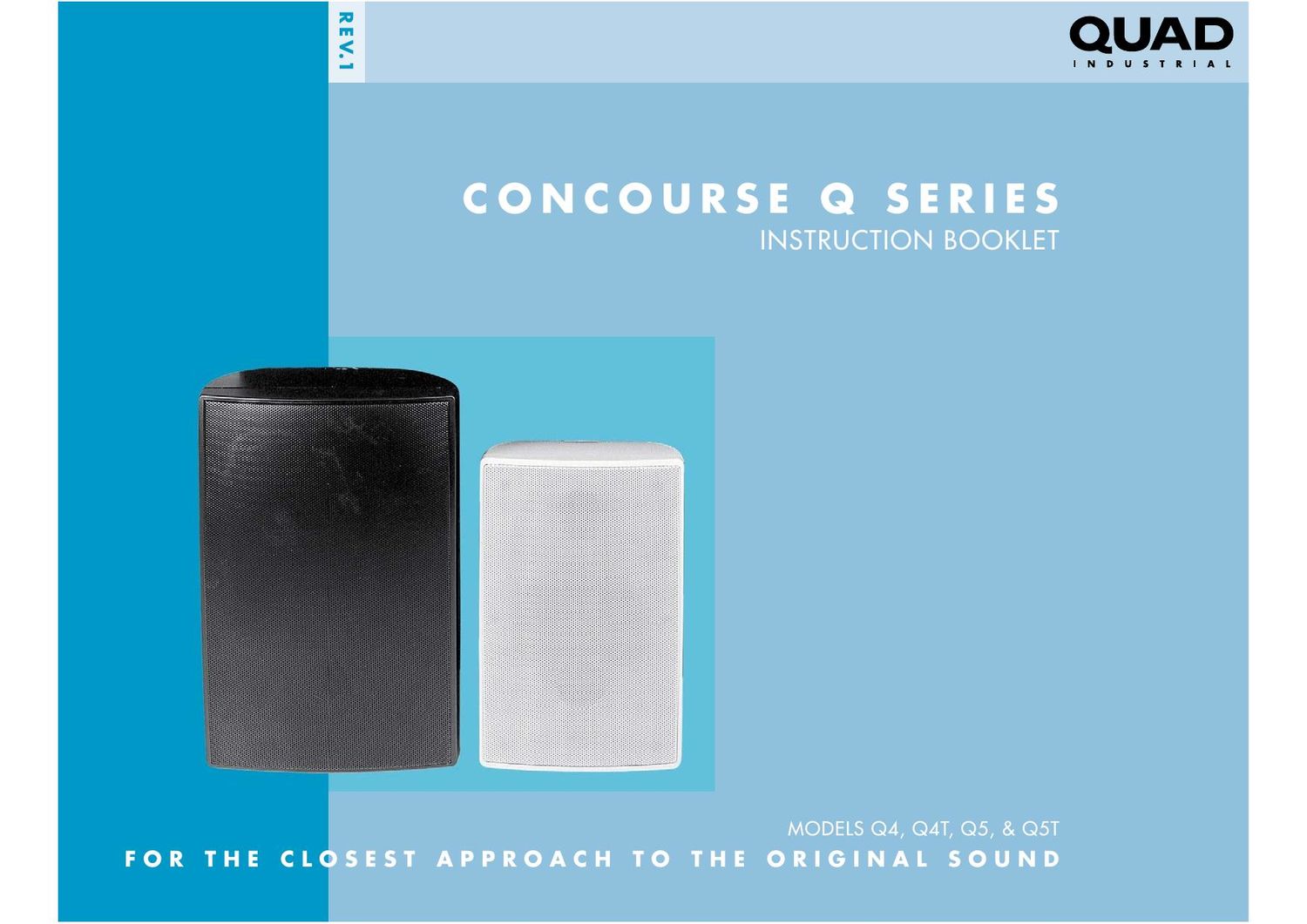

Quad Q4 T Owners Manual
This is the 10 pages manual for Quad Q4 T Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Quad Q4 T Owners Manual (Ocr-read)
Page 1
2 SAFETY INSTRUCTIONS Safety First! 1. Please read this manual fully before installing and operating this product. 2. Retain a copy of this manual for future reference. 3. Comply with all warning labels and instructions. 4. Do not attempt the installation of this equipment unless you are qualified to do so. 5. Protect your hearing from high sound pressure levels. Rigging and Suspension The rigging, suspension or mounting of these products can expose the installer and members of the public to serious health risks and even death. UNDER NO CIRCUMSTANCES ATTEMPT TO RIG, SUSPEND OR OTHERWISE MOUNT THIS EQUIPMENT UNLESS YOU ARE FULLY QUALIFIED AND CERTIFIED TO DO SO BY RELEVANT LOCAL, STATE AND NATIONAL AUTHORITIES. ALL RELEVANT SAFETY REGULATIONS MUST BE FOLLOWED. IF YOU ARE NOT PROPERLY QUALIFIED OR DO NOT KNOW OF PERTINENT REGULATIONS, CONSULT QUALIFIED PERSONNEL FOR ADVICE AND ASSISTANCE. Limited Liability QUAD Industrial assumes no liability whatsoever for any damage or loss, either direct or consequential arising from the installation and use of these products. Liability is limited to replacement of product or refund, at the QUAD Industrials discretion. Your rights to compensation may vary by ter - ritory; consult with your local QUAD Industrial office or distributor. Warranty & Ser vice These products are designed to be used as specified, and are warranted to be free from defects in materials or workmanship. Warranty terms and con - ditions vary by territory. Please contact your local QUAD Industrial sales office or distributor for complete details. Under no circumstances should you attempt to repair these products. Doing so may limit or void warranty coverage. TABLE OF CONTENTS Introduction: Safety Instructions ....................................................................... 02 Introduction ................................................................................ 02 Warnings & Disclaimers .............................................................. 02 Rigging & Suspension ................................................................. 02 Warranty & Service .................................................................... 02 Product Descriptions: Concourse Q4/Q4T.................................................................... 03 Concourse Q5/Q5T.................................................................... 03 Product Features: Back Panel Drawing .................................................................... 03 Accessories ................................................................................ 04 Installation: Installation Instructions ................................................................. 05 Connections: Low Impedance Connections ........................................................ 07 70/100V Connections ................................................................ 07 Impedance Charts ...................................................................... 08 CE Compliance: Statement ................................................................................... 08 Specifications ............................................................................. 09 Contact Information: QUAD Industrial Contact Information ............................BACK COVER
Page 2
3 PRODUCT DESCRIPTION The Concourse Q4(T) and Q5(T) are two-way high performance speaker systems designed for distributed music, paging and speech applications. They combine quality transducers with sophisticated crossover designs in lightweight and durable ABS enclosures and come complete with mounting brackets and hardware. CONCOURSE Q4 The Concourse Q4 is a two-way speaker system consisting of a 4" low frequency driver and a 1" dome tweeter and is supplied with a wall mounting bracket. There are four versions available: - Concourse Q4W – White, 8Ω, 25 Watts - Concourse Q4B – Black, 8Ω, 25 Watts - Concourse Q4TW – White, 15 Watt 70/100 Volt transformer included - Concourse Q4TB – Black, 15 Watt 70/100 Volt transformer included CONCOURSE Q5 The Concourse Q5 is a two-way speaker system consisting of a 5" low frequency driver and a 1" Dome tweeter and is supplied with a wall mounting bracket. There are four versions available: - Concourse Q5W – White, 8Ω, 35 Watts - Concourse Q5B – Black, 8Ω, 35 Watts - Concourse Q5TW – White, 25 Watt 70/100 Volt transformer included - Concourse Q5TB – Black, 25 Watt 70/100 Volt transformer included PRODUCT FEATURES The Q4/Q5 models are fitted with 4 threaded inserts on the rear for attaching the supplied mounting bracket. There are also two threaded inserts to accommodate after-market brackets. Amplifier outputs are is connected to the speaker through a termi- nal strip mounted inside a recessed well on the rear of the speaker. Mounting points for supplied brackets Mounting points for other brackets Input terminals
