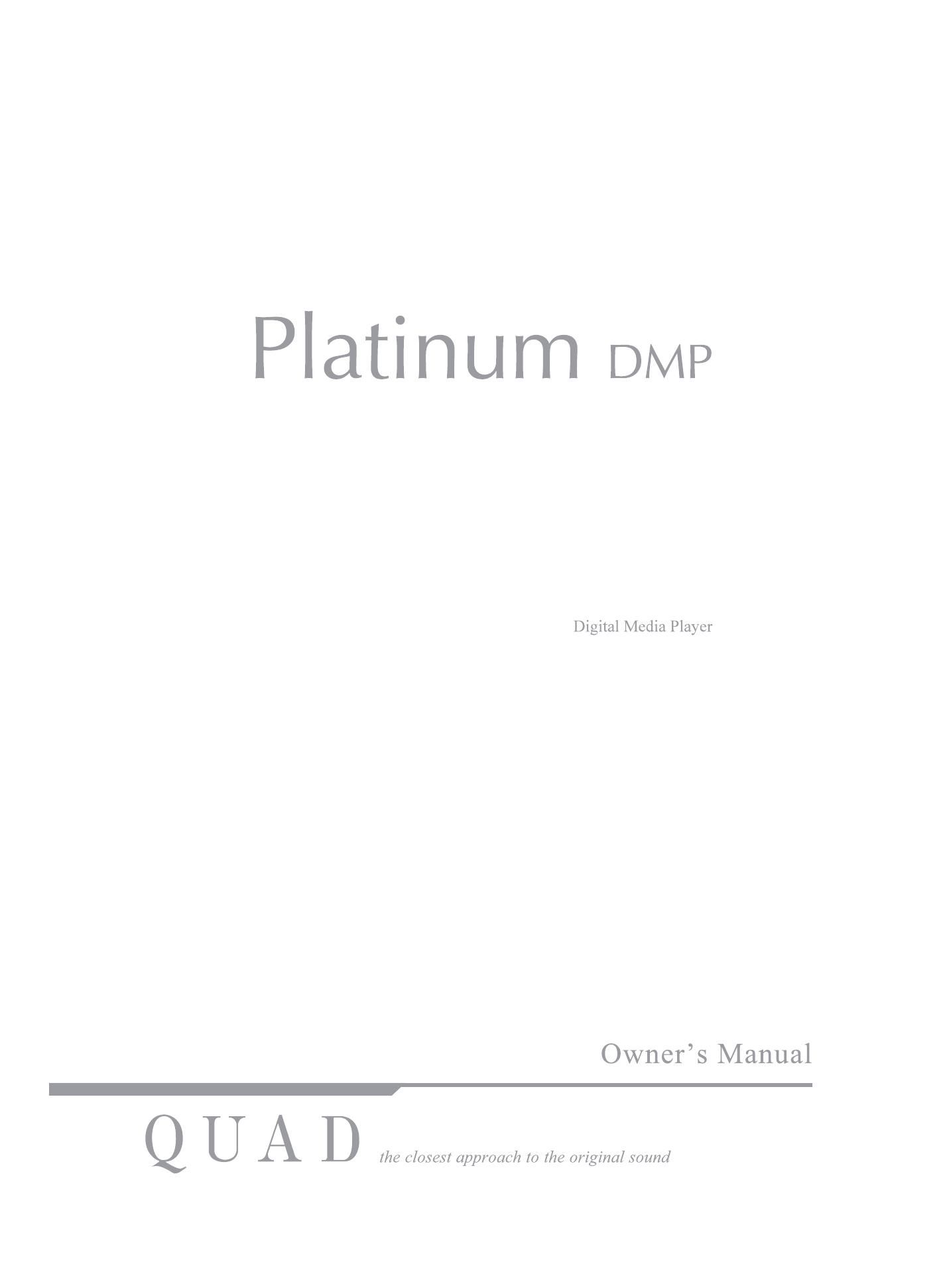

Quad Platinum DMP Owners Manual

Page 1

Platinum DMP

Digital Media Player

Owners Manual

Q U A D the closest approach to the original sound

Page 2

IMPORTANT SAFETY INFORMATION

5 RISK OF ELECTRIC SHOCK
DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (0R BACK)
N0 USER-REMOVEABLE PARTS INSIDE
REFER SERVICING T0 QUALIFIED PERSONNEL

ADVERTISSEMENT: RISOUE DE CHOC ELECTRIOUE-
NE PAS OUVRIR

This symbol indicates that there are important operating
and maintenance instructions in the literature
accompanying this unit.

This symbol indicates that dangerous voltage constituting
a risk of electric shock is present within this unit.

Read these instructions.

Keepthese instructions.

Heedall warnings,

Fallowall instructions.

Da notusethisapparatusnearwater.

Clean only with drycloth.

Do not block any ventilation openings.

Install in accordance with the manufacturers instructions.

Do notinstall near any heatsaurcessuch as radiators, heat registers, stoves, brother
apparatus (including amplifiers) thatpraduce heat.

Do not defeat the safety purpose of the polarized or grounding type plug. A
polarized plug has two blades with one widerthan the other. A grounding type plug
hastwo blades and a third grounding prong. The wider blade or the third prong are
provided for your safety. Ifthe provided plug does not fit into your outlet, consulton
electrician forreplocementofthe obsolete outlet.

Protect the power cord from being walked on or pinched, particularly at plugs,
conveniencereceptacles,andthe pointwhere they exitfromthe apparatus.

Use only attachments/accessories specified by the manufacturer.

ELECTRICAL INFORMATION

MAINS SUPPLY AND SAFETY

Mains Supply: The mains operating voltage of all QUAD
Platinum series units is shown on the rear panel. If this voltage
does not match the mains voltage in your area, consult your
QUAD dealerabout converting the unit.

The mains supply fuse an the rear panel is accessible when the
IEC mains plug has been removed. in the rare event that it has
broken, check for any obvious cause before replacing the fuse
with one of the correct rating and type. The fuse values are:

QUAD Platinum DMP Digital Media Player
220 - 240V (UK, China, etc.) T l ,OAL 20mm Slow Blow
iOO - iQOV (USA, Japan, etc) T 2.0AL 20mm Slow Blow

Note: The means of disconnecting this equipment from the
mains supply is the ON/OFE switch on the rear panel. This
should be freely accessible and operable atoll times.

Use only with a cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid iniury
from tip-over.
Unplug this apparatus during lightning storms or when unused for long periods of
time.
Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
WARNING: Tareducetherislcaffireorelectricalshoclc, donotexposethisproductto
rain or moisture. The productmust not be exposed to dripping and splashing and no
obiectfilled with liquids such as a vase afflowers should be placed on the product.
No nakedflamesaurces such ascandles should be placed onthe product.
CAUTION: Chongesormodificationsnotexpresslyapprovedbythemanufacturer
could void the user'sauthoritytooperatethisdevice.
This equipment has been tested and found to comply with the limits for a Class B
digitial device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation.Thisequipmentgenecates, uses and can radiate radiofrequency energy
and, ifnotinstalled and used in accordancewith the instructions, maycause harmful
interference to radio ortelevision reception, which can be determined by tuning the
equipment off and an, the user is encouraged to try to carrectthe interference by one
or more ofthefollowing measures:
Re-orientate or re-locate the receiving antenna. Increase the separation between
the equipment and the receiver. Connect the equipment into an outlet on a circuit
differentfrom thatto whichthe receiver isconnected.
Consultthe dealer or an experienced radio/TV technician for help.

WARNING: The battery (battery or batteries or battery pack) shall not be exposed
to excessive heat such as sunshine, fire or the like.

WARNING: The mains plug/appliance coupler is used as disconnect device shall
remain readily operable.

CLASS 1
LASER PROD

This equipment is a Class II or double insulated electrical appliance. It
D has been designed in such a way that it does not require a safety
connection to electrical earth.

IMPORTANT NOTICE TO UK USERS
The appliance card is terminated with a UK approved mains plug
fitted with a 5A fuse. If the fuse needs to be replaced, an ASTA or
BSI approved 331 362 fuse rated at 5A must be used. if you need
to change the mains plug, remove the fuse and dispose of this
plug safely immediately after cutting it from the cord.

This label tells you that the unit contains a Laser
component. Opening the unitwill expose the userto
radiation from the laserbeam.

Connecting 0 Mains Plug

The wires in the mains lead are coloured in accordance with the
code: Blue: NEUTRAL Brown: LlVE: Green and Yellow: Earth.
As these colours may not correspond to the coloured markings
identifying the terminals in your plug, proceed as follows:

The BLUE wire must be
connected to the terminal
marked with the letter N or
coloured BLUE or BLACK. The
BROWN wire must be connected
to the terminal marked with the
letter L or coloured BROWN or
RED.
