Quad Electrostatic Loudspeakers Brochure
This is the 12 pages manual for Quad Electrostatic Loudspeakers Brochure.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Quad Electrostatic Loudspeakers Brochure (Ocr-read)

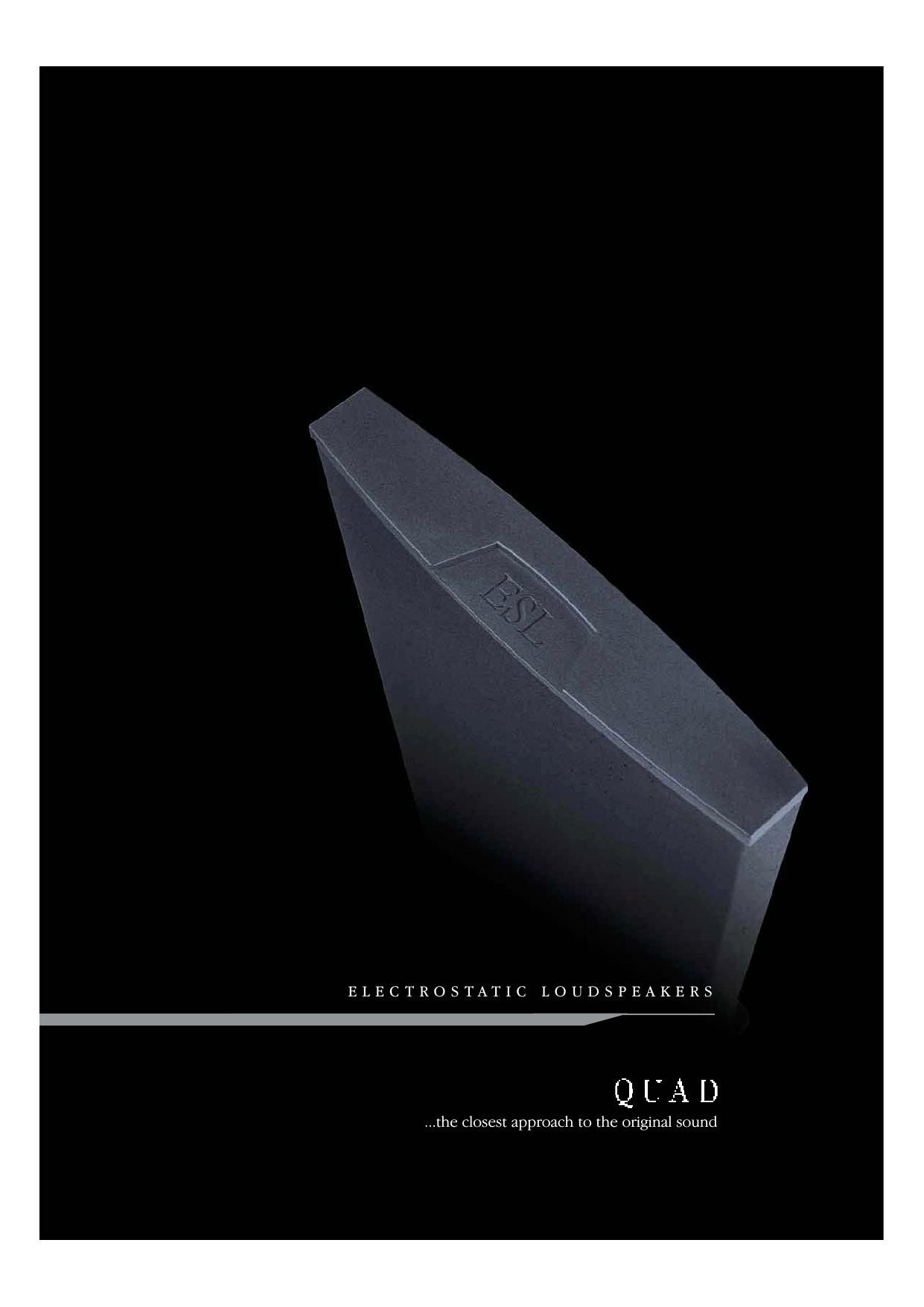

Page 1
The Quad ESL is fundamentally different from conventional loudspeakers and even other electrostatic designs. Whilst most conventional speakers use cone type drive units and a coil moving in a magnetic field, Quad uses the full-range electrostatic principle, first introduced in 1956. The sound is not created by a cone but by a very thin diaphragm, less than one tenth the thickness of a human hair. This ultra-low mass diaphragm is coated with a conductive material and is stretched between two fixed electrode plates. The electrodes carry a positive charge and the diaphragm carries a negative charge. The size of the charge on the electrodes rises and falls to track the waveform of the musical signal; so attracting and repelling the diaphragm closer to and further from the electrode plates. It is the movement of the almost mass-less diaphragm that creates the sound we hear. Quads unique ESL system takes the performance of electrostatic loudspeakers a step further. Acousticians have long recognised that the ideal loudspeaker should be a point source from which the waves of sound radiate in a fashion rather like the ripples resulting from a pebble dropped into a lake. It isobvious that large cones and even larger electrostatic diaphragms cannot be point sources, so how can they be made to behave more like the perfect loudspeaker? Quad solved the problem with an elegant engineering solution that was subsequently awarded a patent. Instead of a large single electrode, Quad designed a number of electrodes arranged as a series of concentric rings. Each electrode is fed with a calibrated delay line so the sound first leaves the centre of the speaker then, after a short delay, the sound leaves the next ring and so on. The delayed sounds build up into a spherical waveform identical to that produced by a theoretical point source. This innovative step brought closer the achievement of the perfect loudspeaker. The Quad ESL is a premiére music reproduction loudspeaker constructed from the finest materials w th meticulous attention to detail. It reaches the pinnacle of high-fidel ty performance with an unparalleled ability to sonically disappear, and create convincing three-dimensional sound stages. Instruments and vocals occupy precise, accurately sized locations in space, giving an uncanny realism to reproduced sound. 2 The Quad A legend in Electrostatic loudspeaker design ESL
Page 2
3 Even if price werent an issue Id be hard pushed to find speakers that better the 988s combination of talents... I cant recommend them too highly Gramophone (March 2001)
Page 11
Quad Electroacoustics Ltd, IAG House, Sovereign Court, Ermine Business Park, Huntingdon, PE29 6XU Tel :- 0845 4580011, Fax :- 01480 431767 www.quad-hifi.co.uk The information in this brochure is subject to change without notice. All rights reserved © 2004 Quad Quad is a member of the International Audio Group Qu.ESL 25.10.2004
