Quad 66 CDP Owners Manual

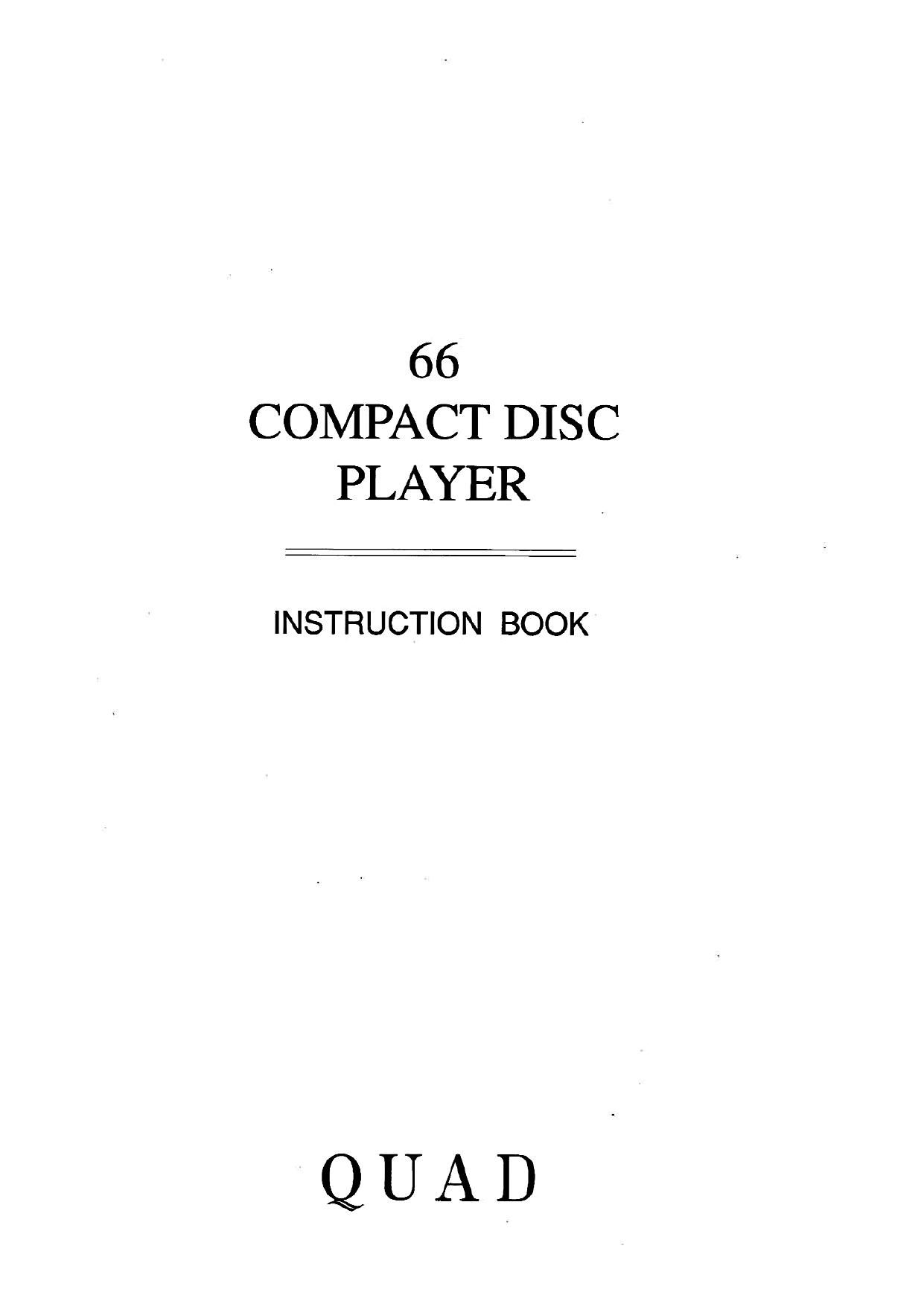

Page 1

66
COMPACT DISC
PLAYER

INSTRUCTION BOOK

QUAD

Page 2

BRIEF OPERATING INSTRUCTIONS

Remove the transit screws.
Plug the AC supply lead and the signal lead supplied
into the quad control unit and the CD player.

Switch on.

Press the drawer button. The drawer compartment
will open.

Place disc. label side up, in drawer compartment.
Gently push front of drawer. It will close by itself.
The disc will now start to play from the beginning.
For full remote control operation and track

programming refer to appropriate section of
the instruction book.

Page 15

DISPLAY INDICATIONS

If:
31' I._I

TIME
7 n
11.: Ll
TRACK

TRACK INDEX

INDEX

ON - As soon as the player is switched on. with the disc
drawer empty, the display flashes briein and then - - - -'
appears continuously.

STANDBY - As soon as the disc drawer is closed - - - -
flashes as a sign that the laser pick-up is scanning the disc.
This keeps flashing until scanning is completed.

PLAYING TIME - When the contents of a disc have been read
the highest track number is indicated together with the total
playing time in minutes and seconds.

PLAY - As soon as play starts the track number and the elapsed
playing time is indicated.

TRACK NUMBER - As play progresses the number of the track
being played is indicated.

ELAPSED PLAYING TIME - During play the elapsed playing time
of the track being played is indicated in minutes and seconds.

13
