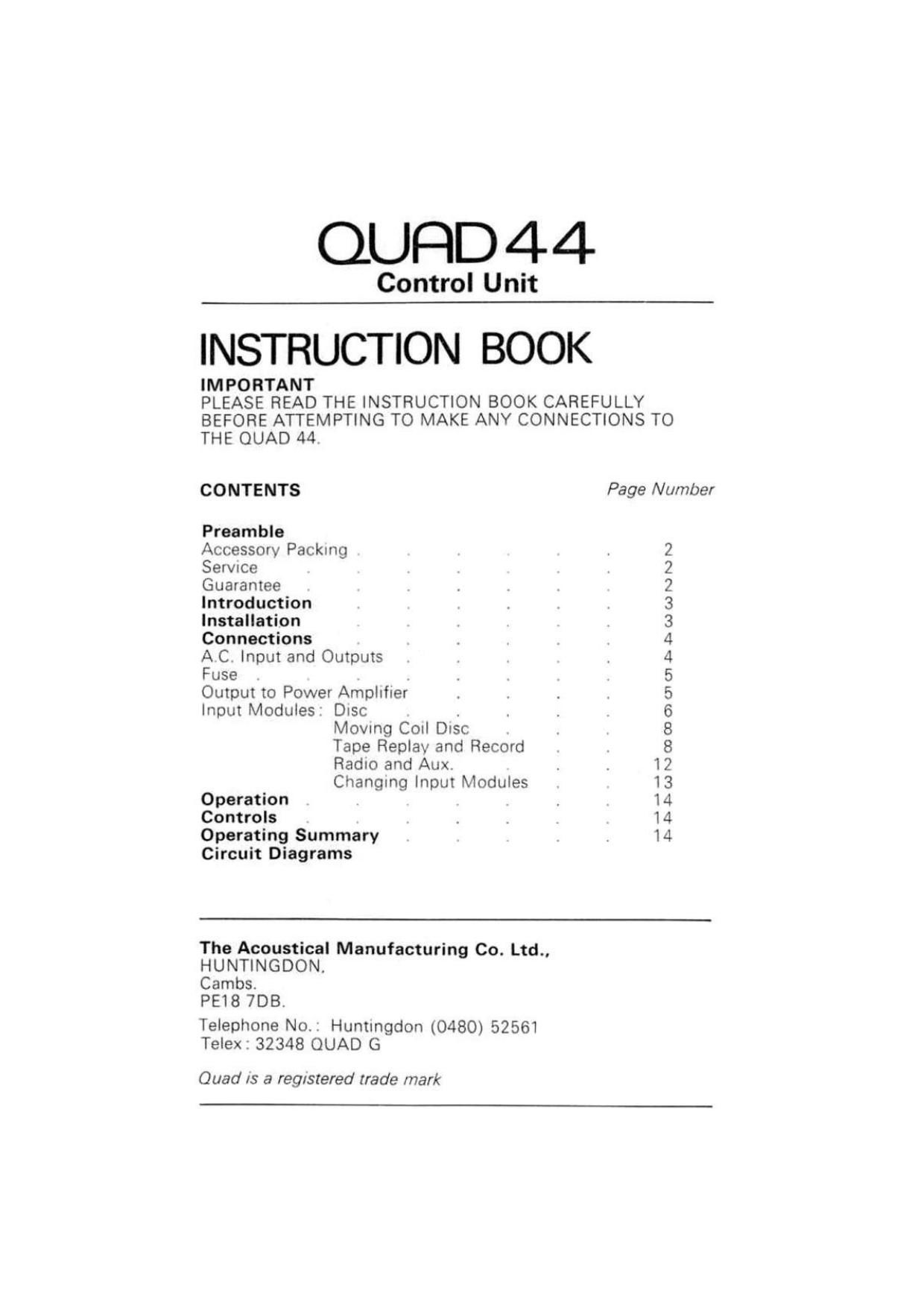

QURD 4 4

Control Unit

INSTRUCTION BOOK

IMPORTANT

PLEASE READ THE INSTRUCTION BOOK CAREFULLY
BEFORE ATTEMPTING TO MAKE ANY CONNECTIONS TO

THE QUAD 44

CONTENTS

Preamble

Accessory Packing

SerVIce

Guarantee

Introduction

Installation

Connections

A C. Input and Outputs

Fuse

Output to Power Amphlner

Input Modules: DISC ,
Movmg COII DISC
Tape Replay and Record
Radio and Aux.
Changmg Input Modules

Operation

Controls

Operating Summary

Circuit Diagrams

Page Number

mmmwmhamwmwm

12

The Acoustical Manufacturing Co. Ltd.,
HUNTINGDON.

Cambs.

PEIS 7084

Telephone No.: Huntmgdon (0480) 52561
Telex: 32348 QUAD G

Ouad IS a registered trade mark

Page 2

Accessory Pack Contents
1 x AC connector (export models AC lead).
1 -: control unit to power amplifier AC lead 2 metres.

1 ~ 4 pin/4 pin Din signal lead 2 metres
2 - 5 pin Din plugs.

2 :-> AC outlet connectors.

Service

If servicing is requ1red the pre~amplifier should be returned to
the supplier. to the distributor for the country 01 purchase or to
the Acoustical Manufacturing Co Ltd. A brief note should be
enclosed giving your name and address plus the reason for
returning It.

IMPORTANT

THE CARDBOARD CARTON AND EXPANDED POLYSTYRENE
PACK SHOULD BE RETAINED IN CASE THE UNIT HAS TO
BE RETURNED TO THE MANUFACTURER 0R DISTRIBUTOR
FOR SERVICE

Guarantee

This pie-amplifier is guaranteed against any defect in material
and workmanship for a period of twelve months from the date
of purchase.

Within this period we undertake to supply replacement parts
tree of charge provuded that failure was not occasroned by
misuse. accident or negligence. Labour and carriage costs are
not covered unless by local agreement.

Within the U K. the guarantee offered With this equrpment
does not limit the consumer's existing statutory rights.
