Quad 44 Owners Manual

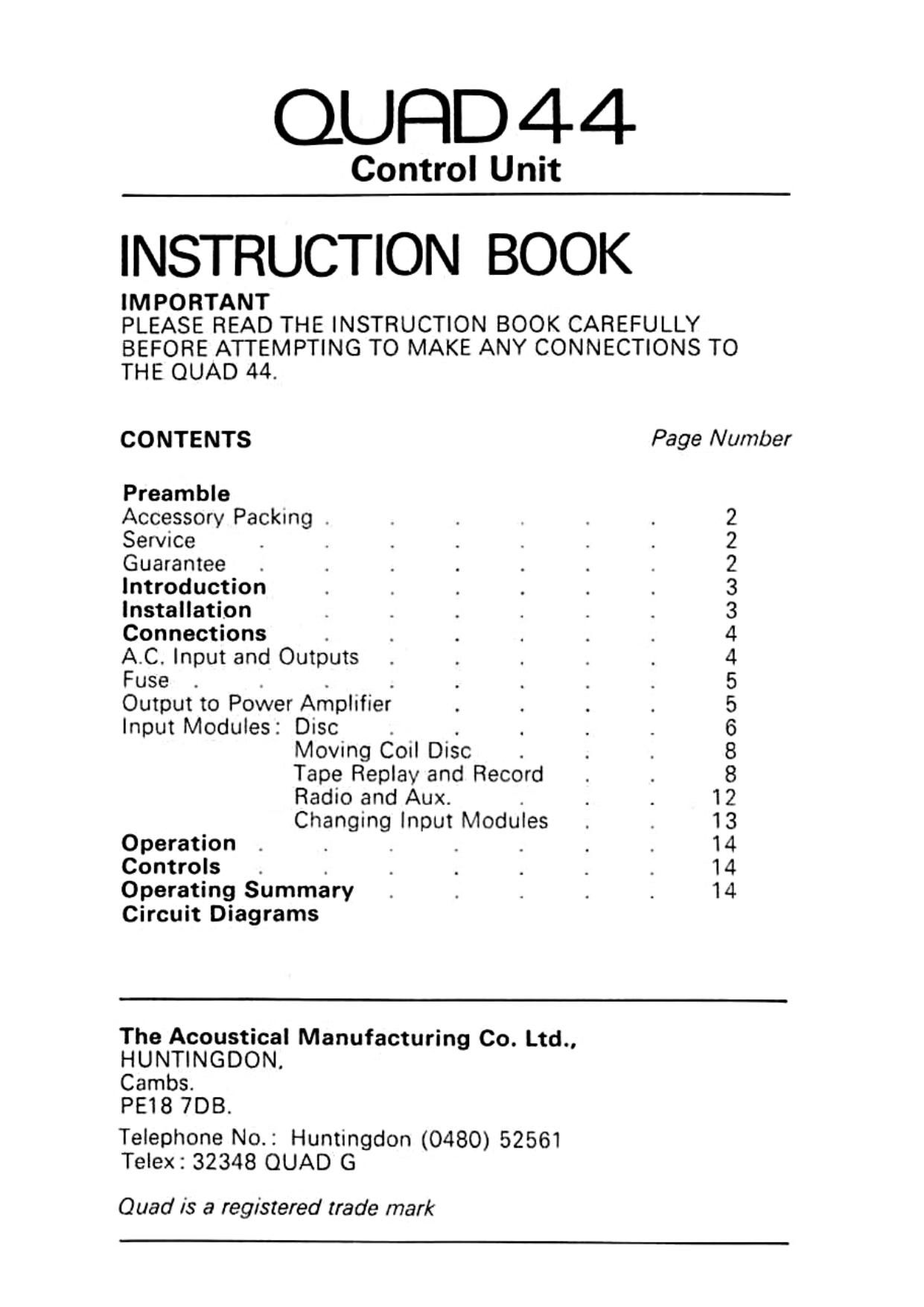

Page 1

QUQD 44

Control Unit

INSTRUCTION BOOK

IMPORTANT

PLEASE READ THE INSTRUCTION BOOK CAREFULLY
BEFORE ATTEMPTING TO MAKE ANY CONNECTIONS TO
THE QUAD 44.

CONTENTS Page Number
Preamble
Accessory Packing . 2
Service , 2
Guarantee . 2
Introduction 3
Installation 3
Connections , 4
AC. Input and Outputs 4
Fuse . . . . 5
Output to Power Amplifier 5
Input Modules: Disc . . 6
Moving Coil Disc . 8
Tape Replay and Record . . 8
Radio and Aux. . . . 12
Changing Input Modules . . 13
Operation . . a . . . . 14
Controls . i . . . . . 14
Operating Summary . . . . . 14

Circuit Diagrams

The Acoustical Manufacturing Co. Ltd.,
HUNTINGDON.

Cambs.

PE18 708.

Telephone No.: Huntingdon (0480) 52561
Telex: 32348 QUAD G

Quad is a registered trade mark

Page 2

Accessory Pack Contents

1 x AC connector (export models AC lead).

1 v. control unit to power amplifier AC lead 2 metres.
1 4 pin/4 pin Din signal lead 2 metres.

2 :-: 5 pin Din plugs. _

2 >: AC outlet connectors.

Service

If servicing is required the pre-amplifier should be returned to
the supplier. to the distributor for the country of purchase or to
the Acoustical Manufacturing Co. Ltd. A brief note should be
enclosed giving your name and address plus the reason for
returning it.

IMPORTANT

THE CARDBOARD CARTON AND EXPANDED POLYSTYRENE
PACK SHOULD BE RETAINED IN CASE THE UNIT HAS TO
BE RETURNED TO THE MANUFACTURER 0R DISTRIBUTOR
FOR SERVICE.

Guarantee

This prevamplifier is guaranteed against any defect in material
and workmanship for a period of twelve months from the date
of purchase.

Within this period we undertake to supply replacement parts
free ot charge provided that failure was not occasioned by
misuse. accident or negligence. Labour and carriage costs are
not covered unless by local agreement.

Within the UK. the guarantee offered With this equipment
does not limit the consumer's existing statutory rights.
